Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 4 illustrations

Illustrations

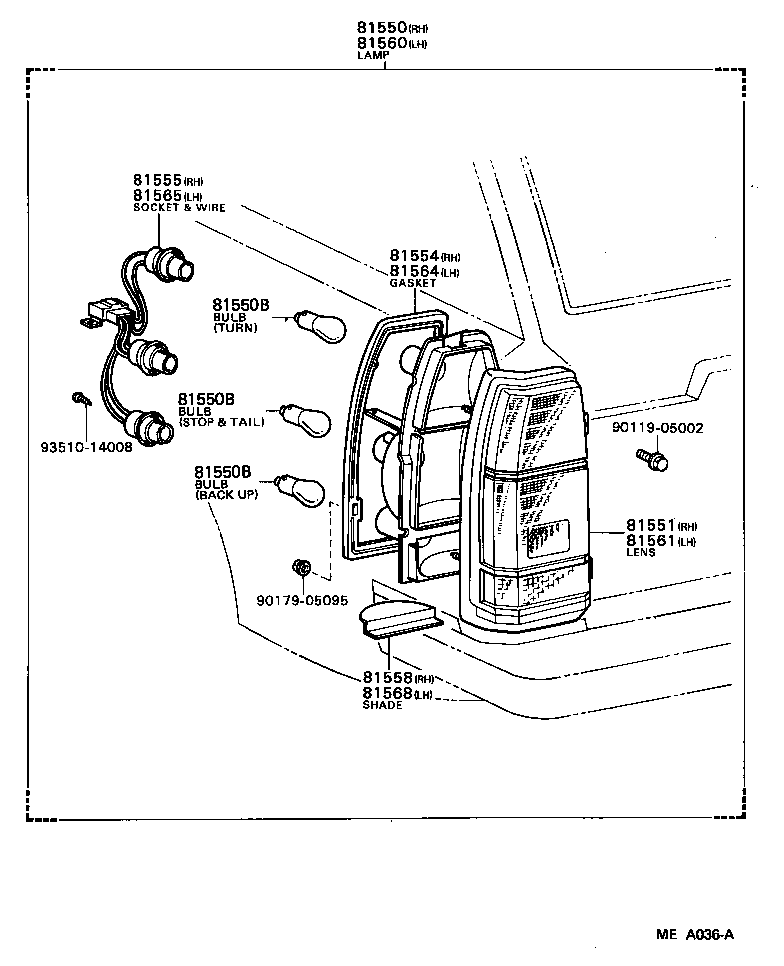

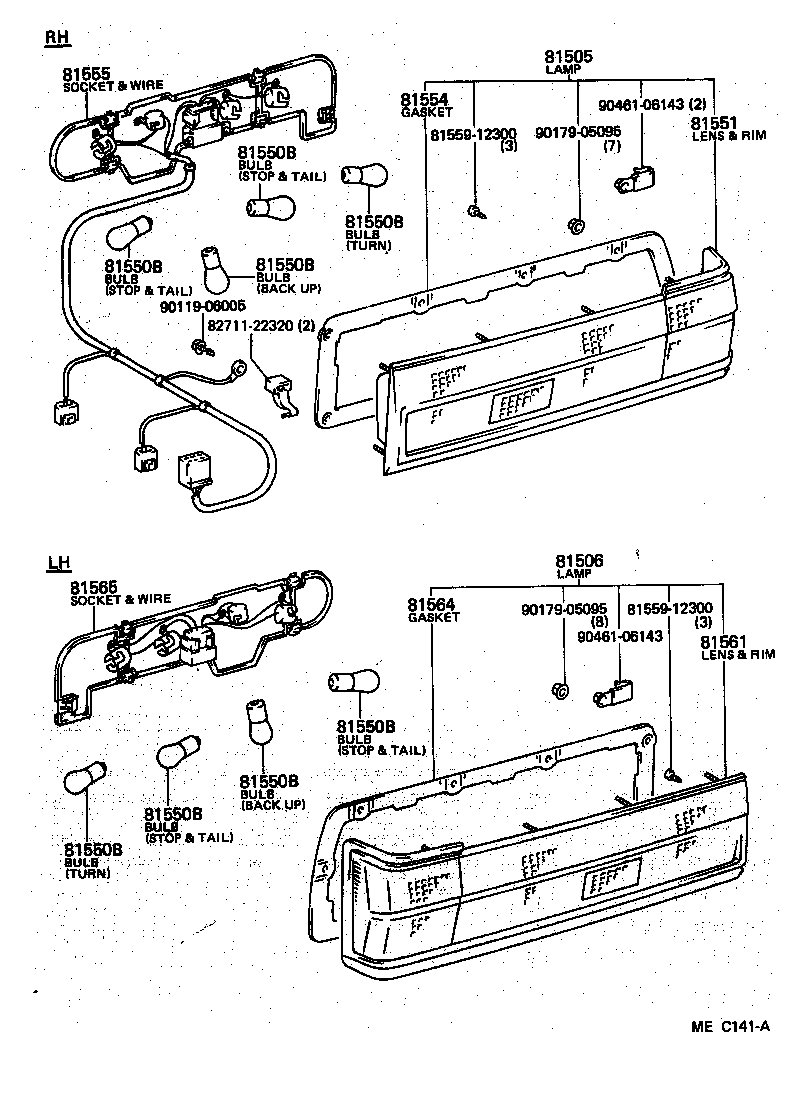

Figure MEA037A MEA037A 1980-09 → 1982-08 Figure MEC141A MEC141A 1982-08 → — Figure MEA036A MEA036A 1980-09 → 1982-08 Figure MEC140A MEC140A 1982-08 → —

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
