Toyota Cressida
1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States
Discontinued model
Data version 1985-03
Wiring & Clamp
43 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82111 | Wire, Engine Room Main |
| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82131 | Wire, Cowl |
| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82161 | Wire, Floor |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82210E | Fusible Link |
| 82216 | Wire, Rear Window Defogger |
| 82310 | Wiring Assy, TO Back UP Lamp Switch |
| 82376 | Wire, Motor Antenna |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82412 | Wire, Fuel Gage |
| 82510 | Wiring Assy, Roof |
| 82521A | Wire, Vanity Lamp |
| 82670 | Block Assy, Junction, NO.1 |
| 82672 | Cover, Junktion Block |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82823 | Cap, Terminal, NO.1 |
| 82823A | Cap, Terminal, NO.2 |
| 82823B | Cap, Terminal, NO.3 |
| 82823C | Cap, Terminal, NO.4 |
| 82823E | Cap, Terminal, NO.5 |
| 82826 | Cover, Wiring Harness Hole |
| 82826A | Cover, Wiring Harness Hole, NO.2 |

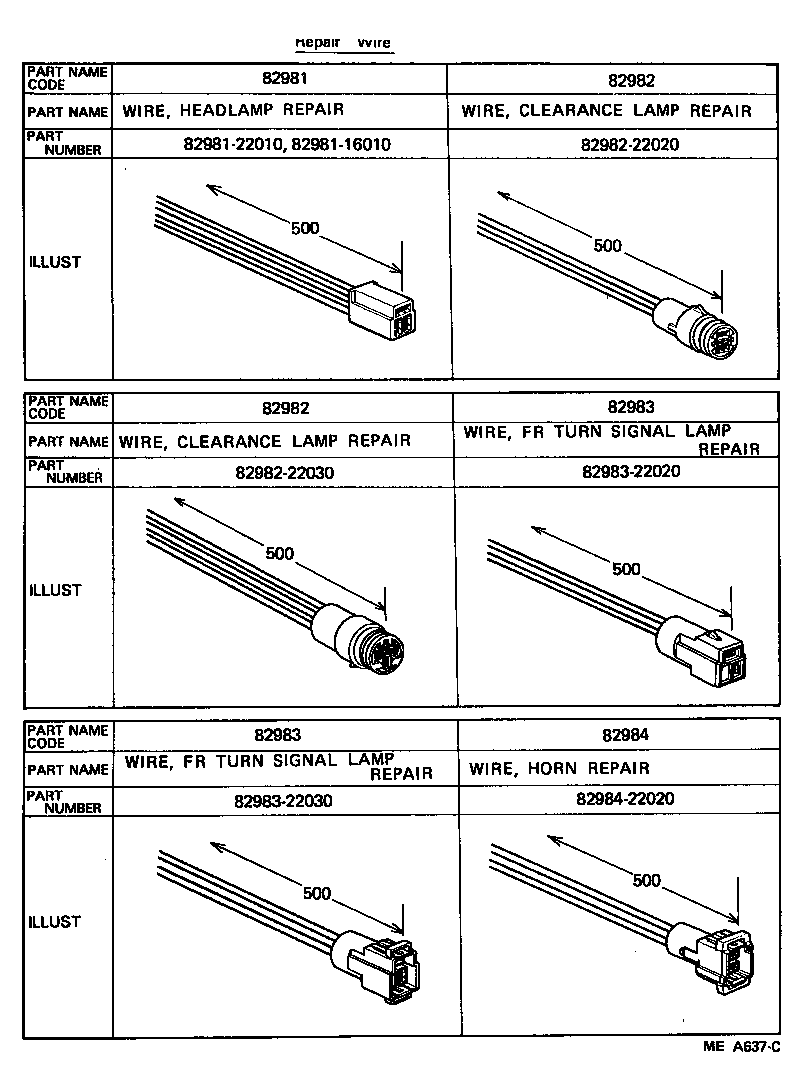

| 82981 | Wire, Headlamp Repair |
| 82982 | Wire, Clearance Lamp Repair |
| 82983 | Wire, Front Turn Signal Lamp Repair |
| 82984 | Wire, Horn Repair |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
