Toyota Cressida
1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States
Discontinued model
Data version 1985-03

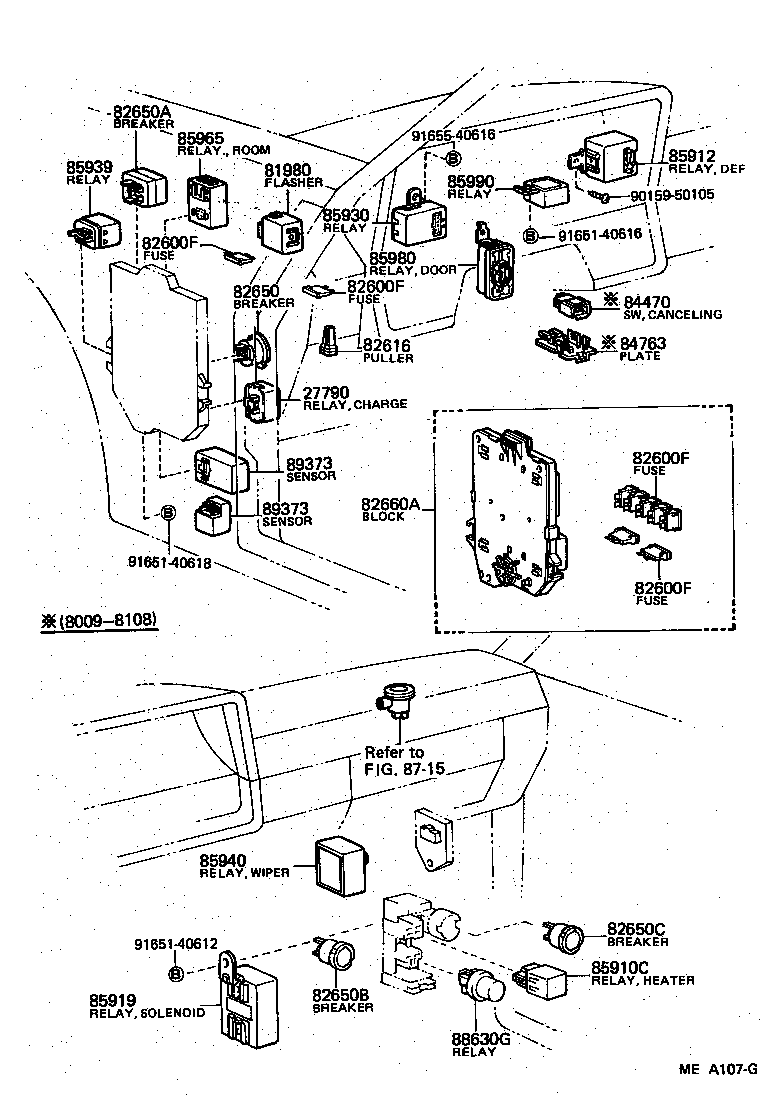

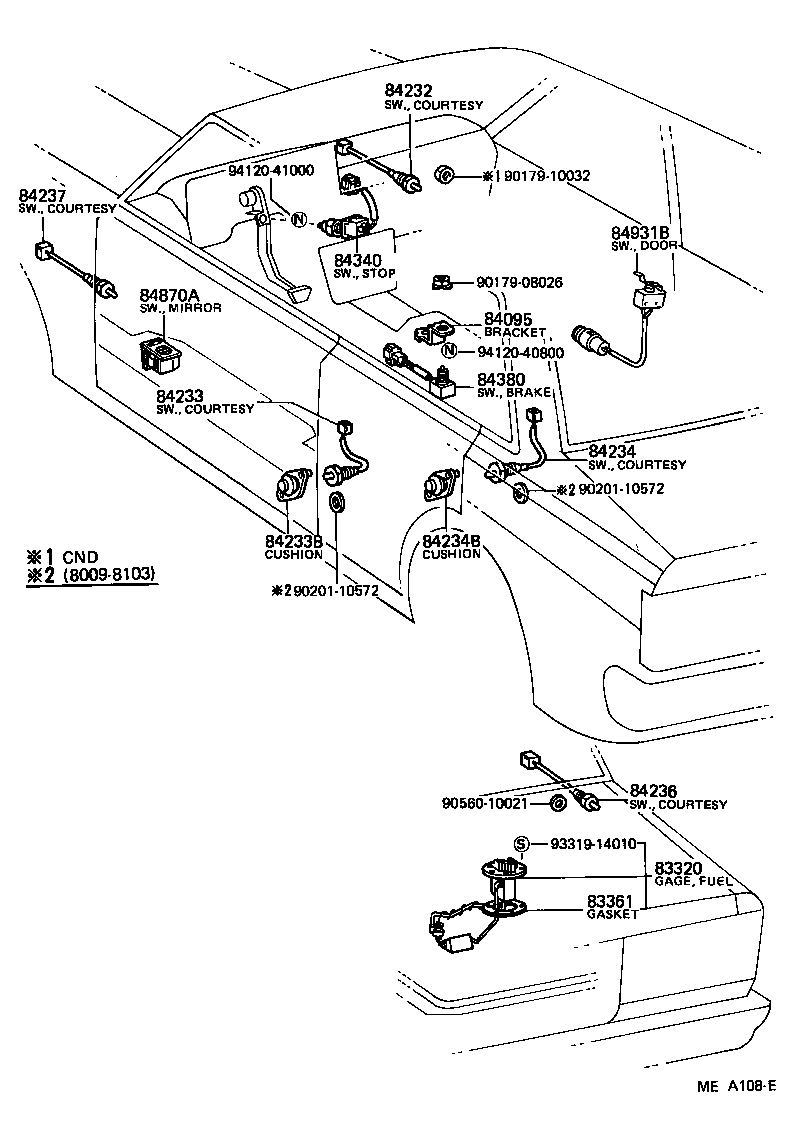

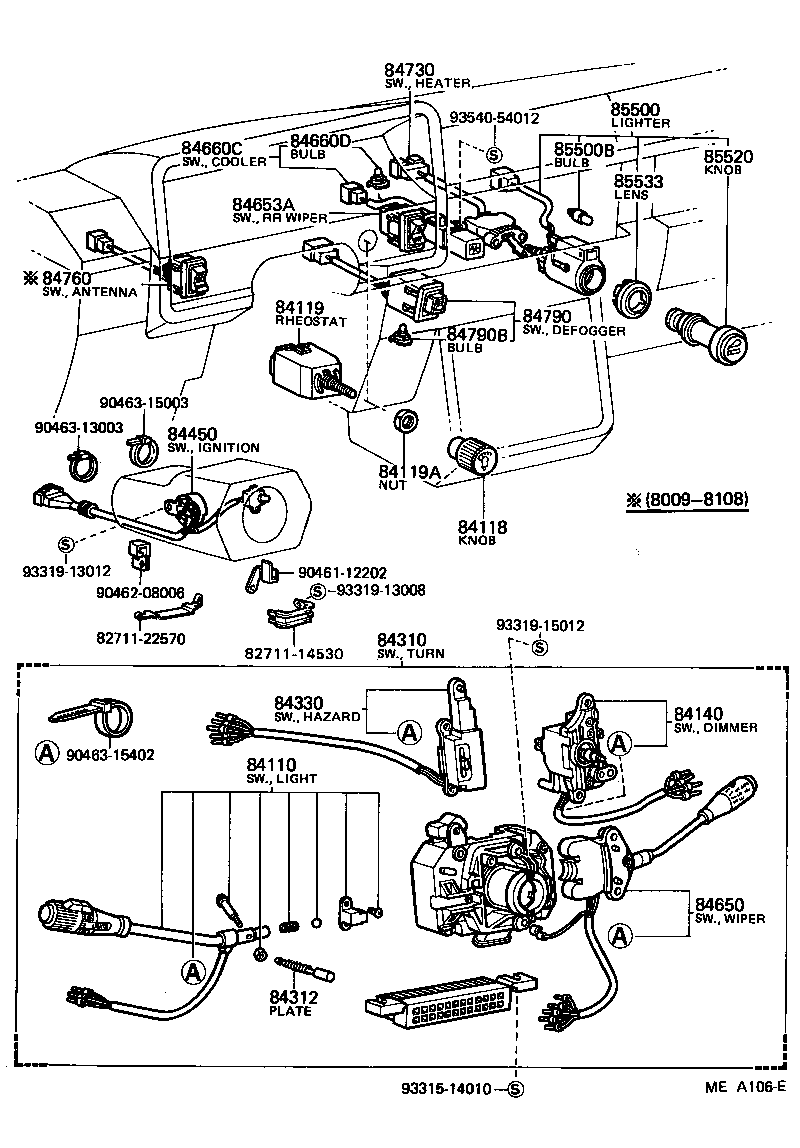

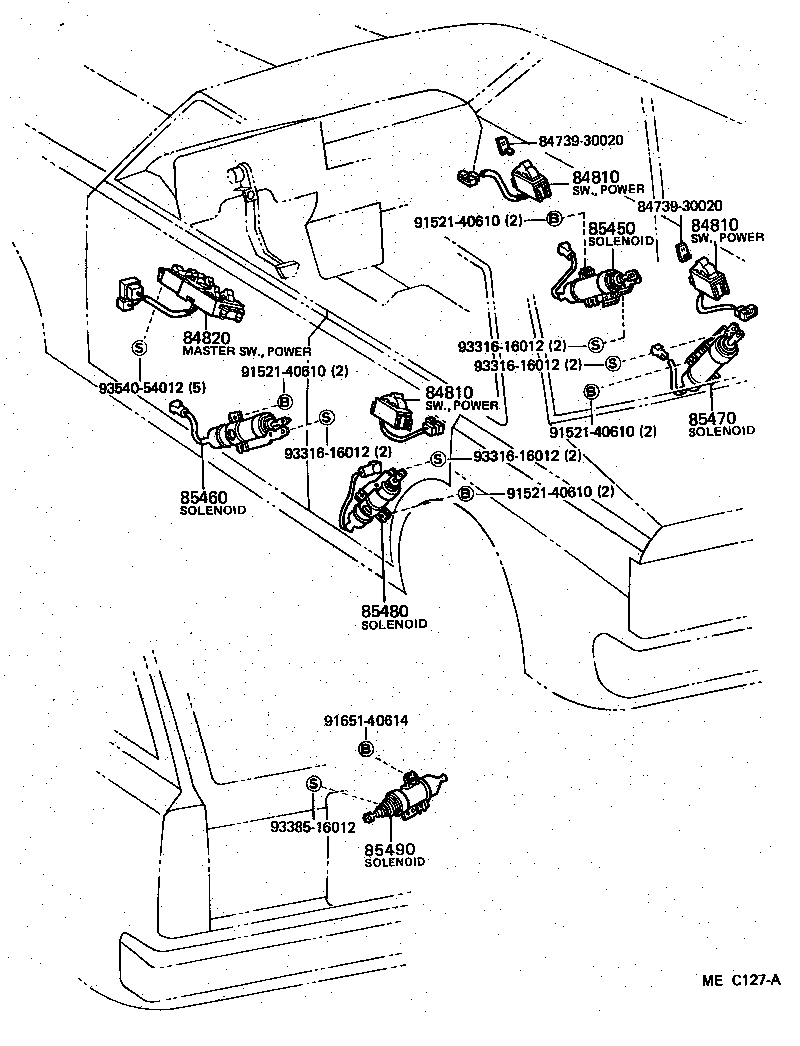

Switch & Relay & Computer
81 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 27790 | Relay Assy, Charge Lamp |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82650A | Breaker Assy, Wiring Circuit, NO.2 |
| 82650B | Breaker Assy, Wiring Circuit, NO.3 |
| 82650C | Breaker Assy, Wiring Circuit, NO.4 |
| 82660 | Block Assy, Relay, Engine Room |
| 82660A | Block Assy, Relay, Cowl Side |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84095 | Bracket Sub-assy, Hand Brake Signal Switch |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84232 | Switch Assy, Courtesy Lamp (FOR GLOVE BOX) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84234B | Cushion, Courtesy Switch (FOR REAR DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84237 | Switch Assy, Courtesy Lamp (FOR STEERING UN-LOCK WARNING) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84470 | Switch Assy, Warning Canceling |
| 84540 | Switch Assy, Neutral Start |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84730 | Switch Assy, Heater Blower |
| 84760 | Switch Assy, Antenna |
| 84763 | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84931B | Switch, Door Control |
| 85335 | Switch Assy, Washer Level Warning |
| 85336 | Switch Assy, Reserve Tank Level Warning |
| 85336A | Packing, Level Warning Switch |
| 85337 | Case, Level Warning Switch |
| 85450 | Solenoid Assy, Door Control, Front RH |
| 85460 | Solenoid Assy, Door Control, Front LH |
| 85470 | Solenoid Assy, Door Control, Rear RH |
| 85480 | Solenoid Assy, Door Control, Rear LH |
| 85490 | Solenoid Assy, Door Control Back |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85909A | Bracket Sub-assy, Relay Block |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85919 | Relay, Solenoid Lock Door Control |
| 85930 | Relay Assy, Power Window |
| 85939 | Relay, Power Window |
| 85940 | Relay Assy, Windshield Wiper |
| 85965 | Relay, Room Lamp Control |
| 85980 | Relay Assy, Door Control |
| 85990 | Relay OR Computer Assy, Seat Belt Warning |
| 88630G | Relay Assy, Cooler |
| 89373 | Sensor, Lamp Failure Indicator |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89620 | Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
