Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

7 part groups · 2 illustrations

Illustrations

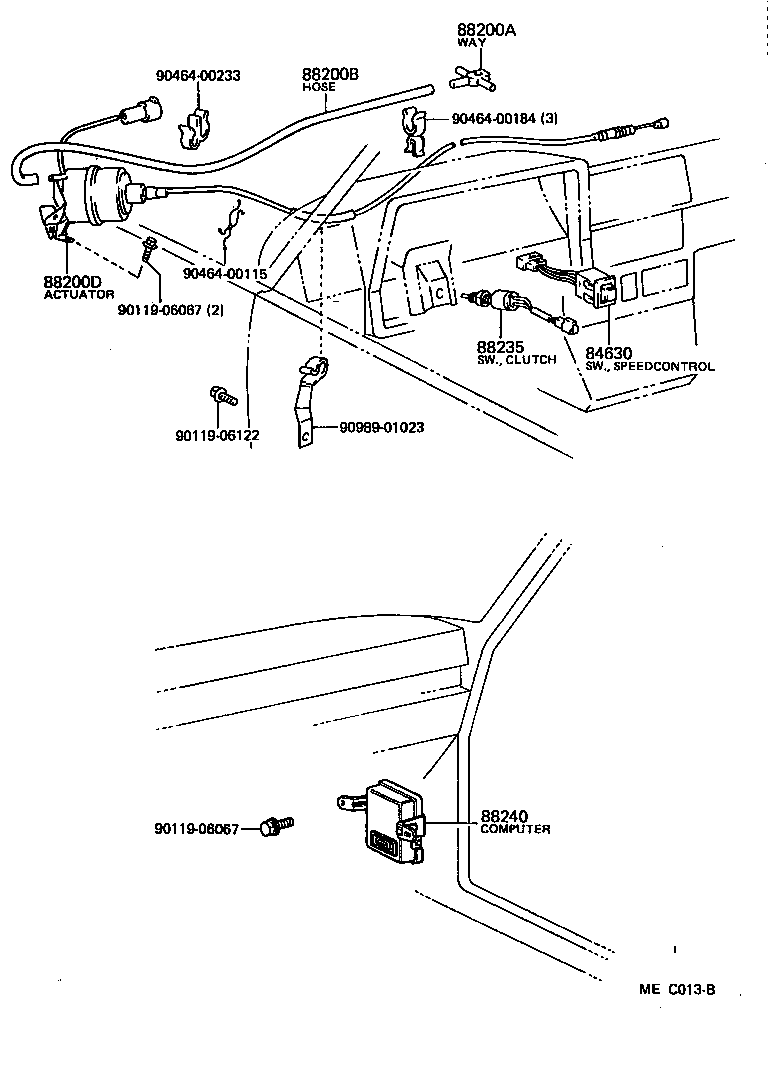

Figure MEA117B MEA117B 1980-09 → 1982-08 Figure MEC013B MEC013B 1982-08 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
88200A Union OR Way, Cruise Control Vacuum
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88235 Switch Assy, Cruise Control(AUTO DRIVE) Release
88240 Computer Assy, Cruise Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
