Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

Figure MEA153F

MEA153F 1980-09 → —

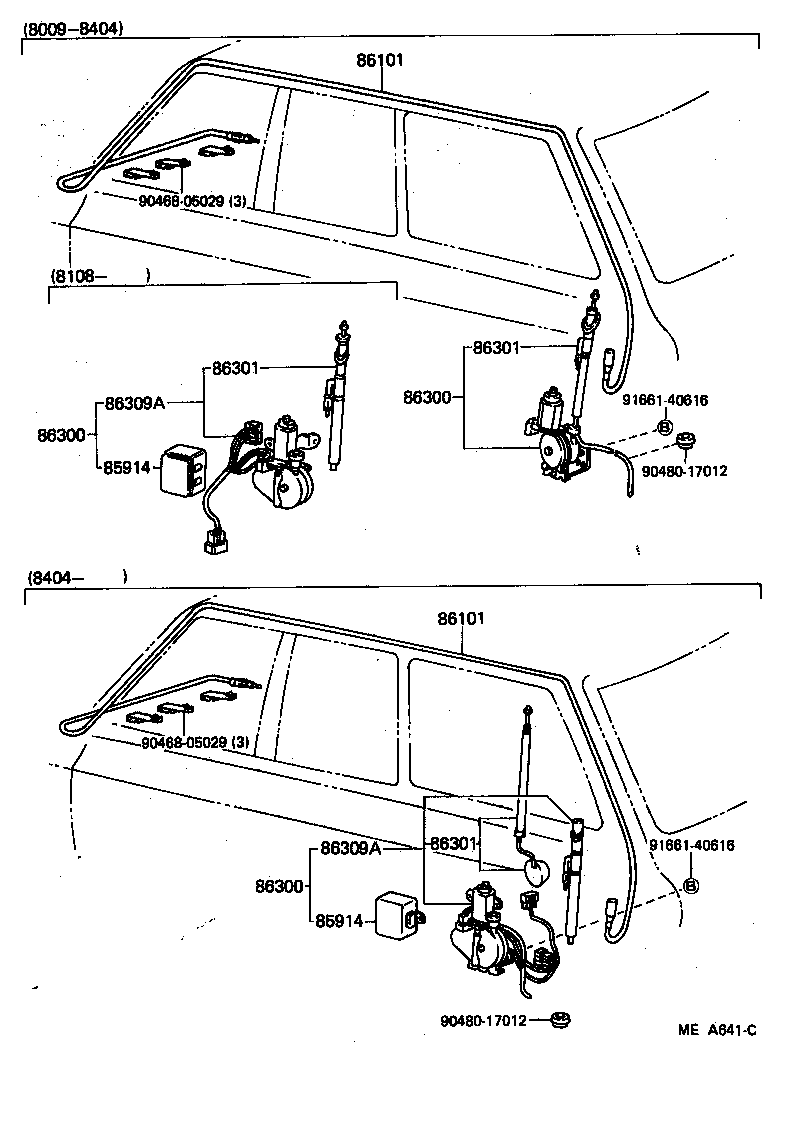

Figure MEA641C

MEA641C 1980-09 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86301	Pole Sub-assy, Antenna
86309A	Pole Sub-assy, Motor Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
