Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 3 illustrations

Illustrations

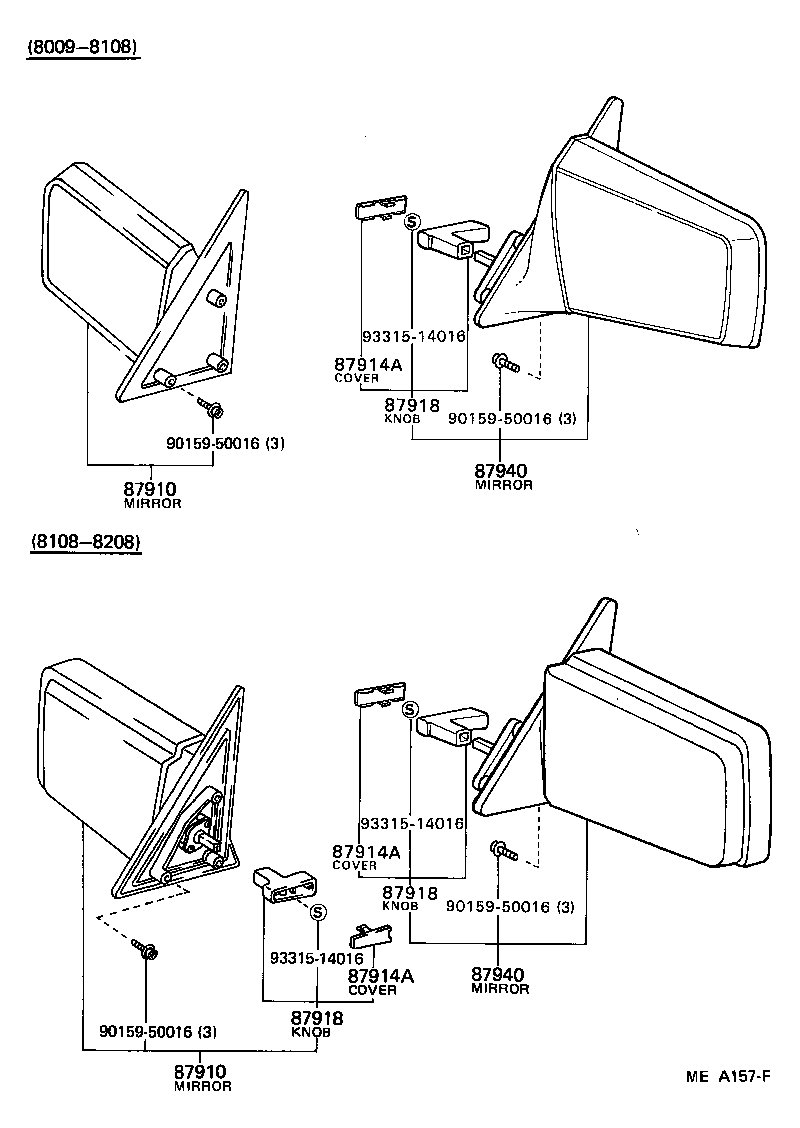

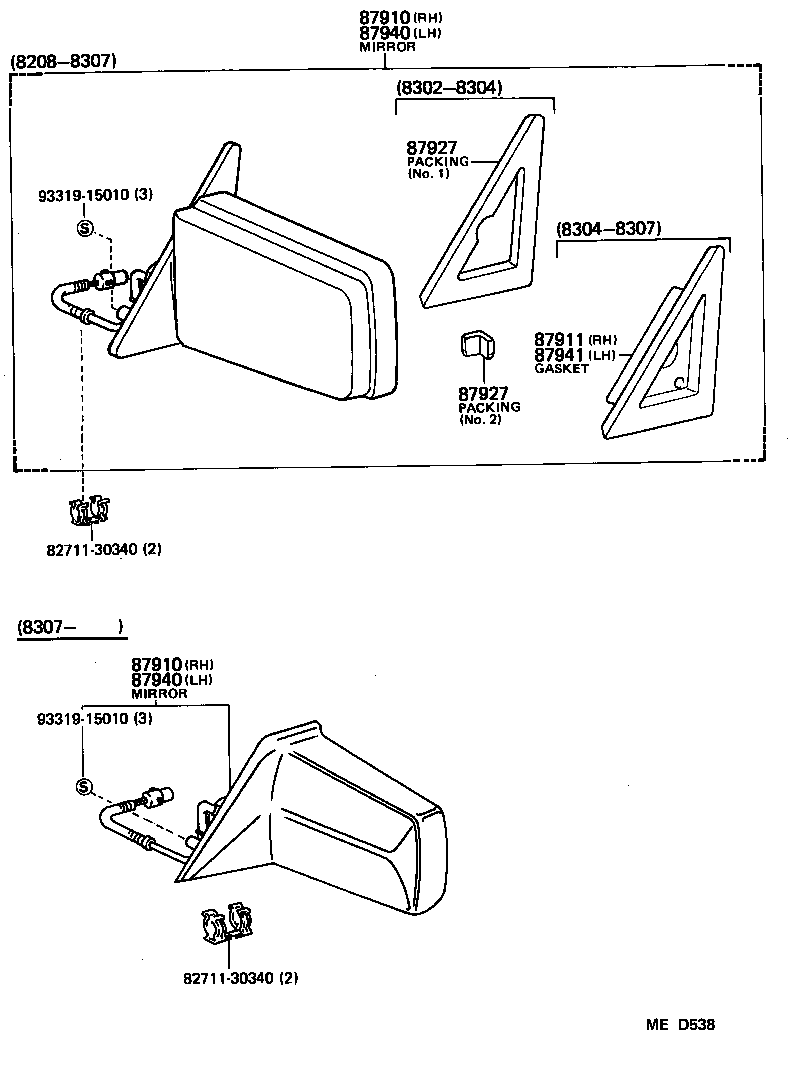

Figure MEA156C MEA156C 1980-09 → — Figure MEA157F MEA157F 1980-09 → 1982-08 Figure MED538 MED538 1982-08 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87816 Spring, Inner Rear View Mirror
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87914A Cover, Outer Mirror Knob
87918 Knob, Control Outer Mirror
87927 Packing, Rear View Outside Mirror Stay
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
