Toyota Cressida

1984-08 → 1988-08 · chassis MX7# · catalogue 311450 · United States

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

30 part groups · 3 illustrations

Illustrations

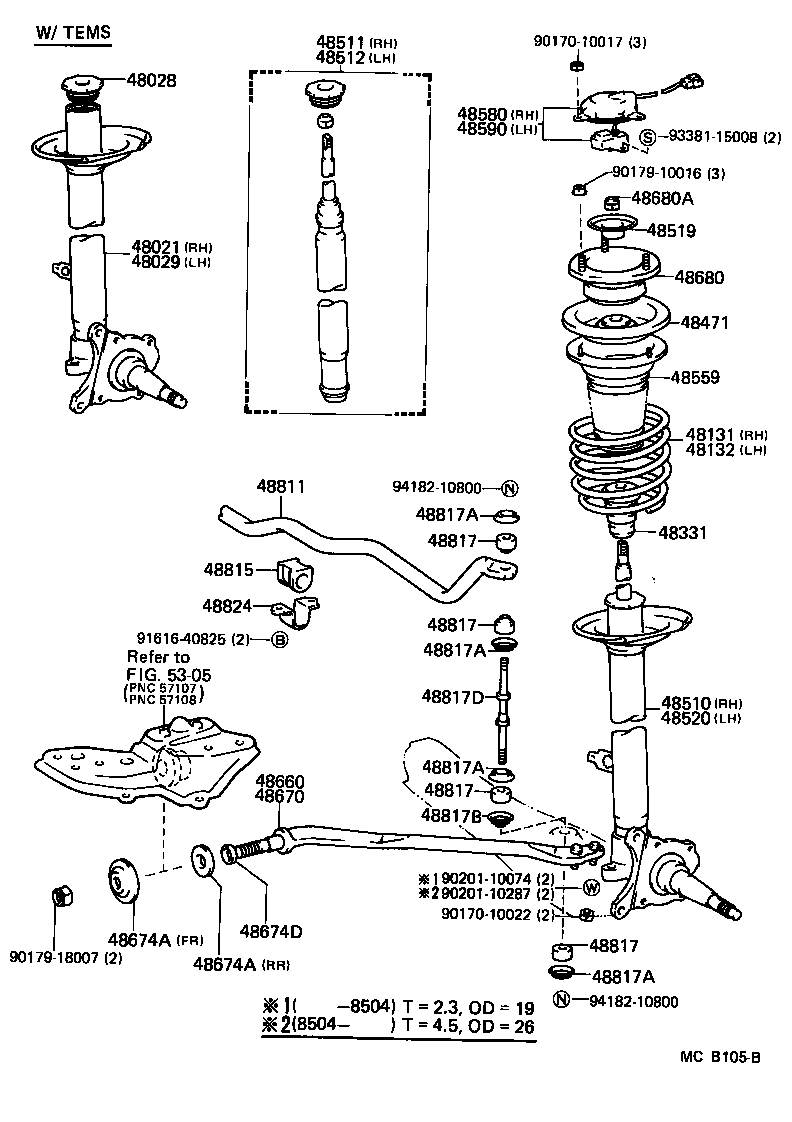

Figure MCB162C MCB162C 1984-08 → — Figure MCB105B MCB105B 1984-08 → 1987-08 Figure MCB105B MCB105B 1985-08 → —

Part groups

PNCDescription
48021 Shell Sub-assy, W/Steering Knuckle, RH
48028 Nut Sub-assy, Shock Absorber Ring
48029 Shell Sub-assy, W/Steering Knuckle, LH
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48331 Bumper, Front Spring, NO.1
48471 Seat, Front Spring, Upper
48510 Absorber Assy, Shock, Front RH
48511 Absorber, Shock Front, RH(FOR CARTRIDGE TYPE)
48512 Absorber, Shock Front, LH(FOR CARTRIDGE TYPE)
48519 Bracket, Actuator Support, Front
48520 Absorber Assy, Shock, Front LH
48559 Cover, Shock Absorber, Dust
48580 Cap Assy, Shock Absorber, W/Actuator, RH
48590 Cap Assy, Shock Absorber, W/Actuator, LH
48660 Bar Assy, Strut, RH
48670 Bar Assy, Strut, LH
48674A Retainer, Cushion(FOR STRUT BAR CUSHION)
48674D Spacer(FOR STRUT BAR CUSHION)
48680 Support Assy, Front Suspension
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680D Seal, Dust(FOR FRONT SUSPENSION SUPPORT)
48684 Cover, Bearing Dust
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817D Bolt(FOR FRONT STABILIZER)
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
