Toyota Cressida

1984-08 → 1988-08 · chassis MX7# · catalogue 311450 · United States

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

17 part groups · 2 illustrations

Illustrations

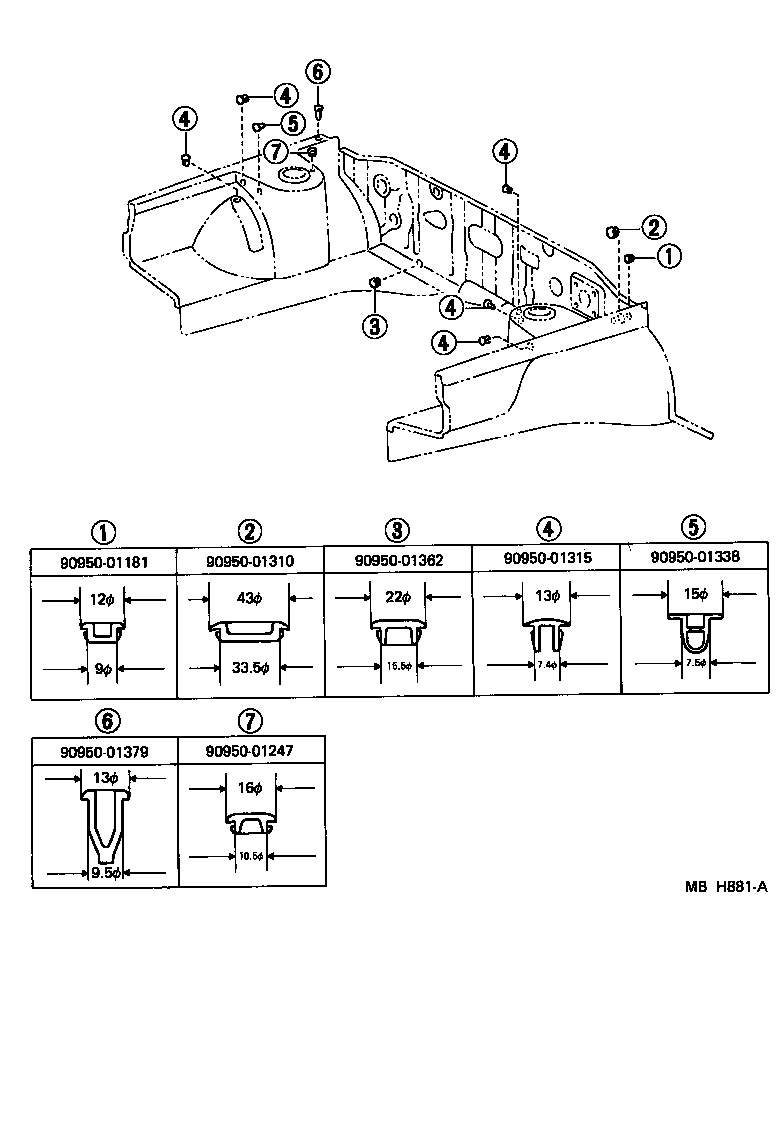

Figure MBG729E MBG729E 1984-08 → — Figure MBH881A MBH881A 1984-08 → —

Part groups

PNCDescription
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53211 Support, Radiator, RH
53212 Support, Radiator, LH
53396 Seal, Radiator Support TO Headlamp
53633 Shield, Hood Lock Control Cable
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53711B Apron, Front Fender, Front RH
53712B Apron, Front Fender, Front LH
53769 Plate, Ignition Coil Mounting, LH
53777 Support, Battery Carrier, NO.2
53791 Cover, Cool Air Intake Hole
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55220 Insulator Assy, Dash Panel, NO.2
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
