Toyota Cressida

1984-08 → 1988-08 · chassis MX7# · catalogue 311450 · United States

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

12 part groups · 2 illustrations

Illustrations

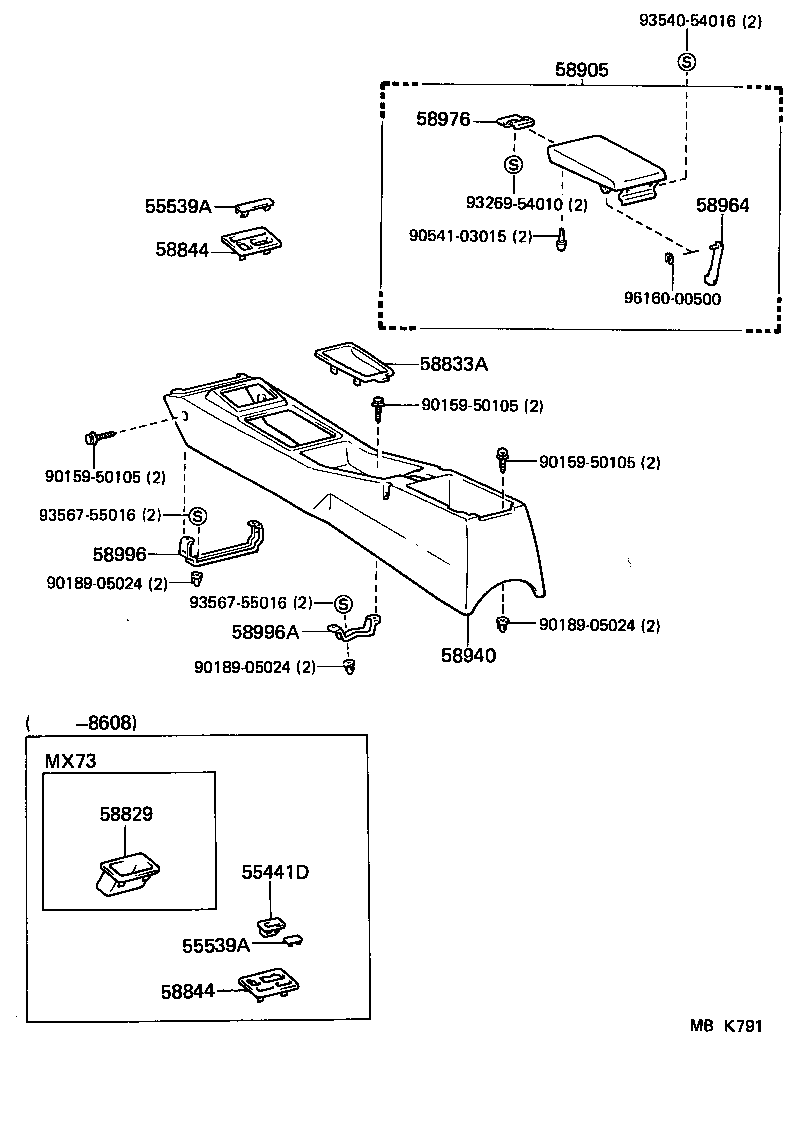

Figure MBG736B MBG736B 1984-08 → — Figure MBK791 MBK791 1984-08 → —

Part groups

PNCDescription
55441D Box, Instrument Panel Coin
55539A Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58829 Pocket, Console Box
58833A Cover, Console, Upper
58844 Bezel, Console Box
58905 Door Sub-assy, Console Compartment
58940 Console Assy, Rear
58964 Stopper, Console Compartment Door, NO.1
58976 Striker, Console Compartment Door Lock
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
