Toyota Cressida
1984-08 → 1988-08 · chassis MX7# · catalogue 311450 · United States
Discontinued model
Data version 1989-02

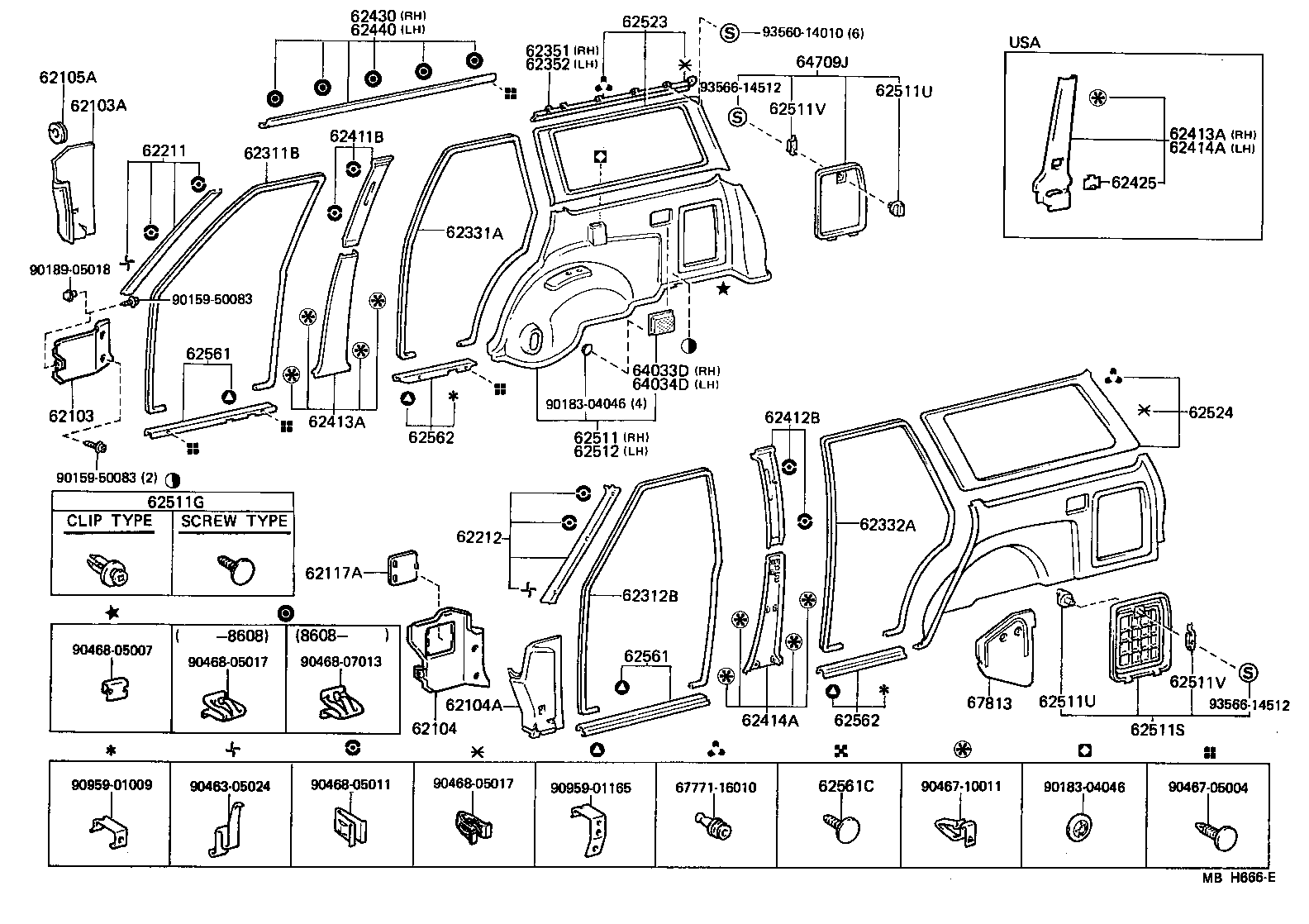

Inside Trim Board & Door Opening Trim Moulding
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62105A | Insulator Sub-assy, Cowl Side, Upper RH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62351 | Retainer, Quarter Window Inside Trim, RH |
| 62352 | Retainer, Quarter Window Inside Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62425 | Cover, Center Pillar Garnish |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62473C | Board, Roof Side Inner Garnish, RH |
| 62474C | Board, Roof Side Inner Garnish, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511S | Cover, Quarter Trim Jack |
| 62511U | Knob, Jack Cover |
| 62511V | Stopper, Jack Cover |
| 62512 | Board, Quarter Inside Trim, LH |
| 62523 | Cover, Rear Pillar Upper Garnish, RH |
| 62524 | Cover, Rear Pillar Upper Garnish, LH |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62561C | Clip (FOR ROCKER PANEL INNER PROTECTOR) |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 62581C | Garnish, Rear Window Side, RH |
| 62582C | Garnish, Rear Window Side, LH |
| 64033D | Grille Sub-assy, Rear Speaker, RH |
| 64034D | Grille Sub-assy, Rear Speaker, LH |
| 64709J | Cover Sub-assy, Deck Trim Pocket |
| 67813 | Pad, Quarter Panel Silencer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
