Toyota Cressida

1984-08 → 1988-08 · chassis MX7# · catalogue 311450 · United States

Discontinued model Data version 1989-02

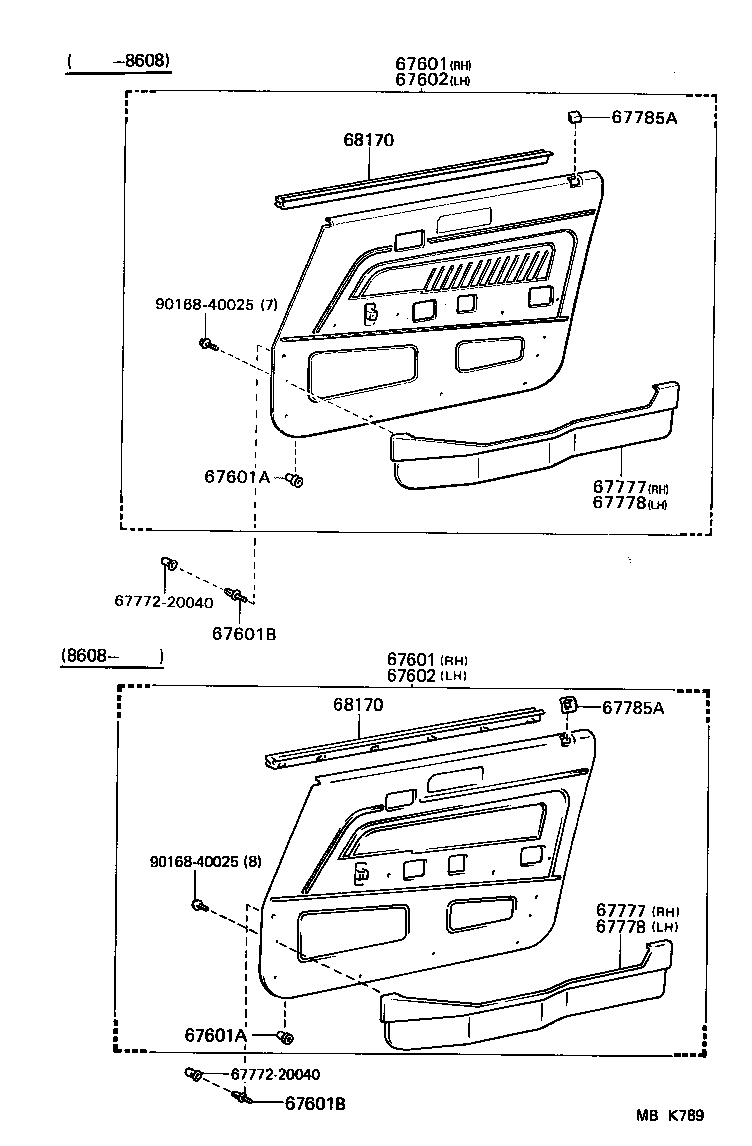

Front Door Panel & Glass

36 part groups · 2 illustrations

PNC	Description
62365	Clip, Door Window Glass, Front RH
62366	Clip, Door Window Glass, Front LH
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67407	Frame Sub-assy, Front Door, Rear Lower RH
67408	Frame Sub-assy, Front Door, Rear Lower LH
67443	Protector, Front Door Locking Rod, RH
67444	Protector, Front Door Locking Rod, LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67499	Retainer, Front Door Lower Frame Bracket Garnish
67601	Board Sub-assy, Front Door Trim, RH
67601A	Retainer(FOR FRONT DOOR TRIM BOARD)
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67777	Pocket, Front Door Trim, RH
67778	Pocket, Front Door Trim, LH
67785A	Holder, Door Locking Button Collar(FOR FRONT DOOR)
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67863B	Weatherstrip, Front Door, NO.2 RH
67864B	Weatherstrip, Front Door, NO.2 LH
67867A	Clip, Door Weatherstrip(FOR FRONT DOOR)
67868A	Clip, Door Glass Weatherstrip(FOR FRONT DOOR)
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141	Run, Front Door Glass
68170	Weatherstrip Assy, Front Door Glass, Inner
68610	Check Assy, Front Door
68610A	Pin(FOR FRONT DOOR CHECK)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
