Toyota Cressida

1984-08 → 1988-08 · chassis MX7# · catalogue 311450 · United States

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

36 part groups · 2 illustrations

Illustrations

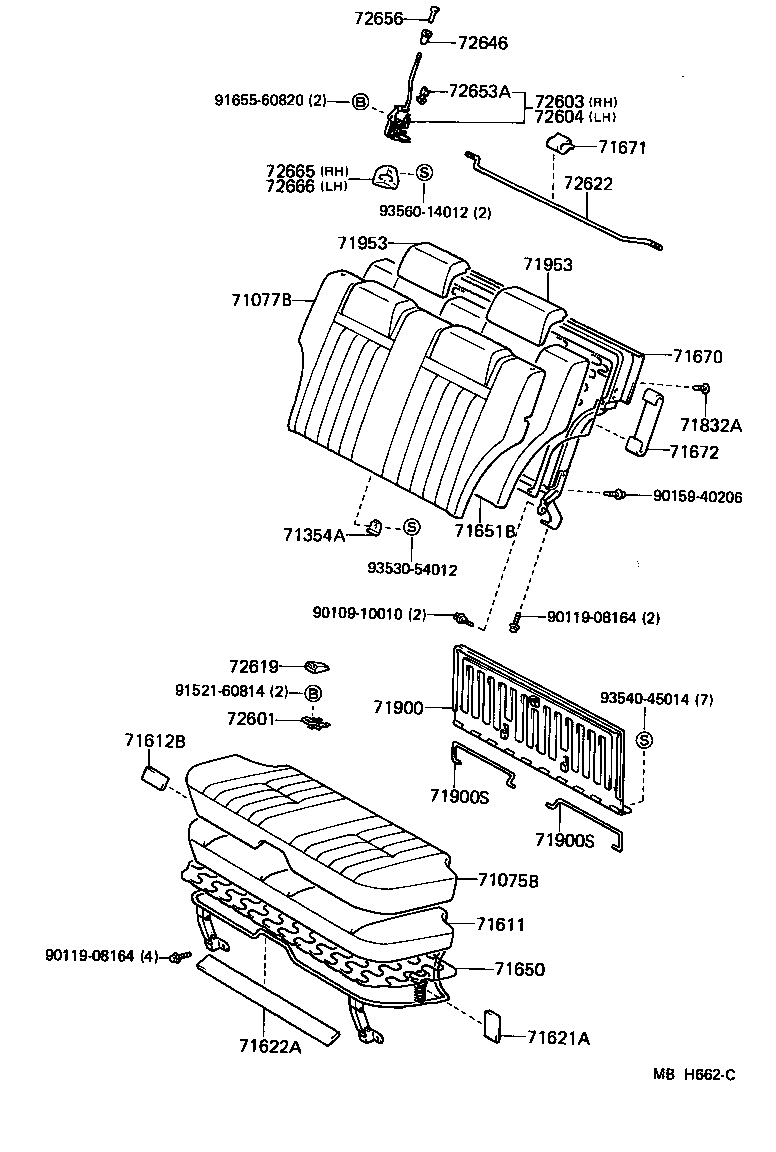

Figure MBG755 MBG755 1984-08 → — Figure MBH662C MBH662C 1984-11 → 1987-08

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71354A Plate, Rear Seatback Set
71611 Pad, Rear Seat Cushion
71612B Pad, Rear Seat Cushion, B
71621A Pad, Rear Seat Cushion Silencer, A
71622A Pad, Rear Seat Cushion Silencer, B
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71671 Pad, Rear Seatback Silencer, A
71672 Pad, Rear Seatback Silencer, B
71731A Fastener, Seat Cover, A (FOR REAR SEAT)
71733A Retainer, Seat Cover Fastener, A (FOR REAR SEAT)
71812B Clip(FOR REAR SEAT CUSHION COVER)
71832A Clip, Rear Seatback Carpet OR Mat
71893 Garnish, Rear Seatback Side, Lower RH
71900 Floor Assy, Rear Seat
71900S Spring (FOR REAR SEAT FLOOR)
71953 Pad, Rear Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72619 Cover, Rear Seatback Lock Striker
72622 Rod, Rear Seatback Stopper Connecting
72646 Grommet, Rear Seatback Stop Button
72653A Snap, Rear Seatback Lock Rod
72656 Button, Rear Seatback Stop Release
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72830C Clip, Rear Seat Center Armrest
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
