Toyota Cressida

1984-08 → 1988-08 · chassis MX7# · catalogue 311450 · United States

Discontinued model Data version 1989-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

48 part groups · 4 illustrations

Illustrations

MBK854 1984-08 → —

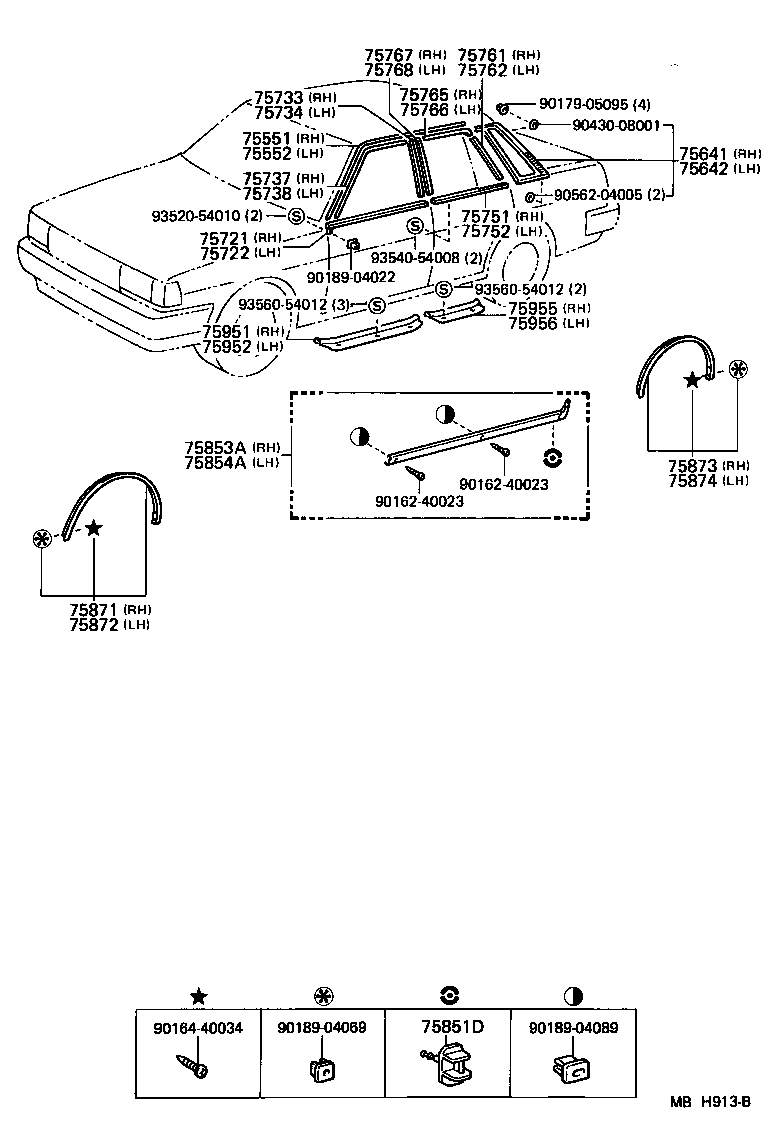

MBH913B 1984-08 → —

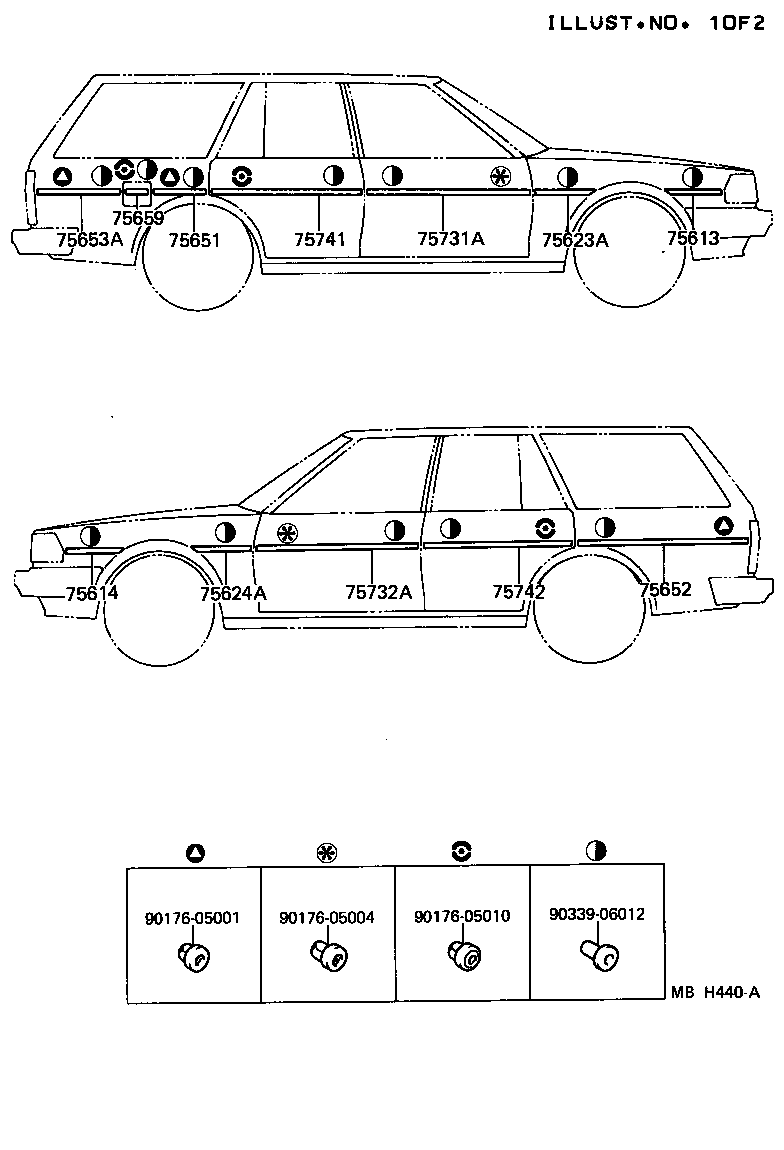

MBH440A 1984-08 → 1987-08

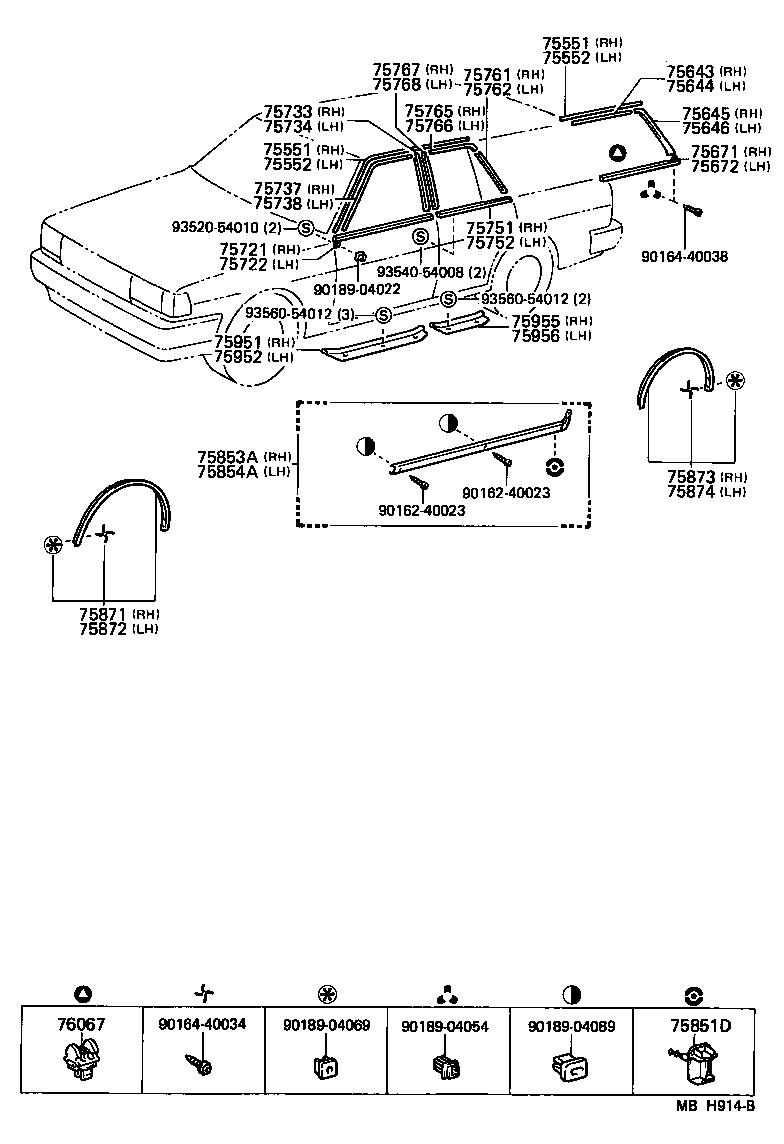

MBH914B 1984-11 → 1987-08

Part groups

PNC	Description
75551	Moulding, Roof Drip Side Finish, RH
75552	Moulding, Roof Drip Side Finish, LH
75613	Moulding, Front Fender, Outside RH
75614	Moulding, Front Fender, Outside LH
75623A	Moulding, Front Fender, Outside Rear RH
75624A	Moulding, Front Fender, Outside Rear LH
75641	Moulding, Quarter Window, Outside Front RH
75642	Moulding, Quarter Window, Outside Front LH
75643	Moulding, Quarter Window, Outside Upper RH
75644	Moulding, Quarter Window, Outside Upper LH
75645	Moulding, Quarter Window, Outside Rear RH
75646	Moulding, Quarter Window, Outside Rear LH
75651	Moulding, Quarter, Outside RH
75652	Moulding, Quarter, Outside LH
75653A	Moulding, Quarter, Outside Rear RH
75659	Moulding, Fuel Filler Lid
75671	Moulding, Quarter Belt, RH
75672	Moulding, Quarter Belt, LH
75721	Moulding, Front Door Belt, RH
75722	Moulding, Front Door Belt, LH
75731A	Moulding, Front Door, Outside RH
75732A	Moulding, Front Door, Outside LH
75733	Moulding, Front Door Window Frame, Rear RH
75734	Moulding, Front Door Window Frame, Rear LH
75737	Moulding, Front Door Window Frame, Front RH
75738	Moulding, Front Door Window Frame, Front LH
75741	Moulding, Rear Door, Outside RH
75742	Moulding, Rear Door, Outside LH
75751	Moulding, Rear Door Belt, RH
75752	Moulding, Rear Door Belt, LH
75761	Moulding, Rear Door Window Frame, Rear RH
75762	Moulding, Rear Door Window Frame, Rear LH
75765	Moulding, Rear Door Window Frame, Upper RH
75766	Moulding, Rear Door Window Frame, Upper LH
75767	Moulding, Rear Door Window Frame, Front RH
75768	Moulding, Rear Door Window Frame, Front LH
75851D	Clip(FOR ROCKER PANEL MOULDING SET)
75853A	Moulding, Rocker Panel, Center RH
75854A	Moulding, Rocker Panel, Center LH
75871	Moulding, Front Fender Wheel Opening, RH
75872	Moulding, Front Fender Wheel Opening, LH
75873	Moulding, Quarter Panel Wheel Opening, RH
75874	Moulding, Quarter Panel Wheel Opening, LH
75951	Plate, Front Door Scuff, Outside RH
75952	Plate, Front Door Scuff, Outside LH
75955	Plate, Rear Door Scuff, Outside RH
75956	Plate, Rear Door Scuff, Outside LH
76067	Clip Sub-assy, Quarter Belt Moulding, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
