Toyota Cressida

1988-08 → 1992-07 · chassis MX8# · catalogue 311460 · United States

Discontinued model Data version 1993-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

31 part groups · 3 illustrations

Illustrations

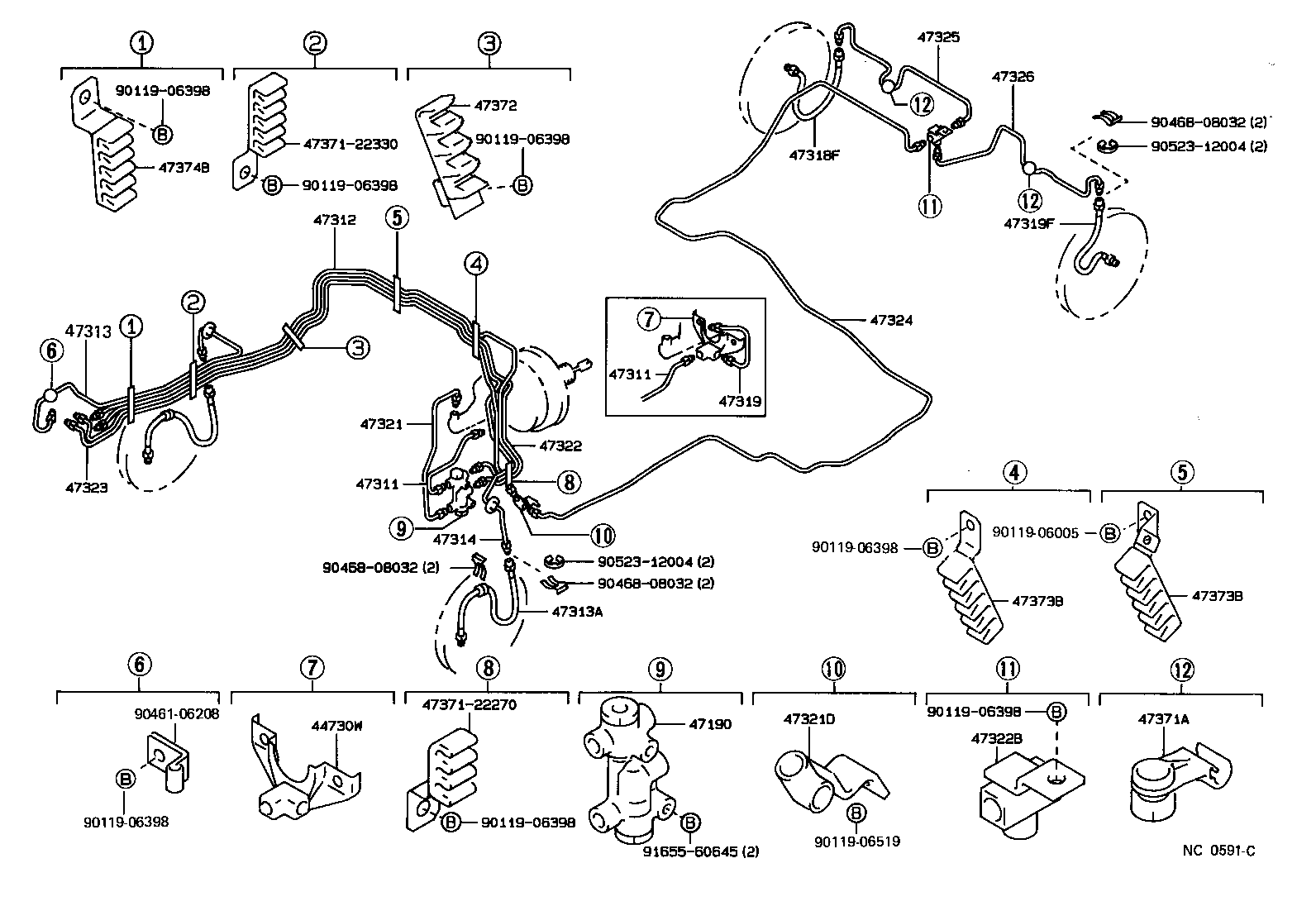

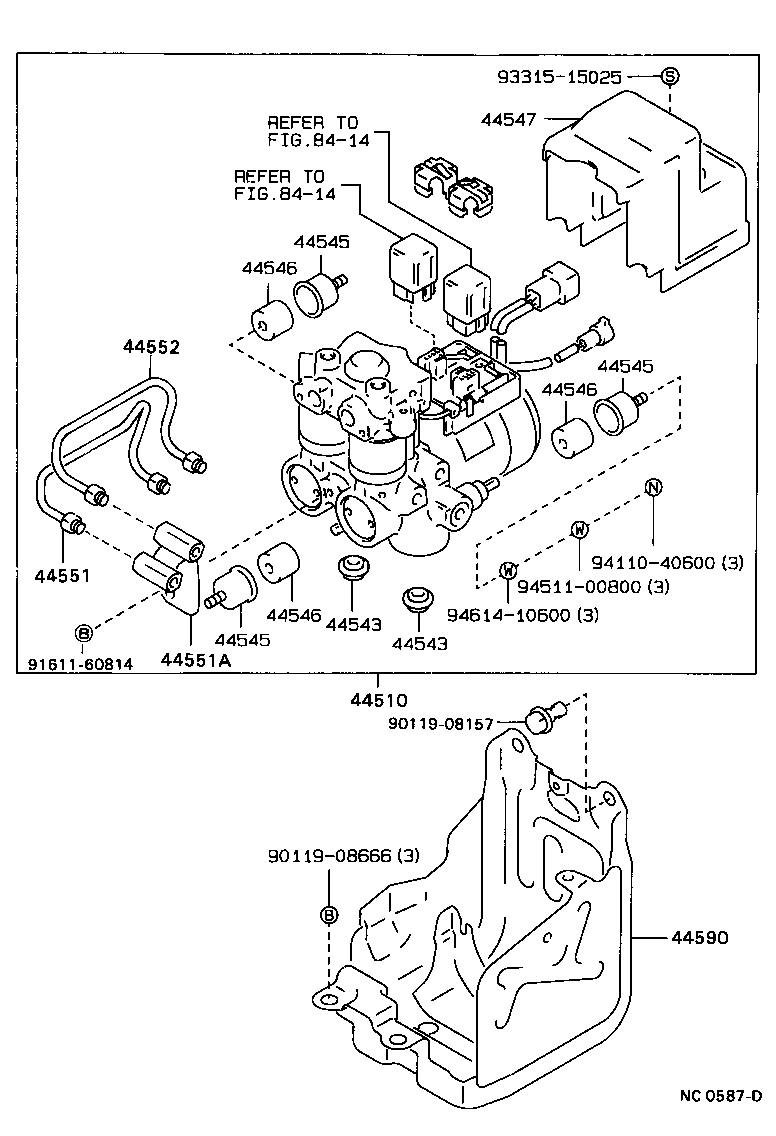

Figure NC0590C NC0590C 1988-08 → — Figure NC0591C NC0591C 1988-08 → — Figure NC0587D NC0587D 1988-08 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44543 Cap, Rubber
44545 Bolt, Union(FOR BRAKE ACTUATOR)
44546 Spacer, Air Inlet
44547 Case, Relay(FOR BRAKE ACTUATOR)
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44552 Tube, Brake Actuator, NO.2
44590 Bracket Assy, Brake Actuator
44730W Way, 2(FOR FRONT BRAKE TUBE)
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
