Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

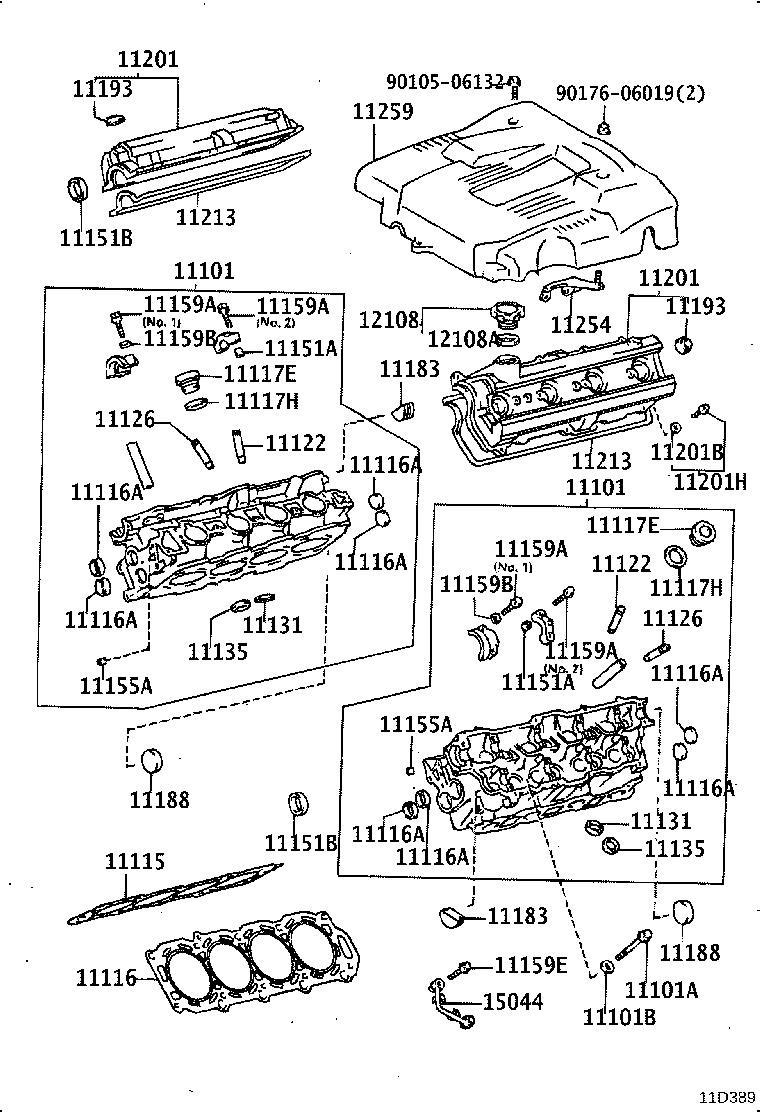

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-49325 |
Head Sub-assy, Cylinder
1991-08 → 1992-10
ended
|
2JZGE JZZ31 | — | |
| 11101-49327 |
Head Sub-assy, Cylinder
1992-10 → 1993-03
ended
|
2JZGE JZZ31 | — | |
| 11101-49328 |
Head Sub-assy, Cylinder
1993-03 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 11101-49376 |
Head Sub-assy, Cylinder
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11101-59115 |
Head Sub-assy, Cylinder
1991-04 → 1991-10
ended
|
1UZFE UZZ30 | — | |
| 11101-59125 |
Head Sub-assy, Cylinder
1991-10 → 1994-08
ended
|
1UZFE UZZ30 | — | |
| 11101-59145 |
Head Sub-assy, Cylinder
1994-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11101-59155-A0 note |
Head Sub-assy, Cylinder
1997-09 → 2000-01
ended
|
1UZFE UZZ30 | — | |
| 11101-59155-B0 note |
Head Sub-assy, Cylinder
1997-09 → 2000-01
ended
|
1UZFE UZZ30 | — | |
| 11101-59156-A0 note |
Head Sub-assy, Cylinder
2000-01 → 2000-02
ended
|
1UZFE UZZ30 | — | |
| 11101-59156-B0 note |
Head Sub-assy, Cylinder
2000-01 → 2000-02
ended
|
1UZFE UZZ30 | — | |
| 11101-59157-A0 note |
Head Sub-assy, Cylinder
2000-02 → 2000-05
ended
|
1UZFE UZZ30 | — | |
| 11101-59157-B0 note |
Head Sub-assy, Cylinder
2000-02 → 2000-05
ended
|
1UZFE UZZ30 | — | |
| 11101-59158 |
Head Sub-assy, Cylinder
2000-05 → 2000-07
ended
|
1UZFE UZZ30 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02088 |
Bolt(FOR CYLINDER HEAD SET)
1991-04 → —
|
1UZFE UZZ30 | — | |
| 90910-02102 |
Bolt(FOR CYLINDER HEAD SET)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10133 |
Washer, Plate(FOR CYLINDER HEAD SET)
1998-01 → —
|
1UZFE UZZ30 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
1991-04 → 1998-01
ended
|
1UZFE UZZ30 | — | |
| 90201-11018 |
Washer, Plate(FOR CYLINDER HEAD SET)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-46040 |
Gasket, Cylinder Head
1991-08 → 1993-06
ended
|
2JZGE JZZ31 | — | |
| 11115-46041 |
Gasket, Cylinder Head
1993-06 → 1994-04
ended
|
2JZGE JZZ31 | — | |
| 11115-46042 |
Gasket, Cylinder Head
1994-04 → 1995-08
ended
|
2JZGE JZZ31 | — | |
| 11115-46043 |
Gasket, Cylinder Head
1995-08 → 1996-09
ended
|
2JZGE JZZ31 | — | |
| 11115-46044 |
Gasket, Cylinder Head
1996-09 → 1999-02
ended
|
2JZGE JZZ31 | — | |
| 11115-46045 |
Gasket, Cylinder Head
1999-02 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11115-50020 |
Gasket, Cylinder Head
1991-04 → 1994-10
ended
|
1UZFE UZZ30 | — | |
| 11115-50021 |
Gasket, Cylinder Head
1994-10 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11115-50042 |
Gasket, Cylinder Head
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11116 — Gasket, Cylinder Head, NO.2 | ||||
| 11116-50010 |
Gasket, Cylinder Head, NO.2
1991-04 → 1994-10
ended
|
1UZFE UZZ30 | — | |
| 11116-50011 |
Gasket, Cylinder Head, NO.2
1994-10 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11116-50032 |
Gasket, Cylinder Head, NO.2
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11116A — Plug, Tight, NO.1 | ||||
| 96411-42000 |
Plug, Tight, NO.1
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 96411-43000 |
Plug, Tight, NO.1
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 96411-63000 |
Plug, Tight, NO.1
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-24010 |
Plug, W/Head Straight Screw, NO.1
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.1
1991-04 → —
|
1UZFE UZZ30 | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-24010 note |
Gasket(FOR WATER HOLE)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90430-27005 |
Gasket(FOR WATER HOLE)
1991-04 → —
|
1UZFE UZZ30 | — | |
| 90430-36003 note |
Gasket(FOR WATER HOLE)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-16020 note |
Bush, Intake Valve Guide
1991-04 → 1994-08
ended
|
1UZFE UZZ30 | — | |
| 11122-20020 note |
Bush, Intake Valve Guide
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11122-74030 note |
Bush, Intake Valve Guide
1994-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11122-74030 note |
Bush, Intake Valve Guide
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11123-16020 note |
Bush, Intake Valve Guide
1991-04 → 1994-08
ended
|
1UZFE UZZ30 | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11123-74030 note |
Bush, Intake Valve Guide
1994-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11123-74030 note |
Bush, Intake Valve Guide
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-16010 note |
Bush, Exhaust Valve Guide
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11123-16010 note |
Bush, Exhaust Valve Guide
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11126-20020 note |
Bush, Exhaust Valve Guide
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11126-50040 note |
Bush, Exhaust Valve Guide
1991-04 → 1994-08
ended
|
1UZFE UZZ30 | — | |
| 11126-50050 note |
Bush, Exhaust Valve Guide
1994-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11127-50040 note |
Bush, Exhaust Valve Guide
1991-04 → 1994-08
ended
|
1UZFE UZZ30 | — | |
| 11127-50050 note |
Bush, Exhaust Valve Guide
1994-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-46020 note |
Seat, Intake Valve
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11131-50020 note |
Seat, Intake Valve
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11131-50030 note |
Seat, Intake Valve
1997-09 → 2000-05
ended
|
1UZFE UZZ30 | — | |
| 11132-46020 note |
Seat, Intake Valve
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11132-50020 note |
Seat, Intake Valve
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11132-50030 note |
Seat, Intake Valve
1997-09 → 2000-05
ended
|
1UZFE UZZ30 | — | |
| 11132-50040 note |
Seat, Intake Valve
2000-05 → 2000-07
ended
|
1UZFE UZZ30 | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-46020 note |
Seat, Exhaust Valve
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11135-50020 note |
Seat, Exhaust Valve
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11135-50030 note |
Seat, Exhaust Valve
1997-09 → 2000-05
ended
|
1UZFE UZZ30 | — | |
| 11136-46020 note |
Seat, Exhaust Valve
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11136-50020 note |
Seat, Exhaust Valve
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11136-50030 note |
Seat, Exhaust Valve
1997-09 → 2000-05
ended
|
1UZFE UZZ30 | — | |
| 11136-50040 note |
Seat, Exhaust Valve
2000-05 → 2000-07
ended
|
1UZFE UZZ30 | — | |
| 11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90253-10006 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11151B — Seal, Oil(FOR CAMSHAFT SETTING) | ||||
| 90311-38036 |
Seal, Oil(FOR CAMSHAFT SETTING)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90311-71001 |
Seal, Oil(FOR CAMSHAFT SETTING)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-09001 |
Pin, Ring W/Head
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90253-11001 |
Pin, Ring W/Head
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90253-11021 |
Pin, Ring W/Head
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-07003 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90105-07004 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90105-07005 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90119-07007 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90119-08890 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1991-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 90119-08890 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11159B — Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
1991-04 → —
|
1UZFE UZZ30 | — | |
| 90210-08033 |
Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11159E — Bolt(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
Bolt(FOR CAMSHAFT OIL FEED PIPE)
1991-04 → —
|
1UZFE UZZ30 | — | |
| 11183 — Plug, Semicircular | ||||
| 11183-50010 |
Plug, Semicircular
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11183-50020 |
Plug, Semicircular
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11188 — Plug, Camshaft Housing | ||||
| 11188-50010 |
Plug, Camshaft Housing
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11188-62010 |
Plug, Camshaft Housing
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11193 — Gasket, Spark Plug Tube | ||||
| 11193-15010 |
Gasket, Spark Plug Tube
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11193-16010 |
Gasket, Spark Plug Tube
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0W010 note |
Cover Sub-assy, Cylinder Head
1991-08 → 1993-07
ended
|
2JZGE JZZ31 | — | |
| 11201-0W011 note |
Cover Sub-assy, Cylinder Head
1993-07 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 11201-0W050 note |
Cover Sub-assy, Cylinder Head
1997-09 → 1999-08
ended
|
2JZGE JZZ31 | — | |
| 11201-46062 note |
Cover Sub-assy, Cylinder Head
1999-08 → 2000-01
ended
|
2JZGE JZZ31 | — | |
| 11201-46063 note |
Cover Sub-assy, Cylinder Head
2000-01 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11201-50020 note |
Cover Sub-assy, Cylinder Head
1991-04 → 1994-09
ended
|
1UZFE UZZ30 | — | |
| 11201-50021 note |
Cover Sub-assy, Cylinder Head
1994-09 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11201-50030 note |
Cover Sub-assy, Cylinder Head
1997-09 → 2000-06
ended
|
1UZFE UZZ30 | — | |
| 11201-50031 note |
Cover Sub-assy, Cylinder Head
2000-06 → 2000-07
ended
|
1UZFE UZZ30 | — | |
| 11202-0W010 note |
Cover Sub-assy, Cylinder Head
1991-08 → 1992-10
ended
|
2JZGE JZZ31 | — | |
| 11202-0W020 note |
Cover Sub-assy, Cylinder Head
1992-10 → 1993-07
ended
|
2JZGE JZZ31 | — | |
| 11202-0W021 note |
Cover Sub-assy, Cylinder Head
1993-07 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 11202-0W050 note |
Cover Sub-assy, Cylinder Head
1997-09 → 1999-08
ended
|
2JZGE JZZ31 | — | |
| 11202-46032 note |
Cover Sub-assy, Cylinder Head
1999-08 → 2000-01
ended
|
2JZGE JZZ31 | — | |
| 11202-46033 note |
Cover Sub-assy, Cylinder Head
2000-01 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11202-50020 note |
Cover Sub-assy, Cylinder Head
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11202-50030 note |
Cover Sub-assy, Cylinder Head
1997-09 → 2000-07
ended
|
1UZFE UZZ30 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90210-07001 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90109-06163 |
Bolt(FOR CYLINDER HEAD COVER)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90109-06163 |
Bolt(FOR CYLINDER HEAD COVER)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-46020 note |
Gasket, Cylinder Head Cover
1991-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 11213-46030 note |
Gasket, Cylinder Head Cover
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11213-50020 |
Gasket, Cylinder Head Cover
1991-04 → 1996-08
ended
|
1UZFE UZZ30 | — | |
| 11213-50021 |
Gasket, Cylinder Head Cover
1996-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11213-50030 |
Gasket, Cylinder Head Cover
1997-09 → —
|
1UZFE UZZ30 | — | |
| 11214-46010 note |
Gasket, Cylinder Head Cover
1991-08 → 1995-07
ended
|
2JZGE JZZ31 | — | |
| 11214-46011 note |
Gasket, Cylinder Head Cover
1995-07 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 11254 — Bracket, V-bank Cover, NO.1 | ||||
| 11254-50010 |
Bracket, V-bank Cover, NO.1
1995-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 11254-50020 |
Bracket, V-bank Cover, NO.1
1997-09 → 1998-06
ended
|
1UZFE UZZ30 | — | |
| 11254-50021 |
Bracket, V-bank Cover, NO.1
1998-06 → —
|
1UZFE UZZ30 | — | |
| 11259 — Cover, V-bank | ||||
| 11209-50050 |
Cover, V-bank
1997-09 → 1998-08
ended
|
1UZFE UZZ30 | — | |
| 11209-50051 |
Cover, V-bank
1998-08 → —
|
1UZFE UZZ30 | — | |
| 11259-50010 |
Cover, V-bank
1995-08 → 1996-08
ended
|
1UZFE UZZ30 | — | |
| 11259-50030 |
Cover, V-bank
1996-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-20020 |
Cap Sub-assy, Oil Filler
1996-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 12180-46020 |
Cap Sub-assy, Oil Filler
1991-08 → 1993-09
ended
|
2JZGE JZZ31 | — | |
| 12180-46021 |
Cap Sub-assy, Oil Filler
1993-09 → 1996-08
ended
|
2JZGE JZZ31 | — | |
| 12180-46030 |
Cap Sub-assy, Oil Filler
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 12180-50020 |
Cap Sub-assy, Oil Filler
1991-04 → 1993-09
ended
|
1UZFE UZZ30 | — | |
| 12180-50021 |
Cap Sub-assy, Oil Filler
1993-09 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 12180-50030 |
Cap Sub-assy, Oil Filler
1997-09 → —
|
1UZFE UZZ30 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 12195-20020 |
Gasket(FOR OIL FILLER CAP)
1996-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 12195-46011 |
Gasket(FOR OIL FILLER CAP)
1991-08 → 1996-08
ended
|
2JZGE JZZ31 | — | |
| 12195-50010 |
Gasket(FOR OIL FILLER CAP)
1991-04 → —
|
1UZFE UZZ30 | — | |
| 15044 — Pipe Sub-assy, Camshaft Oil Feed | ||||
| 15044-50010 |
Pipe Sub-assy, Camshaft Oil Feed
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 15044-50020 |
Pipe Sub-assy, Camshaft Oil Feed
1997-09 → —
|
1UZFE UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
