Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

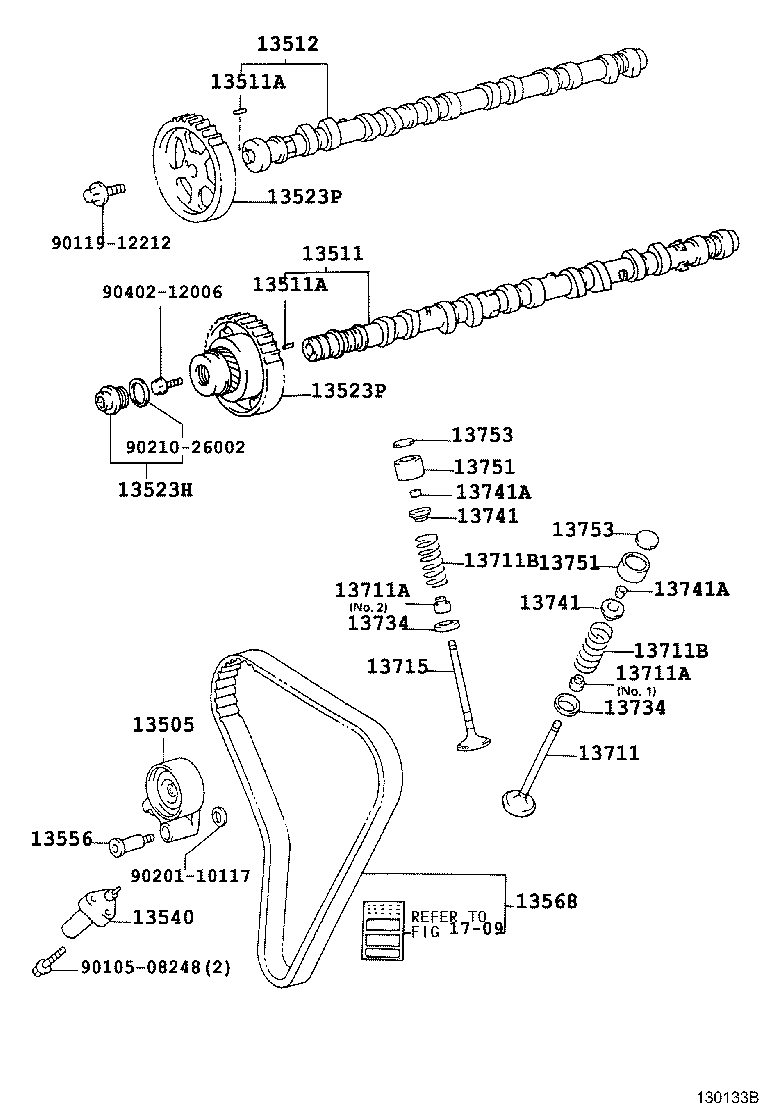

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 13505 — Idler Sub-assy, Timing Belt, NO.1 | ||||
| 13505-46041 |
Idler Sub-assy, Timing Belt, NO.1
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13505-50021 |
Idler Sub-assy, Timing Belt, NO.1
1991-04 → 1994-09
ended
|
1UZFE UZZ30 | — | |
| 13505-50022 |
Idler Sub-assy, Timing Belt, NO.1
1994-09 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13505-50030 |
Idler Sub-assy, Timing Belt, NO.1
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13511 — Camshaft | ||||
| 13501-46030 |
Camshaft
1991-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 13501-46070 |
Camshaft
1997-09 → 1999-08
ended
|
2JZGE JZZ31 | — | |
| 13501-46080 |
Camshaft
1999-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13501-50010 |
Camshaft
1991-04 → 1994-04
ended
|
1UZFE UZZ30 | — | |
| 13501-50011 |
Camshaft
1994-04 → 1995-08
ended
|
1UZFE UZZ30 | — | |
| 13501-50021 |
Camshaft
1995-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13501-50040 |
Camshaft
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13511A — Pin, Straight(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 note |
Pin, Straight(FOR CAMSHAFT KNOCK)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-46011 |
Camshaft, NO.2
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13502-46020 |
Camshaft, NO.2
1991-08 → 1997-07
ended
|
2JZGE JZZ31 | — | |
| 13502-46021 |
Camshaft, NO.2
1997-07 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 13502-50010 |
Camshaft, NO.2
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13502-50020 |
Camshaft, NO.2
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13523H — Plug, Straight Screw W/Head(FOR CAMSHAFT TIMING PULLEY) | ||||
| 90341-27007 |
Plug, Straight Screw W/Head(FOR CAMSHAFT TIMING PULLEY)
1997-09 → 2000-07
ended
|
JZZ31 | — | |
| 13523P — Pulley, Camshaft Timing | ||||
| 13050-46010 note |
Pulley, Camshaft Timing
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13051-50010 |
Pulley, Camshaft Timing
1991-04 → 1994-11
ended
|
1UZFE UZZ30 | — | |
| 13051-50020 |
Pulley, Camshaft Timing
1997-09 → 2000-07
ended
|
1UZFE UZZ30 | — | |
| 13523-46030 |
Pulley, Camshaft Timing
1991-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 13523-46030 note |
Pulley, Camshaft Timing
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13523-50021 |
Pulley, Camshaft Timing
1994-11 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-46011 |
Tensioner Assy, Chain, NO.1
1991-08 → 1994-10
ended
|
2JZGE JZZ31 | — | |
| 13540-46012 |
Tensioner Assy, Chain, NO.1
1994-10 → 1999-07
ended
|
2JZGE JZZ31 | — | |
| 13540-46030 |
Tensioner Assy, Chain, NO.1
1999-07 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13540-50011 |
Tensioner Assy, Chain, NO.1
1991-04 → 2000-04
ended
|
1UZFE UZZ30 | — | |
| 13540-50030 |
Tensioner Assy, Chain, NO.1
2000-04 → —
|
1UZFE UZZ30 | — | |
| 13556 — Shaft, Timing Belt Idler | ||||
| 13556-46010 |
Shaft, Timing Belt Idler
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13556-50010 |
Shaft, Timing Belt Idler
1991-04 → —
|
1UZFE UZZ30 | — | |
| 13568 — Belt, Timing | ||||
| 13568-46020 |
Belt, Timing
1991-08 → 1992-05
ended
|
2JZGE JZZ31 | — | |
| 13568-49035 |
Belt, Timing
1992-05 → 1997-07
ended
|
2JZGE JZZ31 | — | |
| 13568-49036 |
Belt, Timing
1997-07 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13568-50010 |
Belt, Timing
1991-04 → 1992-04
ended
|
1UZFE UZZ30 | — | |
| 13568-59045 |
Belt, Timing
1992-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13568-59095 |
Belt, Timing
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13711 — Valve, Intake | ||||
| 13711-46021 |
Valve, Intake
1991-08 → 1995-08
ended
|
2JZGE JZZ31 | — | |
| 13711-46022 |
Valve, Intake
1995-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13711-50020 |
Valve, Intake
1991-04 → 1994-05
ended
|
1UZFE UZZ30 | — | |
| 13711-50021 |
Valve, Intake
1994-05 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13711-50060 |
Valve, Intake
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13711A — Seal OR Ring, O(FOR VALVE STEM OIL) | ||||
| 90913-02085 |
Seal OR Ring, O(FOR VALVE STEM OIL)
1991-04 → 1994-08
ended
|
1UZFE UZZ30 | — | |
| 90913-02088 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1992-12 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90913-02089 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1991-08 → 1992-12
ended
|
2JZGE JZZ31 | — | |
| 90913-02090 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1991-08 → 1991-11
ended
|
2JZGE JZZ31 | — | |
| 90913-02090 |
Seal OR Ring, O(FOR VALVE STEM OIL)
1994-08 → 1996-08
ended
|
1UZFE UZZ30 | — | |
| 90913-02090 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1996-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90913-02090 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1995-01 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90913-02106 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1993-07 → 1995-01
ended
|
2JZGE JZZ31 | — | |
| 90913-02106 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1996-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90913-02112 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90913-02113 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13711B — Spring, Compression(FOR INNER) | ||||
| 90501-29043 |
Spring, Compression(FOR INNER)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90501-33013 |
Spring, Compression(FOR INNER)
1997-09 → 1998-08
ended
|
2JZGE JZZ31 | — | |
| 90501-33020 |
Spring, Compression(FOR INNER)
1998-08 → 1999-07
ended
|
2JZGE JZZ31 | — | |
| 90504-35001 |
Spring, Compression(FOR INNER)
1991-04 → 1994-08
ended
|
1UZFE UZZ30 | — | |
| 90504-40002 |
Spring, Compression(FOR INNER)
1991-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 90905-01022 |
Spring, Compression(FOR INNER)
1994-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90905-01068 |
Spring, Compression(FOR INNER)
1999-07 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-46020 |
Valve, Exhaust
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13715-50020 |
Valve, Exhaust
1991-04 → 1994-05
ended
|
1UZFE UZZ30 | — | |
| 13715-50021 |
Valve, Exhaust
1994-05 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13715-50060 |
Valve, Exhaust
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13734 — Seat, Valve Spring | ||||
| 13734-62020 |
Seat, Valve Spring
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90201-18015 |
Seat, Valve Spring
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90201-18017 |
Seat, Valve Spring
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-46020 |
Retainer, Valve Spring
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13741-50020 |
Retainer, Valve Spring
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13741-50030 |
Retainer, Valve Spring
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03021 |
Lock, Valve Spring Retainer
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90913-03025 |
Lock, Valve Spring Retainer
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13751 — Lifter, Valve | ||||
| 13750-50020 |
Lifter, Valve
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13751-50030 |
Lifter, Valve
1997-09 → 1998-10
ended
|
1UZFE UZZ30 | — | |
| 13751-50031 |
Lifter, Valve
1998-10 → —
|
1UZFE UZZ30 | — | |
| 13751-74020 |
Lifter, Valve
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753 — Shim, Valve Adjusting | ||||
| 13753-22020 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22030 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22040 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22050 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22060 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22070 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22080 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22090 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22100 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22110 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22120 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22130 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22140 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22150 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22160 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22170 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22180 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22190 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22200 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22210 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22220 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22230 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22240 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22250 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22260 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22270 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22280 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22290 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22300 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22310 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22320 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22330 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22340 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22350 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22360 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22370 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22380 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22390 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22400 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22410 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-22420 note |
Shim, Valve Adjusting
1997-09 → —
|
1UZFE UZZ30 | — | |
| 13753-50010 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50060 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50130 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50180 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50230 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50280 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50330 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50380 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50430 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50480 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50510 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50560 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50610 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50620 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50630 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50640 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50650 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50660 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50670 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50680 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50690 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50700 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50710 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50720 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50730 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50740 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50750 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50760 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50770 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50780 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50790 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50800 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-50810 note |
Shim, Valve Adjusting
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 13753-74010 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74030 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74050 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74070 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74090 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74110 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74130 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74150 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74170 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74190 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74210 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74230 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74250 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74270 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74290 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74310 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 13753-74330 note |
Shim, Valve Adjusting
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
