Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

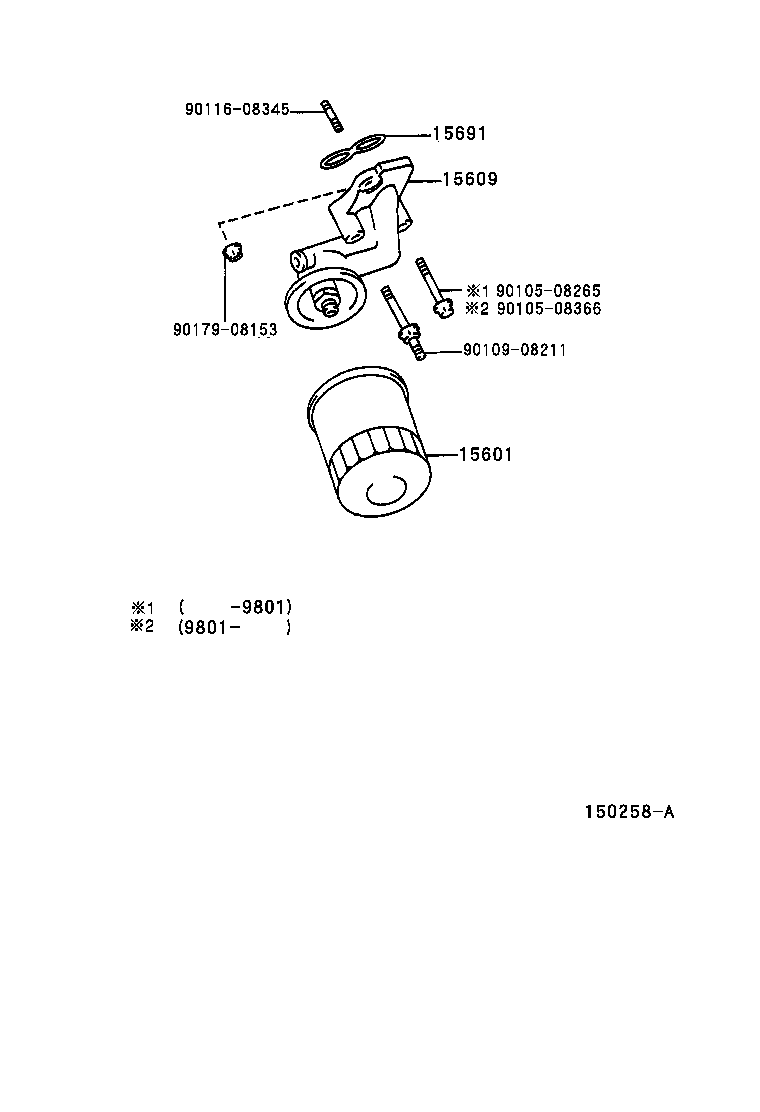

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-03002 |
Filter Sub-assy, Oil
1991-08 → 1992-04
ended
|
2JZGE JZZ31 | — | |
| 90915-03005 |
Filter Sub-assy, Oil
1991-04 → 1992-04
ended
|
1UZFE UZZ30 | — | |
| 90915-20001 |
Filter Sub-assy, Oil
1992-04 → 1993-08
ended
|
2JZGE JZZ31 | — | |
| 90915-20001 |
Filter Sub-assy, Oil
1993-10 → 1999-08
ended
|
2JZGE JZZ31 | — | |
| 90915-20002 |
Filter Sub-assy, Oil
1992-04 → 1999-08
ended
|
1UZFE UZZ30 | — | |
| 90915-20003 |
Filter Sub-assy, Oil
1999-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90915-20004 |
Filter Sub-assy, Oil
1999-08 → —
|
1UZFE UZZ30 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-50040 |
Bracket Sub-assy, Oil Filter
1991-04 → —
|
1UZFE UZZ30 | — | |
| 15691 — Gasket, Oil Filter | ||||
| 15692-50020 |
Gasket, Oil Filter
1991-04 → —
|
1UZFE UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
