Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

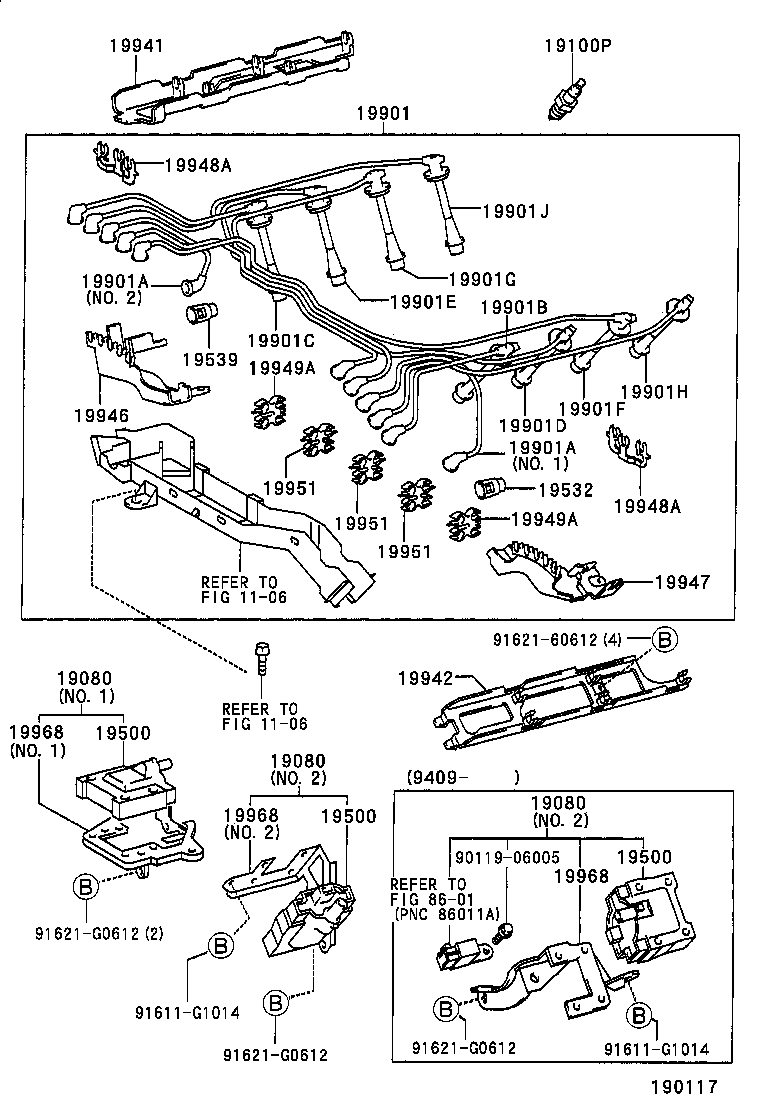

Exploded illustration 190117 19941 — CLAMP, RESISTIVE CORD, NO.1 (3 parts) 19100P — PLUG, SPARK (9 parts) 19901 — CORD SET, COIL & SPARK, W/RESISTIVE (3 parts) 19948A — CLAMP, CORD, NO.5 (1 parts) 19901J — CORD, SPARK PLUG RESISTIVE, NO.8 (2 parts) 19901G — CORD, SPARK PLUG RESISTIVE, NO.6 (3 parts) 19901A — CORD, COIL RESISTIVE (4 parts) 19901E — CORD, SPARK PLUG RESISTIVE, NO.4 (3 parts) 19901B — CORD, SPARK PLUG RESISTIVE, NO.1 (4 parts) 19901C — CORD, SPARK PLUG RESISTIVE, NO.2 (4 parts) 19539 — HOLDER, RESISTIVE CODE, NO.4 (6 parts) 19949A — CLAMP, CORD, NO.6 (2 parts) 19901H — CORD, SPARK PLUG RESISTIVE, NO.7 (2 parts) 19901F — CORD, SPARK PLUG RESISTIVE, NO.5 (3 parts) 19946 — CLAMP, RESISTIVE CORD, NO.3 (2 parts) 19901D — CORD, SPARK PLUG RESISTIVE, NO.3 (4 parts) 19901A — CORD, COIL RESISTIVE (4 parts) 19951 — CLAMP, CORD, NO.7 (1 parts) 19532 — HOLDER, RESISTIVE CODE, NO.2 (3 parts) 19948A — CLAMP, CORD, NO.5 (1 parts) 19949A — CLAMP, CORD, NO.6 (2 parts) 19951 — CLAMP, CORD, NO.7 (1 parts) 19951 — CLAMP, CORD, NO.7 (1 parts) 19947 — CLAMP, RESISTIVE CORD, NO.4 (2 parts) 1106 — not listed in this catalogue 9162160612 — not listed in this catalogue 19080 — COIL ASSY, W/BRACKET & CORD (5 parts) 19942 — CLAMP, RESISTIVE CORD, NO.2 (3 parts) 1106 — not listed in this catalogue 19968 — BRACKET, IGNITION COIL (4 parts) 19500 — COIL ASSY, IGNITION (4 parts) 19080 — COIL ASSY, W/BRACKET & CORD (5 parts) 19080 — COIL ASSY, W/BRACKET & CORD (5 parts) 19968 — BRACKET, IGNITION COIL (4 parts) 19500 — COIL ASSY, IGNITION (4 parts) 19500 — COIL ASSY, IGNITION (4 parts) 9011906005 — not listed in this catalogue 19968 — BRACKET, IGNITION COIL (4 parts) 8601 — not listed in this catalogue 91621G0612 — not listed in this catalogue 91611G1014 — not listed in this catalogue 91621G0612 — not listed in this catalogue 91611G1014 — not listed in this catalogue 91621G0612 — not listed in this catalogue
190117 · 34 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
19080 — Coil Assy, W/Bracket & Cord
19080-46020 Coil Assy, W/Bracket & Cord
1991-08 → 1997-09 ended
2JZGE JZZ31 —
19080-50010 note Coil Assy, W/Bracket & Cord
1991-04 → 1994-09 ended
1UZFE UZZ30 —
19080-50011 note Coil Assy, W/Bracket & Cord
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19090-50010 note Coil Assy, W/Bracket & Cord
1991-04 → 1994-09 ended
1UZFE UZZ30 —
19090-50011 note Coil Assy, W/Bracket & Cord
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19100P — Plug, Spark
90919-01168 note Plug, Spark
1994-01 → 1997-09 ended
2JZGE JZZ31 —
90919-01178 note Plug, Spark
1991-04 → 1994-01 ended
1UZFE UZZ30 —
90919-01178 note Plug, Spark
1991-08 → 1994-01 ended
2JZGE JZZ31 —
90919-01178 note Plug, Spark
1994-01 → 1996-08 ended
1UZFE UZZ30 —
90919-01178 note Plug, Spark
1996-08 → 1997-09 ended
1UZFE UZZ30 —
90919-01179 note Plug, Spark
1991-04 → 1994-01 ended
1UZFE UZZ30 —
90919-01196 note Plug, Spark
1997-09 → 2000-07 ended
2JZGE JZZ31 —
90919-01197 note Plug, Spark
1997-09 → 2000-07 ended
2JZGE JZZ31 —
90919-01210 note Plug, Spark
1997-09 → 2000-07 ended
1UZFE UZZ30 —
19500 — Coil Assy, Ignition
90919-02197 Coil Assy, Ignition
1991-04 → 1997-09 ended
1UZFE UZZ30 —
90919-02207 Coil Assy, Ignition
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-02216 Coil Assy, Ignition
1997-09 → 2000-07 ended
2JZGE JZZ31 —
90919-02228 Coil Assy, Ignition
1997-09 → —
1UZFE UZZ30 —
19532 — Holder, Resistive Code, NO.2
19532-46010 Holder, Resistive Code, NO.2
1991-08 → 2000-07 ended
2JZGE JZZ31 —
19532-50010 Holder, Resistive Code, NO.2
1991-04 → 1994-09 ended
1UZFE UZZ30 —
19539-46010 Holder, Resistive Code, NO.2
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19539 — Holder, Resistive Code, NO.4
19539-11010 note Holder, Resistive Code, NO.4
1991-08 → 1997-09 ended
2JZGE JZZ31 —
19539-16010 note Holder, Resistive Code, NO.4
1991-08 → 1993-03 ended
2JZGE JZZ31 —
19539-46010 note Holder, Resistive Code, NO.4
1991-08 → 1997-09 ended
2JZGE JZZ31 —
19539-50010 Holder, Resistive Code, NO.4
1991-04 → 1997-09 ended
1UZFE UZZ30 —
19539-50010 note Holder, Resistive Code, NO.4
1993-03 → 1997-09 ended
2JZGE JZZ31 —
19539-62010 note Holder, Resistive Code, NO.4
1991-08 → 1997-09 ended
2JZGE JZZ31 —
19901 — Cord Set, Coil & Spark, W/Resistive
90919-21521 Cord Set, Coil & Spark, W/Resistive
1991-11 → 1997-09 ended
2JZGE JZZ31 —
90919-22262 Cord Set, Coil & Spark, W/Resistive
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-22379 Cord Set, Coil & Spark, W/Resistive
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19901A — Cord, Coil Resistive
90919-13333 note Cord, Coil Resistive
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-13334 note Cord, Coil Resistive
1991-04 → 1997-09 ended
1UZFE UZZ30 —
90919-13411 Cord, Coil Resistive
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-13462 note Cord, Coil Resistive
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19901B — Cord, Spark Plug Resistive, NO.1
90919-12967 Cord, Spark Plug Resistive, NO.1
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15317 Cord, Spark Plug Resistive, NO.1
1997-09 → 2000-07 ended
2JZGE JZZ31 —
90919-15325 Cord, Spark Plug Resistive, NO.1
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-15444 Cord, Spark Plug Resistive, NO.1
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19901C — Cord, Spark Plug Resistive, NO.2
90919-12968 Cord, Spark Plug Resistive, NO.2
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15326 Cord, Spark Plug Resistive, NO.2
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-15445 Cord, Spark Plug Resistive, NO.2
1994-09 → 1997-09 ended
1UZFE UZZ30 —
90919-15456 Cord, Spark Plug Resistive, NO.2
1997-09 → 2000-07 ended
2JZGE JZZ31 —
19901D — Cord, Spark Plug Resistive, NO.3
90919-12969 Cord, Spark Plug Resistive, NO.3
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15327 Cord, Spark Plug Resistive, NO.3
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-15446 Cord, Spark Plug Resistive, NO.3
1994-09 → 1997-09 ended
1UZFE UZZ30 —
90919-15457 Cord, Spark Plug Resistive, NO.3
1997-09 → 2000-07 ended
2JZGE JZZ31 —
19901E — Cord, Spark Plug Resistive, NO.4
90919-12970 Cord, Spark Plug Resistive, NO.4
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15328 Cord, Spark Plug Resistive, NO.4
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-15447 Cord, Spark Plug Resistive, NO.4
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19901F — Cord, Spark Plug Resistive, NO.5
90919-12946 Cord, Spark Plug Resistive, NO.5
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-12971 Cord, Spark Plug Resistive, NO.5
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15448 Cord, Spark Plug Resistive, NO.5
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19901G — Cord, Spark Plug Resistive, NO.6
90919-12972 Cord, Spark Plug Resistive, NO.6
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15329 Cord, Spark Plug Resistive, NO.6
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90919-15449 Cord, Spark Plug Resistive, NO.6
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19901H — Cord, Spark Plug Resistive, NO.7
90919-12973 Cord, Spark Plug Resistive, NO.7
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15450 Cord, Spark Plug Resistive, NO.7
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19901J — Cord, Spark Plug Resistive, NO.8
90919-12974 Cord, Spark Plug Resistive, NO.8
1991-04 → 1994-09 ended
1UZFE UZZ30 —
90919-15451 Cord, Spark Plug Resistive, NO.8
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19941 — Clamp, Resistive Cord, NO.1
19941-50020 Clamp, Resistive Cord, NO.1
1991-04 → 1997-09 ended
1UZFE UZZ30 —
90929-01277 Clamp, Resistive Cord, NO.1
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90929-01361 Clamp, Resistive Cord, NO.1
1997-09 → 2000-07 ended
2JZGE JZZ31 —
19942 — Clamp, Resistive Cord, NO.2
19942-50020 Clamp, Resistive Cord, NO.2
1991-04 → 1997-09 ended
1UZFE UZZ30 —
90929-01278 Clamp, Resistive Cord, NO.2
1991-08 → 1997-09 ended
2JZGE JZZ31 —
90929-01360 Clamp, Resistive Cord, NO.2
1997-09 → 2000-07 ended
2JZGE JZZ31 —
19946 — Clamp, Resistive Cord, NO.3
19941-46010 Clamp, Resistive Cord, NO.3
1991-08 → 1997-09 ended
2JZGE JZZ31 —
19946-50010 Clamp, Resistive Cord, NO.3
1991-04 → 1997-09 ended
1UZFE UZZ30 —
19947 — Clamp, Resistive Cord, NO.4
19947-50020 Clamp, Resistive Cord, NO.4
1991-04 → 1997-09 ended
1UZFE UZZ30 —
90929-01280 Clamp, Resistive Cord, NO.4
1991-08 → 1997-09 ended
2JZGE JZZ31 —
19948A — Clamp, Cord, NO.5
19948-50010 Clamp, Cord, NO.5
1991-04 → 1997-09 ended
1UZFE UZZ30 —
19949A — Clamp, Cord, NO.6
19949-50010 Clamp, Cord, NO.6
1991-04 → 1997-09 ended
1UZFE UZZ30 —
19949-50010 Clamp, Cord, NO.6
1991-08 → 1997-09 ended
2JZGE JZZ31 —
19951 — Clamp, Cord, NO.7
19951-50010 Clamp, Cord, NO.7
1991-04 → 1997-09 ended
1UZFE UZZ30 —
19968 — Bracket, Ignition Coil
19968-50010 note Bracket, Ignition Coil
1991-04 → 1994-09 ended
1UZFE UZZ30 —
19968-50011 note Bracket, Ignition Coil
1994-09 → 1997-09 ended
1UZFE UZZ30 —
19969-50010 note Bracket, Ignition Coil
1991-04 → 1994-09 ended
1UZFE UZZ30 —
19969-50011 note Bracket, Ignition Coil
1994-09 → 1997-09 ended
1UZFE UZZ30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
