Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

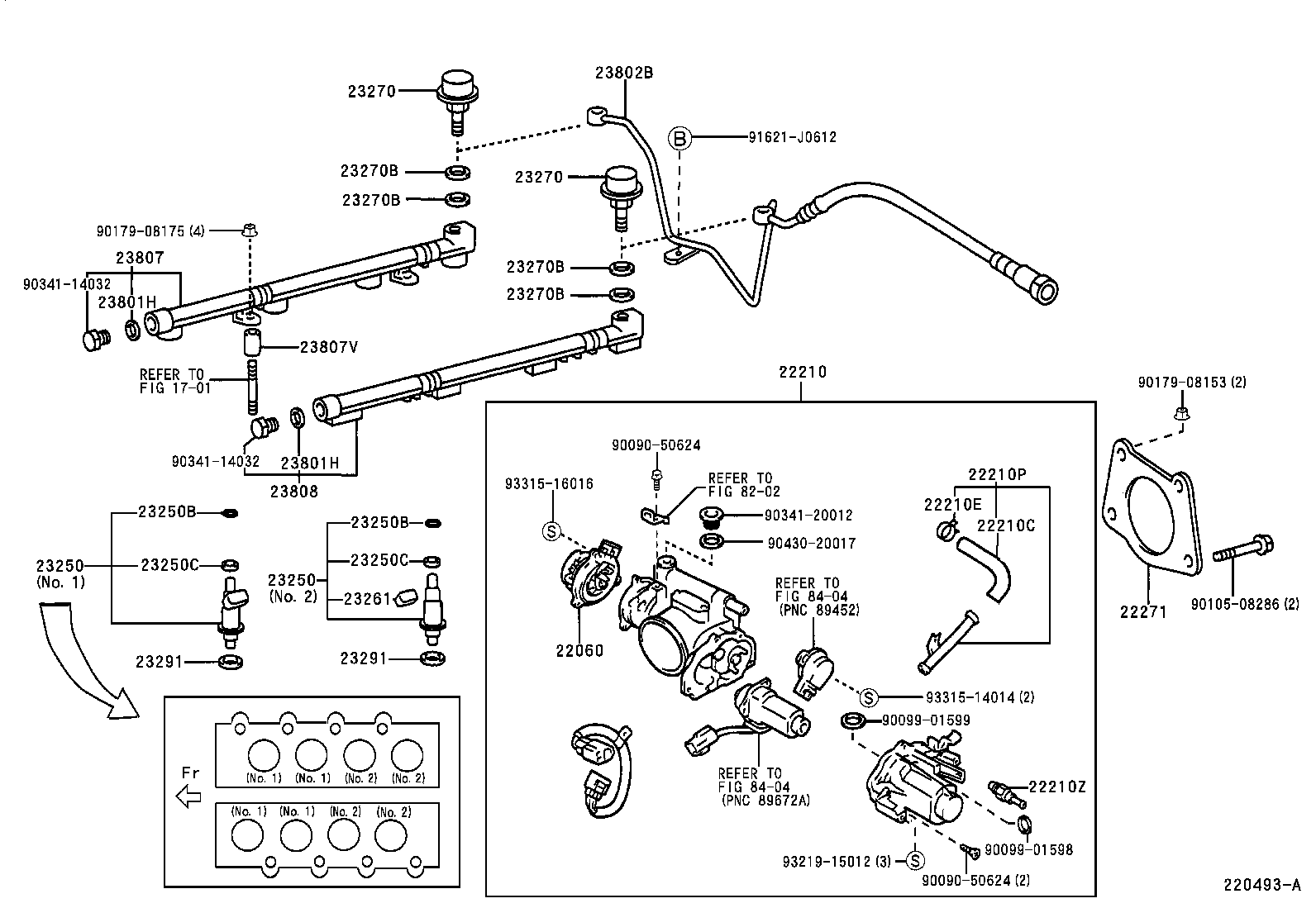

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22060 — Lever Assy, Throttle W/Sensor | ||||
| 22060-46010 |
Lever Assy, Throttle W/Sensor
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 22060-50010 |
Lever Assy, Throttle W/Sensor
1997-09 → 1999-05
ended
|
1UZFE UZZ30 | — | |
| 22060-50011 |
Lever Assy, Throttle W/Sensor
1999-05 → —
|
1UZFE UZZ30 | — | |
| 22210 — Body Assy, Throttle | ||||
| 22030-46120 |
Body Assy, Throttle
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 22030-50011 note |
Body Assy, Throttle
1991-04 → 1992-08
ended
|
1UZFE UZZ30 | — | |
| 22030-50012 note |
Body Assy, Throttle
1992-08 → 1994-01
ended
|
1UZFE UZZ30 | — | |
| 22030-50070 note |
Body Assy, Throttle
1994-01 → 1994-09
ended
|
1UZFE UZZ30 | — | |
| 22030-50072 note |
Body Assy, Throttle
1994-09 → 1995-08
ended
|
1UZFE UZZ30 | — | |
| 22030-50073 note |
Body Assy, Throttle
1995-08 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 22030-50110 |
Body Assy, Throttle
1997-09 → —
|
1UZFE UZZ30 | — | |
| 22210-46100 |
Body Assy, Throttle
1991-11 → 1992-05
ended
|
2JZGE JZZ31 5F | — | |
| 22210-46101 |
Body Assy, Throttle
1992-05 → 1995-08
ended
|
2JZGE JZZ31 5F | — | |
| 22210-46110 |
Body Assy, Throttle
1991-08 → 1992-05
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46111 |
Body Assy, Throttle
1992-05 → 1995-08
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46130 note |
Body Assy, Throttle
1991-08 → 1992-05
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46131 note |
Body Assy, Throttle
1992-05 → 1995-08
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46160 note |
Body Assy, Throttle
1994-01 → 1995-08
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46160 |
Body Assy, Throttle
1995-08 → 1997-09
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46170 note |
Body Assy, Throttle
1994-01 → 1995-08
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46170 note |
Body Assy, Throttle
1995-08 → 1997-09
ended
|
2JZGE JZZ31 4FC | — | |
| 22210-46210 |
Body Assy, Throttle
1995-08 → 1997-09
ended
|
2JZGE JZZ31 5F | — | |
| 22210-46210 note |
Body Assy, Throttle
1994-01 → 1995-08
ended
|
2JZGE JZZ31 5F | — | |
| 22210-50011 |
Body Assy, Throttle
1991-04 → 1992-08
ended
|
1UZFE UZZ30 USA | — | |
| 22210-50012 |
Body Assy, Throttle
1992-08 → 1994-01
ended
|
1UZFE UZZ30 USA | — | |
| 22210-50080 |
Body Assy, Throttle
1994-01 → 1994-09
ended
|
1UZFE UZZ30 USA | — | |
| 22210-50082 |
Body Assy, Throttle
1994-09 → 1995-08
ended
|
1UZFE UZZ30 USA | — | |
| 22210-50100 |
Body Assy, Throttle
1995-08 → 1997-09
ended
|
1UZFE UZZ30 USA | — | |
| 22210C — Hose, Water By-pass, NO.1 | ||||
| 16282-50030 |
Hose, Water By-pass, NO.1
1997-09 → —
|
1UZFE UZZ30 | — | |
| 22210E — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-20011 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 22210P — Pipe, Water By-pass | ||||
| 16025-50020 |
Pipe, Water By-pass
1997-09 → —
|
1UZFE UZZ30 | — | |
| 22210Z — Thermostat, Manifold | ||||
| 90916-03104 |
Thermostat, Manifold
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90916-03104 |
Thermostat, Manifold
1997-09 → —
|
1UZFE UZZ30 | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-46020 |
Gasket, Throttle Body
1991-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 22271-46070 |
Gasket, Throttle Body
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 22271-50010 |
Gasket, Throttle Body
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 22271-50040 |
Gasket, Throttle Body
1997-09 → 1998-08
ended
|
1UZFE UZZ30 | — | |
| 22271-50041 |
Gasket, Throttle Body
1998-08 → 2000-06
ended
|
1UZFE UZZ30 | — | |
| 22271-50042 |
Gasket, Throttle Body
2000-06 → 2000-07
ended
|
1UZFE UZZ30 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-46030 |
Injector Assy, Fuel
1991-08 → 1995-08
ended
|
2JZGE JZZ31 | — | |
| 23209-46050 note |
Injector Assy, Fuel
1994-01 → 1995-08
ended
|
2JZGE JZZ31 | — | |
| 23209-46050 |
Injector Assy, Fuel
1995-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 23209-46090 |
Injector Assy, Fuel
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 23209-50020 |
Injector Assy, Fuel
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 23209-50030 note |
Injector Assy, Fuel
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23209-50050 note |
Injector Assy, Fuel
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
Ring, O(FOR FUEL INJECTOR)
1991-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 90301-07001 |
Ring, O(FOR FUEL INJECTOR)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90301-07024 |
Ring, O(FOR FUEL INJECTOR)
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90301-07024 |
Ring, O(FOR FUEL INJECTOR)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23250C — Grommet(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
Grommet(FOR FUEL INJECTOR)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90480-13005 |
Grommet(FOR FUEL INJECTOR)
1991-04 → —
|
1UZFE UZZ30 | — | |
| 23261 — Cover, Injector | ||||
| 23261-50010 |
Cover, Injector
1997-09 → 1998-01
ended
|
1UZFE UZZ30 | — | |
| 23261-50011 |
Cover, Injector
1998-01 → —
|
1UZFE UZZ30 | — | |
| 23270 — Damper Assy, Fuel Pressure Pulsation | ||||
| 23207-46021 |
Damper Assy, Fuel Pressure Pulsation
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 23270-50010 |
Damper Assy, Fuel Pressure Pulsation
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 23270-50010 |
Damper Assy, Fuel Pressure Pulsation
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23270B — Gasket(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 note |
Gasket(FOR PULSATION DAMPER HOSE)
1991-04 → 1991-05
ended
|
1UZFE UZZ30 | — | |
| 23232-41081 note |
Gasket(FOR PULSATION DAMPER HOSE)
1991-05 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 23232-41081 note |
Gasket(FOR PULSATION DAMPER HOSE)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 90430-12005 note |
Gasket(FOR PULSATION DAMPER HOSE)
1991-04 → 1991-05
ended
|
1UZFE UZZ30 | — | |
| 90430-12026 note |
Gasket(FOR PULSATION DAMPER HOSE)
1991-05 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90430-12026 |
Gasket(FOR PULSATION DAMPER HOSE)
1991-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 90430-12026 note |
Gasket(FOR PULSATION DAMPER HOSE)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-20010 |
Insulator, Injector Vibration
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23291-41010 |
Insulator, Injector Vibration
1991-10 → 1993-09
ended
|
2JZGE JZZ31 | — | |
| 23291-41010 |
Insulator, Injector Vibration
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 23291-46010 |
Insulator, Injector Vibration
1993-09 → 1995-08
ended
|
2JZGE JZZ31 | — | |
| 23291-62010 note |
Insulator, Injector Vibration
1994-01 → 1995-08
ended
|
2JZGE JZZ31 | — | |
| 23291-62010 |
Insulator, Injector Vibration
1995-08 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 23291-73010 |
Insulator, Injector Vibration
1991-08 → 1991-10
ended
|
2JZGE JZZ31 | — | |
| 23801H — Gasket(FOR FUEL PIPE) | ||||
| 90430-12026 |
Gasket(FOR FUEL PIPE)
1991-04 → 1997-09
ended
|
1UZFE UZZ30 | — | |
| 90430-14008 |
Gasket(FOR FUEL PIPE)
1991-08 → 1996-08
ended
|
2JZGE JZZ31 | — | |
| 90430-14008 |
Gasket(FOR FUEL PIPE)
1996-08 → 2000-07
ended
|
2JZGE JZZ31 4FC | — | |
| 90430-14008 |
Gasket(FOR FUEL PIPE)
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23802B — Pipe Sub-assy, Fuel, NO.2 | ||||
| 23802-46030 |
Pipe Sub-assy, Fuel, NO.2
1991-08 → 1993-11
ended
|
2JZGE JZZ31 | — | |
| 23802-46060 |
Pipe Sub-assy, Fuel, NO.2
1993-11 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 23802-50010 |
Pipe Sub-assy, Fuel, NO.2
1991-04 → 1992-08
ended
|
1UZFE UZZ30 | — | |
| 23802-50011 |
Pipe Sub-assy, Fuel, NO.2
1992-08 → 1995-08
ended
|
1UZFE UZZ30 | — | |
| 23802-50030 |
Pipe Sub-assy, Fuel, NO.2
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23807-46020 |
Pipe Sub-assy, Fuel Delivery
1991-08 → 1992-08
ended
|
2JZGE JZZ31 | — | |
| 23807-46021 |
Pipe Sub-assy, Fuel Delivery
1992-08 → 1997-09
ended
|
2JZGE JZZ31 | — | |
| 23807-46030 |
Pipe Sub-assy, Fuel Delivery
1997-09 → 2000-07
ended
|
2JZGE JZZ31 | — | |
| 23807-50010 |
Pipe Sub-assy, Fuel Delivery
1991-04 → 1994-01
ended
|
1UZFE UZZ30 | — | |
| 23807-50020 |
Pipe Sub-assy, Fuel Delivery
1994-01 → 1995-08
ended
|
1UZFE UZZ30 | — | |
| 23807-50030 |
Pipe Sub-assy, Fuel Delivery
1997-09 → —
|
1UZFE UZZ30 | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08029 |
Spacer, NO.1(FOR DELIVERY PIPE)
1991-04 → —
|
1UZFE UZZ30 | — | |
| 23808 — Pipe Sub-assy, Fuel Delivery, NO.2 | ||||
| 23808-50010 |
Pipe Sub-assy, Fuel Delivery, NO.2
1991-04 → 1995-08
ended
|
1UZFE UZZ30 | — | |
| 23808-50020 |
Pipe Sub-assy, Fuel Delivery, NO.2
1997-09 → —
|
1UZFE UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
