Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

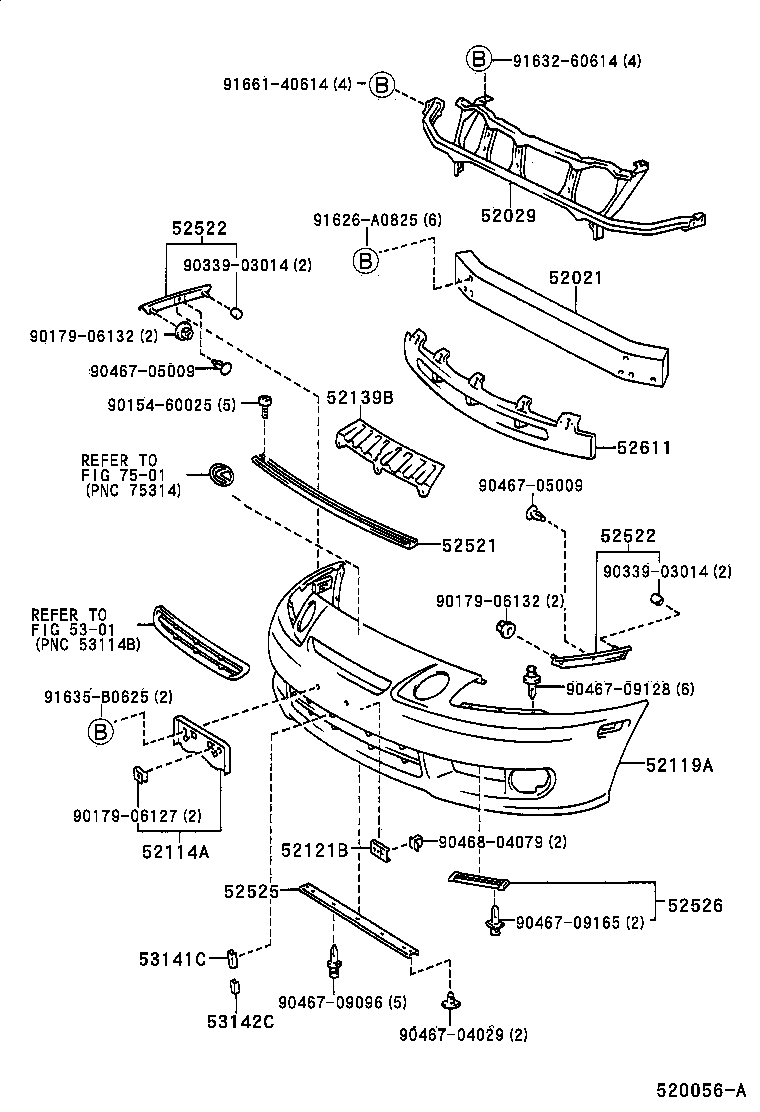

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021 — Reinforcement Sub-assy, Front Bumper | ||||
| 52021-24040 |
Reinforcement Sub-assy, Front Bumper
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 52021-24041 |
Reinforcement Sub-assy, Front Bumper
1994-01 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 52131-24050 |
Reinforcement Sub-assy, Front Bumper
1996-08 → —
|
JZZ31,UZZ30 | — | |
| 52029 — Reinforcement Sub-assy, Front Bumper, Upper | ||||
| 52029-24030 |
Reinforcement Sub-assy, Front Bumper, Upper
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-24020 |
Bracket, Front Bumper Extension Mounting
1991-04 → 1993-09
ended
|
JZZ31,UZZ30 | — | |
| 52114-24021 |
Bracket, Front Bumper Extension Mounting
1993-09 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 52114-24040 |
Bracket, Front Bumper Extension Mounting
1996-08 → —
|
JZZ31,UZZ30 | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-24903 |
Cover, Front Bumper
1991-04 → 1991-11
ended
|
UZZ30 | — | |
| 52119-24904 |
Cover, Front Bumper
1991-08 → 1991-11
ended
|
JZZ31 | — | |
| 52119-24905 |
Cover, Front Bumper
1991-11 → 1994-01
ended
|
UZZ30 | — | |
| 52119-24906 |
Cover, Front Bumper
1991-11 → 1994-01
ended
|
JZZ31 | — | |
| 52119-24908 |
Cover, Front Bumper
1994-01 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 52119-24914 |
Cover, Front Bumper
1996-08 → —
|
JZZ31,UZZ30 | — | |
| 52121B — Bracket, Front Licence Plate Mounting | ||||
| 52121-16030 |
Bracket, Front Licence Plate Mounting
1991-04 → 1991-11
ended
|
JZZ31,UZZ30 | — | |
| 52121-24020 |
Bracket, Front Licence Plate Mounting
1991-11 → —
|
JZZ31,UZZ30 | — | |
| 52139B — Brace, Front Bumper, Center | ||||
| 52139-24010 |
Brace, Front Bumper, Center
1996-08 → —
|
JZZ31,UZZ30 | — | |
| 52521 — Retainer, Front Bumper, Upper Center | ||||
| 52521-24040 |
Retainer, Front Bumper, Upper Center
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 52522 — Retainer, Front Bumper Upper Side | ||||
| 52522-24010 |
Retainer, Front Bumper Upper Side
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 52525 — Retainer, Front Bumper, Lower Center | ||||
| 52525-24020 |
Retainer, Front Bumper, Lower Center
1996-08 → —
|
JZZ31,UZZ30 | — | |
| 52525-24030 |
Retainer, Front Bumper, Lower Center
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 52525-24040 |
Retainer, Front Bumper, Lower Center
1994-01 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 52526 — Retainer, Front Bumper, Lower Side | ||||
| 52526-24030 |
Retainer, Front Bumper, Lower Side
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 52526-24040 |
Retainer, Front Bumper, Lower Side
1994-01 → —
|
JZZ31,UZZ30 | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-24030 |
Absorber, Front Bumper Energy
1996-08 → —
|
JZZ31,UZZ30 | — | |
| 52611-24040 |
Absorber, Front Bumper Energy
1991-04 → 1991-11
ended
|
JZZ31,UZZ30 | — | |
| 52611-24041 |
Absorber, Front Bumper Energy
1991-11 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 53141C — Garnish, Radiator Grille | ||||
| 53141-24010 |
Garnish, Radiator Grille
1996-08 → —
|
JZZ31,UZZ30 | — | |
| 53142C — Garnish, Radiator Grille, NO.2 | ||||
| 53142-24010 |
Garnish, Radiator Grille, NO.2
1996-08 → —
|
JZZ31,UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
