Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

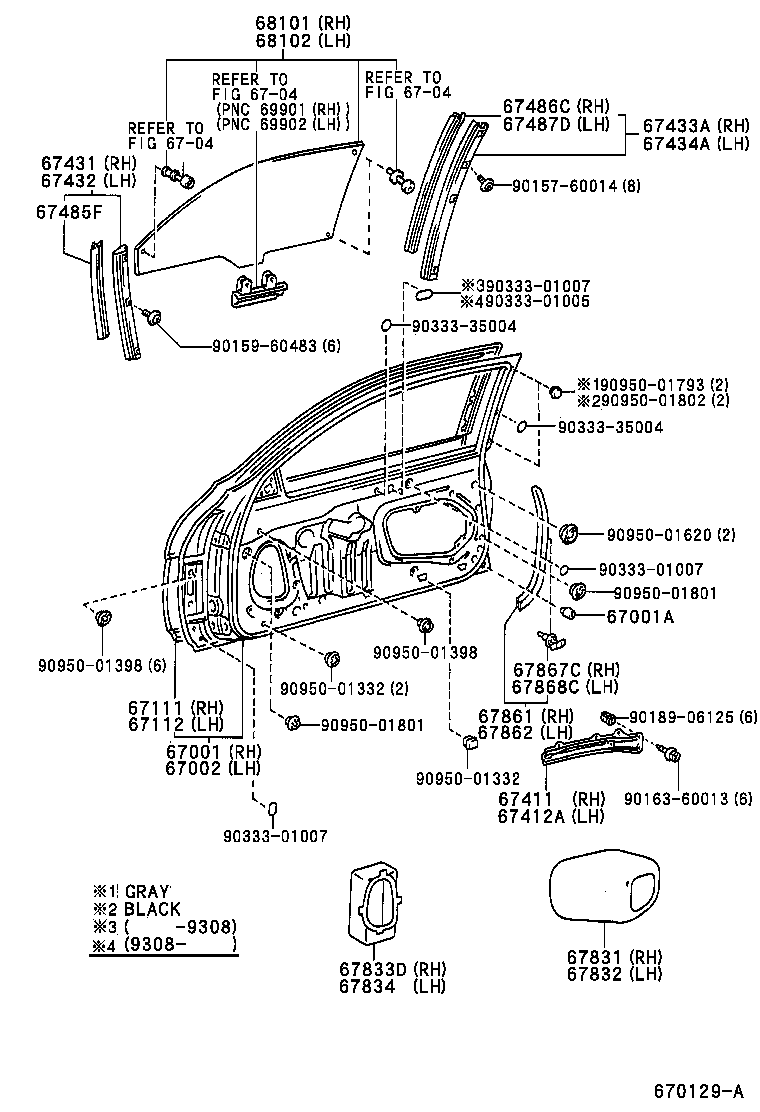

Exploded illustration 670129A 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (3 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (3 parts) 6704 — not listed in this catalogue 6704 — not listed in this catalogue 67486C — WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.2 (1 parts) 67487D — WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.3 (1 parts) 67433A — GUIDE, FRONT DOOR WINDOW, REAR RH (1 parts) 6704 — not listed in this catalogue 67434A — GUIDE, FRONT DOOR WINDOW, REAR LH (1 parts) 67431 — GUIDE, FRONT DOOR WINDOW, FRONT RH (1 parts) 67432 — GUIDE, FRONT DOOR WINDOW, FRONT LH (1 parts) 9015760014 — not listed in this catalogue 67485F — WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.1 (2 parts) 9033301007 — not listed in this catalogue 9033301005 — not listed in this catalogue 9033335004 — not listed in this catalogue 9015960483 — not listed in this catalogue 9095001793 — not listed in this catalogue 9095001802 — not listed in this catalogue 9033335004 — not listed in this catalogue 9095001620 — not listed in this catalogue 9033301007 — not listed in this catalogue 9095001801 — not listed in this catalogue 67001A — CUSHION, FRONT DOOR PANEL (2 parts) 9095001398 — not listed in this catalogue 9095001398 — not listed in this catalogue 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (1 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (1 parts) 9095001332 — not listed in this catalogue 67111 — PANEL, FRONT DOOR, OUTER RH (1 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (1 parts) 9018906125 — not listed in this catalogue 67112 — PANEL, FRONT DOOR, OUTER LH (1 parts) 9095001801 — not listed in this catalogue 67862 — WEATHERSTRIP, FRONT DOOR, LH (1 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (1 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (1 parts) 9095001332 — not listed in this catalogue 67411 — FRAME, FRONT DOOR WINDOW, FRONT UPPER RH (1 parts) 9016360013 — not listed in this catalogue 67412A — FRAME, FRONT DOOR WINDOW, FRONT UPPER LH (1 parts) 9033301007 — not listed in this catalogue 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (2 parts) 67833D — COVER, FRONT DOOR SERVICE HOLE, NO.2 RH (1 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (1 parts) 67834 — COVER, FRONT DOOR SERVICE HOLE, NO.2 LH (1 parts)
670129A · 24 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-24050 Panel Sub-assy, Front Door, RH
1991-04 → 2000-07 ended
JZZ31,UZZ30 —
67001A — Cushion, Front Door Panel
90541-09017 Cushion, Front Door Panel
1994-01 → —
JZZ31,UZZ30 —
90541-09084 Cushion, Front Door Panel
1991-04 → 1994-01 ended
JZZ31,UZZ30 —
67002 — Panel Sub-assy, Front Door, LH
67002-24050 Panel Sub-assy, Front Door, LH
1991-04 → —
JZZ31,UZZ30 —
67111 — Panel, Front Door, Outer RH
67111-24040 Panel, Front Door, Outer RH
1991-04 → —
JZZ31,UZZ30 —
67112 — Panel, Front Door, Outer LH
67112-24040 Panel, Front Door, Outer LH
1991-04 → —
JZZ31,UZZ30 —
67411 — Frame, Front Door Window, Front Upper RH
67411-24040 Frame, Front Door Window, Front Upper RH
1991-04 → —
JZZ31,UZZ30 —
67412A — Frame, Front Door Window, Front Upper LH
67412-24040 Frame, Front Door Window, Front Upper LH
1991-04 → —
JZZ31,UZZ30 —
67431 — Guide, Front Door Window, Front RH
67431-24030 Guide, Front Door Window, Front RH
1991-04 → —
JZZ31,UZZ30 —
67432 — Guide, Front Door Window, Front LH
67432-24030 Guide, Front Door Window, Front LH
1991-04 → —
JZZ31,UZZ30 —
67433A — Guide, Front Door Window, Rear RH
67433-24030 Guide, Front Door Window, Rear RH
1991-04 → —
JZZ31,UZZ30 —
67434A — Guide, Front Door Window, Rear LH
67434-24030 Guide, Front Door Window, Rear LH
1991-04 → —
JZZ31,UZZ30 —
67485F — Weatherstrip, Front Door Glass Guide, NO.1
67485-24030 note Weatherstrip, Front Door Glass Guide, NO.1
1991-04 → —
JZZ31,UZZ30 —
67485-24040 note Weatherstrip, Front Door Glass Guide, NO.1
1991-04 → —
JZZ31,UZZ30 —
67486C — Weatherstrip, Front Door Glass Guide, NO.2
67486-24020 Weatherstrip, Front Door Glass Guide, NO.2
1991-04 → —
JZZ31,UZZ30 —
67487D — Weatherstrip, Front Door Glass Guide, NO.3
67487-24020 Weatherstrip, Front Door Glass Guide, NO.3
1991-04 → —
JZZ31,UZZ30 —
67831 — Cover, Front Door Service Hole, RH
67801-24020 Cover, Front Door Service Hole, RH
1991-04 → 1996-08 ended
JZZ31,UZZ30 —
67801-24020 Cover, Front Door Service Hole, RH
1996-08 → —
JZZ31,UZZ30 —
67832 — Cover, Front Door Service Hole, LH
67802-24030 Cover, Front Door Service Hole, LH
1991-04 → —
JZZ31,UZZ30 —
67833D — Cover, Front Door Service Hole, NO.2 RH
67833-24060 Cover, Front Door Service Hole, NO.2 RH
1991-04 → —
JZZ31,UZZ30 —
67834 — Cover, Front Door Service Hole, NO.2 LH
67834-24030 Cover, Front Door Service Hole, NO.2 LH
1991-04 → —
JZZ31,UZZ30 —
67861 — Weatherstrip, Front Door, RH
67861-24030 Weatherstrip, Front Door, RH
1991-04 → —
JZZ31,UZZ30 —
67862 — Weatherstrip, Front Door, LH
67862-24030 Weatherstrip, Front Door, LH
1991-04 → —
JZZ31,UZZ30 —
67867C — Retainer, Front Door Weatherstrip, RH
67868-50010 Retainer, Front Door Weatherstrip, RH
1991-04 → —
JZZ31,UZZ30 —
67868C — Retainer, Front Door Weatherstrip, LH
67868-50010 Retainer, Front Door Weatherstrip, LH
1991-04 → —
JZZ31,UZZ30 —
68101 — Glass Sub-assy, Front Door, RH
68101-24120 note Glass Sub-assy, Front Door, RH
1991-04 → 1994-01 ended
JZZ31,UZZ30 —
68101-24150 note Glass Sub-assy, Front Door, RH
1994-01 → 1996-08 ended
JZZ31,UZZ30 —
68101-24190 note Glass Sub-assy, Front Door, RH
1996-08 → —
JZZ31,UZZ30 —
68102 — Glass Sub-assy, Front Door, LH
68102-24120 note Glass Sub-assy, Front Door, LH
1991-04 → 1994-01 ended
JZZ31,UZZ30 —
68102-24150 note Glass Sub-assy, Front Door, LH
1994-01 → 1996-08 ended
JZZ31,UZZ30 —
68102-24190 note Glass Sub-assy, Front Door, LH
1996-08 → —
JZZ31,UZZ30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
