Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

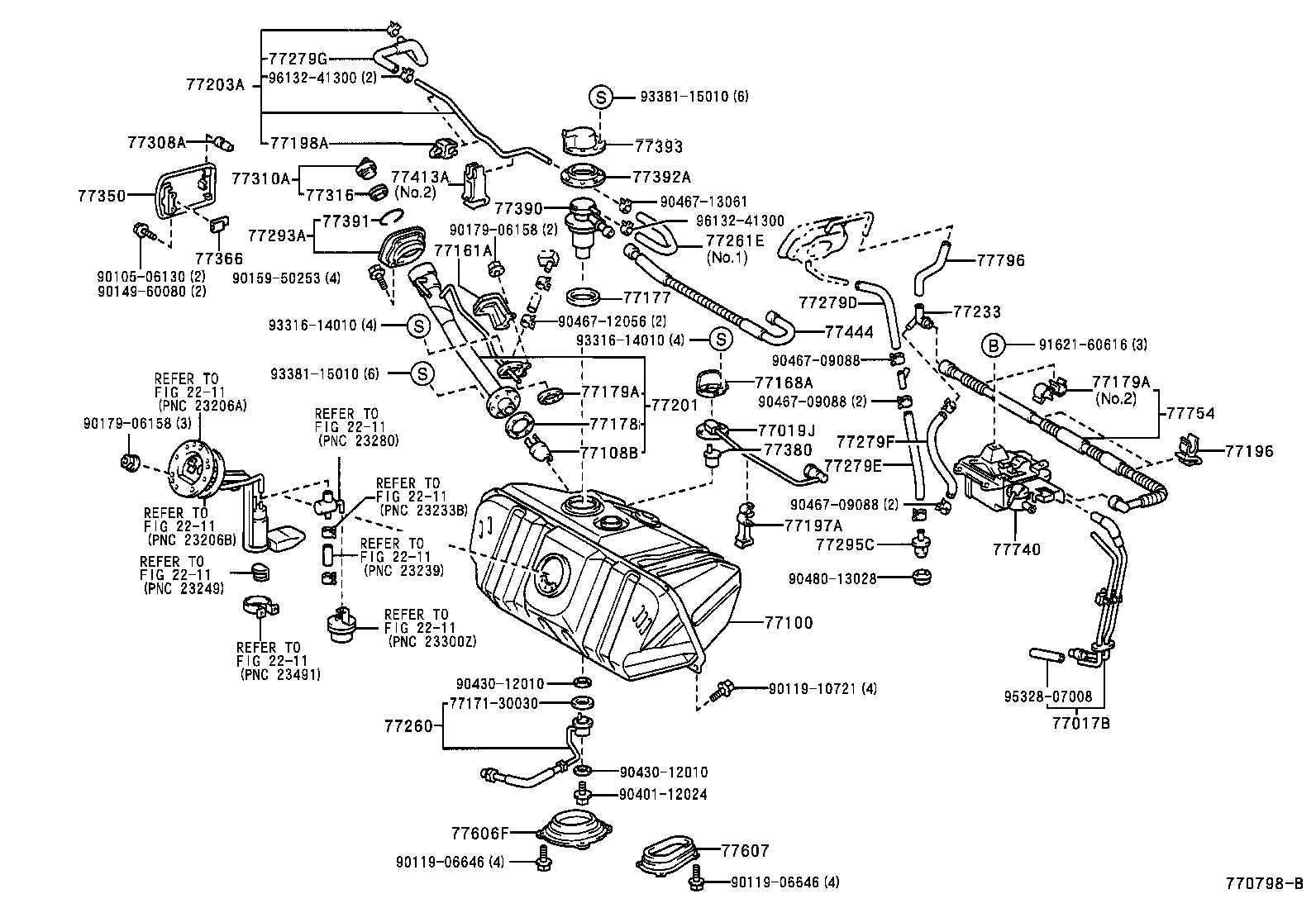

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77017B — Tube Sub-assy, Fuel Tank Vent | ||||
| 77017-24010 |
Tube Sub-assy, Fuel Tank Vent
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77019J — Tube Sub-assy, Fuel Tank TO Canister | ||||
| 77019-24020 |
Tube Sub-assy, Fuel Tank TO Canister
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-24020 |
Tank Assy, Fuel
1991-11 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 77001-24021 |
Tank Assy, Fuel
1996-08 → 1997-09
ended
|
JZZ31 | — | |
| 77001-24030 |
Tank Assy, Fuel
1991-04 → 1991-11
ended
|
JZZ31,UZZ30 | — | |
| 77001-24060 |
Tank Assy, Fuel
1996-08 → 1997-09
ended
|
UZZ30 | — | |
| 77001-24061 |
Tank Assy, Fuel
1997-09 → 1999-08
ended
|
JZZ31,UZZ30 | — | |
| 77001-24070 |
Tank Assy, Fuel
1999-08 → 2000-07
ended
|
JZZ31,UZZ30 | — | |
| 77108B — Valve Sub-assy, Fuel Tank Filler Check | ||||
| 77108-50010 |
Valve Sub-assy, Fuel Tank Filler Check
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77161A — Bracket, Fuel Tank Mounting, Front | ||||
| 77161-50020 |
Bracket, Fuel Tank Mounting, Front
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77168A — Plate, Fuel Tank Vent Tube Set | ||||
| 77168-50030 |
Plate, Fuel Tank Vent Tube Set
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77177 — Gasket, Check Valve | ||||
| 77177-12020 |
Gasket, Check Valve
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77178 — Gasket, Fuel Tank Filler Pipe, Lower | ||||
| 77169-14010 |
Gasket, Fuel Tank Filler Pipe, Lower
1991-04 → 1999-08
ended
|
JZZ31,UZZ30 | — | |
| 77178-20010 |
Gasket, Fuel Tank Filler Pipe, Lower
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77179A — Gasket, Fuel Tank Breather Tube | ||||
| 77179-50010 |
Gasket, Fuel Tank Breather Tube
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77196 — Clamp, Evaporation Vent Tube, NO.1 | ||||
| 77196-24010 |
Clamp, Evaporation Vent Tube, NO.1
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77197A — Clamp, Evaporation Vent Tube, NO.2 | ||||
| 77197-24010 note |
Clamp, Evaporation Vent Tube, NO.2
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77198-50010 note |
Clamp, Evaporation Vent Tube, NO.2
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77198A — Clamp, Evaporation Vent Tube, NO.3 | ||||
| 77198-24010 |
Clamp, Evaporation Vent Tube, NO.3
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77201 — Pipe Sub-assy, Fuel Tank Inlet | ||||
| 77201-24040 |
Pipe Sub-assy, Fuel Tank Inlet
1991-04 → 1999-08
ended
|
JZZ31,UZZ30 | — | |
| 77201-24041 |
Pipe Sub-assy, Fuel Tank Inlet
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77203A — Tube Sub-assy, Fuel Suction | ||||
| 77203-24040 |
Tube Sub-assy, Fuel Suction
1999-08 → 2000-07
ended
|
JZZ31,UZZ30 | — | |
| 77233 — Joint, Fuel Hose | ||||
| 77233-50030 |
Joint, Fuel Hose
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77260 — Hose Assy, Fuel Main | ||||
| 77260-24010 |
Hose Assy, Fuel Main
1991-04 → 1991-12
ended
|
JZZ31,UZZ30 | — | |
| 77260-30010 |
Hose Assy, Fuel Main
1991-12 → —
|
JZZ31,UZZ30 | — | |
| 77261E — Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-24030 |
Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1991-04 → 1997-09
ended
|
JZZ31,UZZ30 | — | |
| 77259-24050 |
Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77279D — Hose, Fuel Tank Filler Pipe Shield, NO.1 | ||||
| 77279-24030 |
Hose, Fuel Tank Filler Pipe Shield, NO.1
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77279E — Hose, Fuel Tank Filler Pipe Shield, NO.2 | ||||
| 77279-24040 |
Hose, Fuel Tank Filler Pipe Shield, NO.2
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77279F — Hose, Fuel Tank Filler Pipe Shield, NO.3 | ||||
| 77279-24050 |
Hose, Fuel Tank Filler Pipe Shield, NO.3
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77279G — Hose, Fuel, NO.2 | ||||
| 77279-24060 |
Hose, Fuel, NO.2
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77293A — Shield, Fuel Tank Filler Pipe, NO.3 | ||||
| 77293-24010 |
Shield, Fuel Tank Filler Pipe, NO.3
1991-04 → 1991-11
ended
|
JZZ31,UZZ30 | — | |
| 77293-24011 |
Shield, Fuel Tank Filler Pipe, NO.3
1991-11 → —
|
JZZ31,UZZ30 | — | |
| 77295C — Grommet, Fuel Tube | ||||
| 77295-24010 |
Grommet, Fuel Tube
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77308A — Cushion(FOR FUEL INLET BOX COVER) | ||||
| 90541-08027 |
Cushion(FOR FUEL INLET BOX COVER)
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77310-12140 |
Cap Assy, Fuel Tank
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 77310-14090 |
Cap Assy, Fuel Tank
1994-01 → 1998-03
ended
|
JZZ31,UZZ30 | — | |
| 77310-48020 |
Cap Assy, Fuel Tank
1998-03 → —
|
JZZ31,UZZ30 | — | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-14010 |
Gasket, Fuel Tank Cap
1994-01 → 1998-03
ended
|
JZZ31,UZZ30 | — | |
| 77316-16010 |
Gasket, Fuel Tank Cap
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 77316-16010 |
Gasket, Fuel Tank Cap
1998-03 → —
|
JZZ31,UZZ30 | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-24050 |
Lid Assy, Fuel Filler Opening
1991-04 → 1999-02
ended
|
JZZ31,UZZ30 | — | |
| 77350-24051 |
Lid Assy, Fuel Filler Opening
1999-02 → —
|
JZZ31,UZZ30 | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-12030 |
Spring, Fuel Filler Opening Lid Hinge
1991-04 → 1992-03
ended
|
JZZ31,UZZ30 | — | |
| 77366-24030 |
Spring, Fuel Filler Opening Lid Hinge
1992-03 → —
|
JZZ31,UZZ30 | — | |
| 77380 — Valve Assy, Fuel Cut Off | ||||
| 77380-26010 |
Valve Assy, Fuel Cut Off
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77380-50010 |
Valve Assy, Fuel Cut Off
1991-04 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 77380-50010 |
Valve Assy, Fuel Cut Off
1996-08 → 1996-09
ended
|
UZZ30 | — | |
| 77390 — Valve Assy, Fuel Tank Inlet | ||||
| 77390-50010 |
Valve Assy, Fuel Tank Inlet
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77391 — Ring, Fuel Inlet Box | ||||
| 77391-24010 |
Ring, Fuel Inlet Box
1991-11 → —
|
JZZ31,UZZ30 | — | |
| 77392A — Support, Check Valve | ||||
| 77392-50010 |
Support, Check Valve
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77393 — Protector, Check Valve | ||||
| 77393-50010 |
Protector, Check Valve
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77413A — Support, Fuel Tube Grommet, NO.3 | ||||
| 77413-24010 note |
Support, Fuel Tube Grommet, NO.3
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77413-24020 note |
Support, Fuel Tube Grommet, NO.3
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77444 — Hose, Fuel Tank Vent | ||||
| 77404-24010 |
Hose, Fuel Tank Vent
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77606F — Case Sub-assy, Fuel Tank Cover Vent | ||||
| 77606-24010 |
Case Sub-assy, Fuel Tank Cover Vent
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77607 — Case Sub-assy, Fuel Tank Cover Vent, LH | ||||
| 77607-24010 |
Case Sub-assy, Fuel Tank Cover Vent, LH
1991-04 → 1999-08
ended
|
JZZ31,UZZ30 | — | |
| 77740 — Canister Assy, Charcoal | ||||
| 77740-24030 |
Canister Assy, Charcoal
1991-04 → 1991-12
ended
|
JZZ31,UZZ30 | — | |
| 77740-24031 |
Canister Assy, Charcoal
1991-12 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 77740-24032 |
Canister Assy, Charcoal
1996-08 → 1997-09
ended
|
JZZ31 | — | |
| 77740-24050 |
Canister Assy, Charcoal
1996-08 → 1997-09
ended
|
UZZ30 | — | |
| 77740-24060 |
Canister Assy, Charcoal
1997-09 → 1998-08
ended
|
JZZ31,UZZ30 | — | |
| 77740-24061 |
Canister Assy, Charcoal
1998-08 → 1999-08
ended
|
JZZ31,UZZ30 | — | |
| 77740-24070 |
Canister Assy, Charcoal
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77754 — Hose, Charcoal Canister Outlet, NO.1 | ||||
| 77754-24020 |
Hose, Charcoal Canister Outlet, NO.1
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77796 — Hose, Charcoal Canister Outlet, NO.3 | ||||
| 77796-24010 |
Hose, Charcoal Canister Outlet, NO.3
1999-08 → —
|
JZZ31,UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
