Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

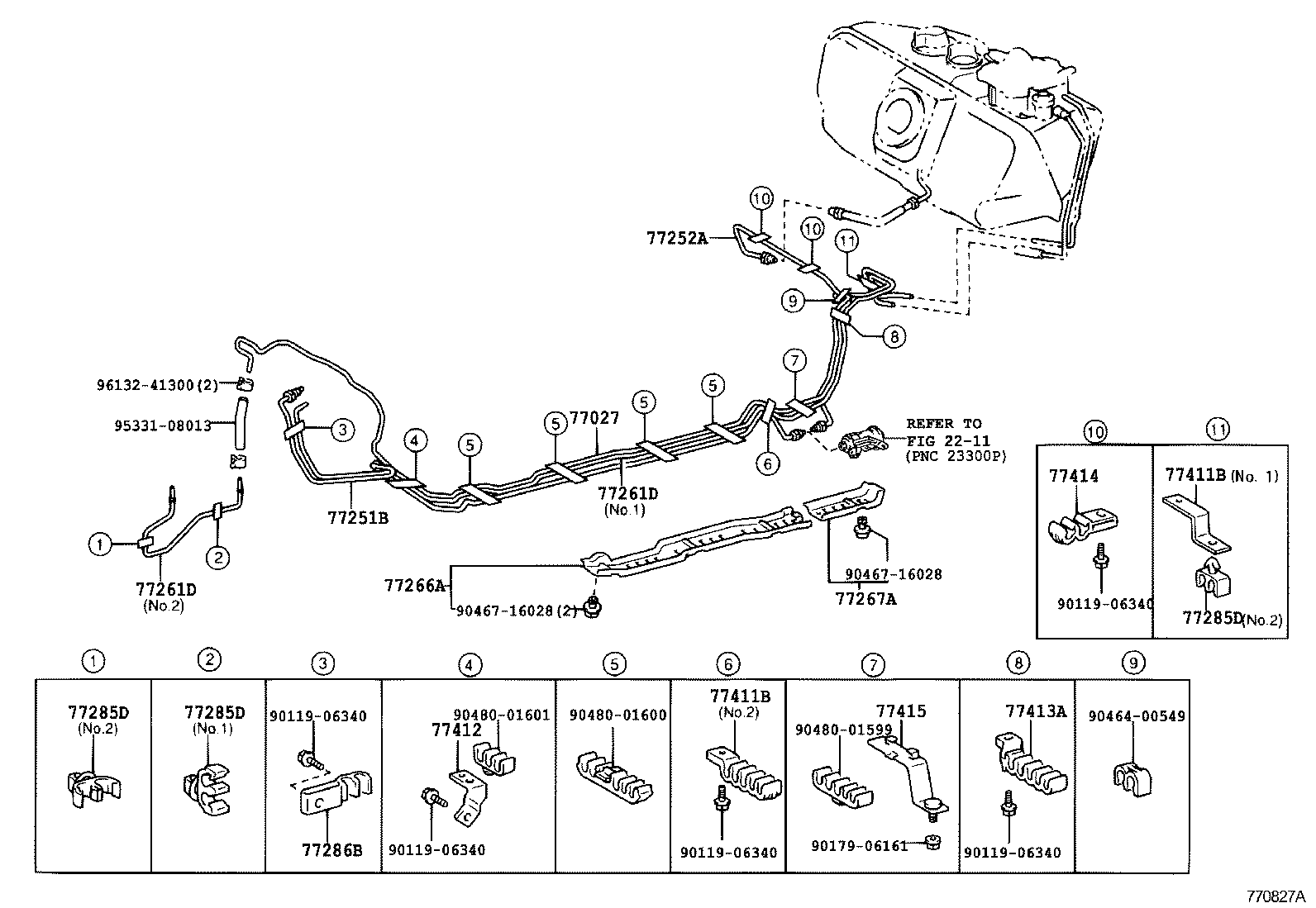

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77027 — Tube Sub-assy, Fuel Evaporation, NO.2 | ||||
| 77027-24020 |
Tube Sub-assy, Fuel Evaporation, NO.2
1996-08 → 1997-09
ended
|
JZZ31 | — | |
| 77027-24020 |
Tube Sub-assy, Fuel Evaporation, NO.2
1991-04 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 77262-24040 |
Tube Sub-assy, Fuel Evaporation, NO.2
1996-08 → 1997-09
ended
|
UZZ30 | — | |
| 77262-24040 |
Tube Sub-assy, Fuel Evaporation, NO.2
1997-09 → 1999-08
ended
|
JZZ31,UZZ30 | — | |
| 77262-24050 |
Tube Sub-assy, Fuel Evaporation, NO.2
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77251B — Tube, Fuel Main | ||||
| 77251-24030 |
Tube, Fuel Main
1991-08 → —
|
JZZ31 | — | |
| 77251-24050 |
Tube, Fuel Main
1991-04 → —
|
UZZ30 | — | |
| 77252A — Tube, Fuel Main, NO.2 | ||||
| 77252-24010 |
Tube, Fuel Main, NO.2
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77261-24030 |
Tube, Fuel Tank TO Canister
1996-08 → 1999-08
ended
|
UZZ30 | — | |
| 77261-24031 note |
Tube, Fuel Tank TO Canister
1999-08 → —
|
JZZ31 | — | |
| 77261-24040 note |
Tube, Fuel Tank TO Canister
1999-08 → —
|
JZZ31 | — | |
| 77261-24050 note |
Tube, Fuel Tank TO Canister
1999-08 → —
|
UZZ30 | — | |
| 77261-24060 note |
Tube, Fuel Tank TO Canister
1999-08 → —
|
UZZ30 | — | |
| 77266A — Protector, Fuel Tube, NO.1 | ||||
| 77266-24020 |
Protector, Fuel Tube, NO.1
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77267A — Protector, Fuel Tube, NO.2 | ||||
| 77267-24010 |
Protector, Fuel Tube, NO.2
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-24020 note |
Clamp, Fuel Tube, NO.1
1996-08 → 1999-08
ended
|
UZZ30 | — | |
| 77285-24020 note |
Clamp, Fuel Tube, NO.1
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77286-24030 note |
Clamp, Fuel Tube, NO.1
1996-08 → 1999-08
ended
|
UZZ30 | — | |
| 77286-24030 note |
Clamp, Fuel Tube, NO.1
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77286B — Clamp, Fuel Tube W/Grommet, NO.2 | ||||
| 77286-24020 |
Clamp, Fuel Tube W/Grommet, NO.2
1991-04 → —
|
UZZ30 | — | |
| 77411B — Support, Fuel Tube Grommet, NO.1 | ||||
| 77411-24010 |
Support, Fuel Tube Grommet, NO.1
1991-04 → 1999-08
ended
|
JZZ31,UZZ30 | — | |
| 77411-24010 note |
Support, Fuel Tube Grommet, NO.1
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77411-24020 note |
Support, Fuel Tube Grommet, NO.1
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77412 — Support, Fuel Tube Grommet, NO.2 | ||||
| 77412-24010 |
Support, Fuel Tube Grommet, NO.2
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77413A — Support, Fuel Tube Grommet, NO.3 | ||||
| 77413-24010 note |
Support, Fuel Tube Grommet, NO.3
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77413-24020 note |
Support, Fuel Tube Grommet, NO.3
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 77414 — Support, Fuel Tube Grommet, NO.4 | ||||
| 77414-24010 |
Support, Fuel Tube Grommet, NO.4
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 77415 — Support, Fuel Tube Grommet, NO.5 | ||||
| 77415-24010 |
Support, Fuel Tube Grommet, NO.5
1991-04 → —
|
JZZ31,UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
