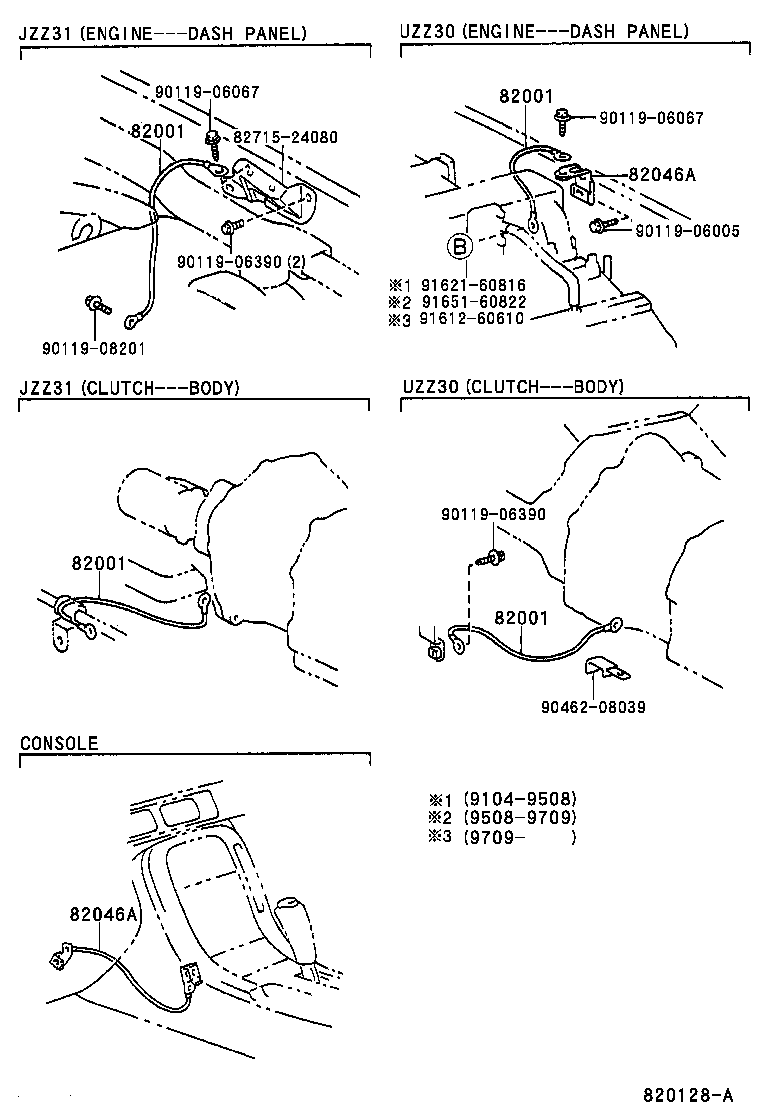

Exploded illustration 820128A 9011906067 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (5 parts) 9011906067 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (5 parts) 8271524080 — not listed in this catalogue 82046A — WIRE SUB-ASSY, BODY GROUND, NO.1 (2 parts) 9011906005 — not listed in this catalogue 9011906390 — not listed in this catalogue 9162160816 — not listed in this catalogue 9165160822 — not listed in this catalogue 9161260610 — not listed in this catalogue 9011908201 — not listed in this catalogue 9011906390 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (5 parts) 82001 — CABLE, BOND, NO.1 (5 parts) 9046208039 — not listed in this catalogue 82046A — WIRE SUB-ASSY, BODY GROUND, NO.1 (2 parts)
820128A · 6 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
7 parts on this figure
Part number Description Fitment Price
82001 — Cable, Bond, NO.1
90980-07308 note Cable, Bond, NO.1
1991-04 → 1995-08 ended
UZZ30 —
90980-07313 note Cable, Bond, NO.1
1995-08 → —
UZZ30 —
90980-07338 note Cable, Bond, NO.1
1991-08 → —
JZZ31 —
90980-07344 note Cable, Bond, NO.1
1991-04 → —
UZZ30 —
90980-07345 note Cable, Bond, NO.1
1991-08 → —
JZZ31 —
82046A — Wire Sub-assy, Body Ground, NO.1
82046-24010 note Wire Sub-assy, Body Ground, NO.1
1991-04 → —
UZZ30 —
82046-24030 note Wire Sub-assy, Body Ground, NO.1
1991-04 → —
JZZ31,UZZ30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
