Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

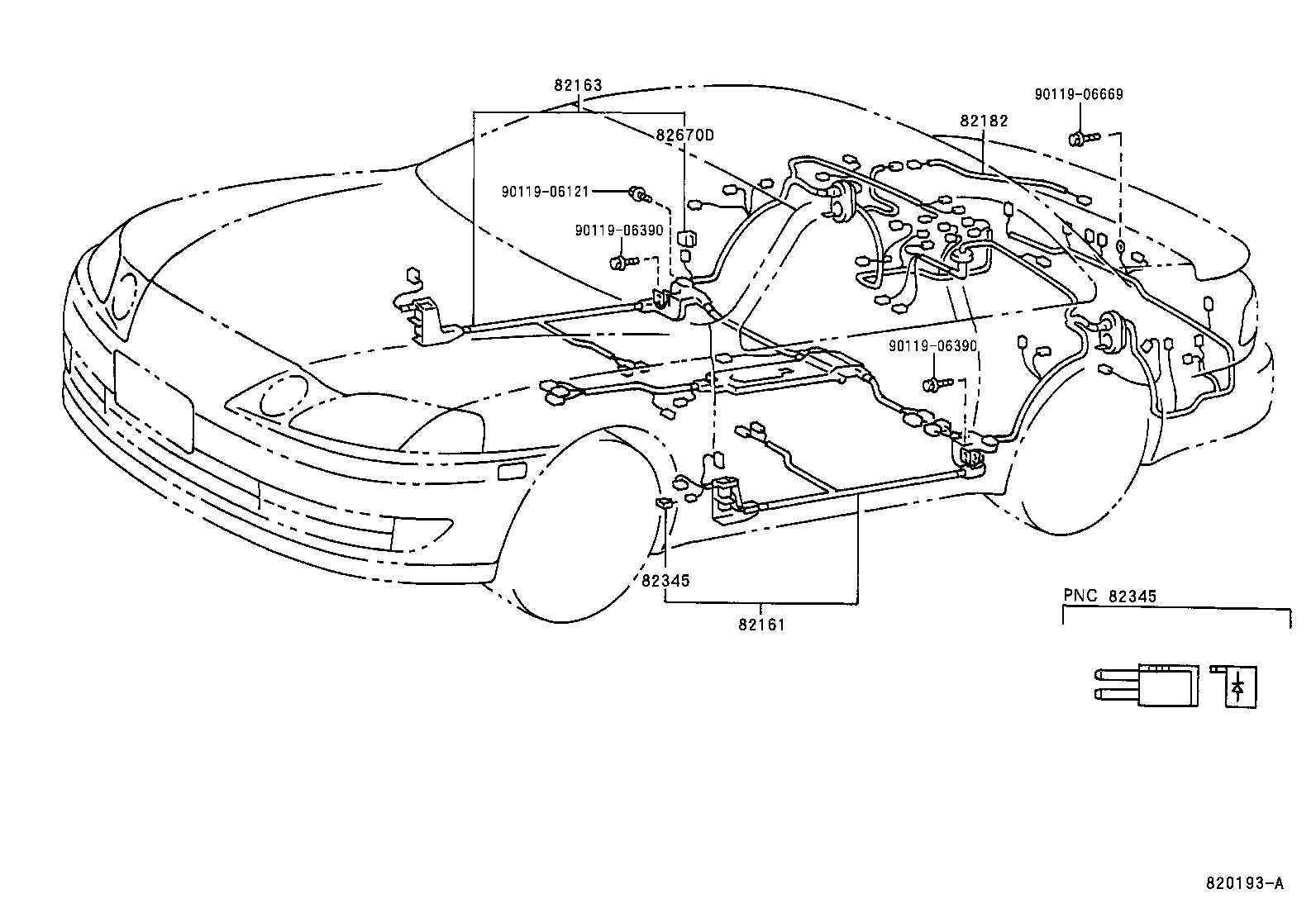

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-24411 |
Wire, Floor
1991-08 → 1992-09
ended
|
JZZ31 | — | |
| 82161-24412 |
Wire, Floor
1992-09 → 1994-01
ended
|
JZZ31 | — | |
| 82161-24421 note |
Wire, Floor
1991-08 → 1992-09
ended
|
JZZ31 | — | |
| 82161-24421 |
Wire, Floor
1991-04 → 1992-09
ended
|
UZZ30 | — | |
| 82161-24422 |
Wire, Floor
1992-09 → 1994-01
ended
|
UZZ30 | — | |
| 82161-24422 note |
Wire, Floor
1992-09 → 1994-01
ended
|
JZZ31 | — | |
| 82161-24480 |
Wire, Floor
1994-01 → 1995-08
ended
|
JZZ31 | — | |
| 82161-24481 |
Wire, Floor
1995-08 → 1996-08
ended
|
JZZ31 | — | |
| 82161-24490 |
Wire, Floor
1994-01 → 1995-08
ended
|
UZZ30 | — | |
| 82161-24490 note |
Wire, Floor
1994-01 → 1995-08
ended
|
JZZ31 | — | |
| 82161-24491 |
Wire, Floor
1995-08 → 1996-08
ended
|
UZZ30 | — | |
| 82161-24491 note |
Wire, Floor
1995-08 → 1996-08
ended
|
JZZ31 | — | |
| 82161-24540 |
Wire, Floor
1996-08 → 1997-09
ended
|
JZZ31 | — | |
| 82161-24541 |
Wire, Floor
1997-09 → 1999-08
ended
|
JZZ31 | — | |
| 82161-24542 |
Wire, Floor
1999-08 → —
|
JZZ31 | — | |
| 82161-24550 note |
Wire, Floor
1996-08 → 1997-09
ended
|
JZZ31 | — | |
| 82161-24550 |
Wire, Floor
1996-08 → 1997-09
ended
|
UZZ30 | — | |
| 82161-24551 |
Wire, Floor
1997-09 → 1999-08
ended
|
UZZ30 | — | |
| 82161-24551 note |
Wire, Floor
1997-09 → 1999-08
ended
|
JZZ31 | — | |
| 82161-24552 note |
Wire, Floor
1999-08 → —
|
JZZ31,UZZ30 | — | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-24061 |
Wire, Floor, NO.3
1991-04 → 1992-09
ended
|
JZZ31,UZZ30 | — | |
| 82163-24062 |
Wire, Floor, NO.3
1992-09 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 82163-24071 note |
Wire, Floor, NO.3
1991-04 → 1992-09
ended
|
JZZ31,UZZ30 USA | — | |
| 82163-24072 note |
Wire, Floor, NO.3
1992-09 → 1994-01
ended
|
JZZ31,UZZ30 USA | — | |
| 82163-24082 note |
Wire, Floor, NO.3
1992-09 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 82163-24091 note |
Wire, Floor, NO.3
1991-04 → 1992-09
ended
|
JZZ31,UZZ30 | — | |
| 82163-24092 note |
Wire, Floor, NO.3
1992-09 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 82163-24130 |
Wire, Floor, NO.3
1994-01 → 1995-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24131 |
Wire, Floor, NO.3
1995-08 → 1996-08
ended
|
JZZ31,UZZ30 USA | — | |
| 82163-24140 note |
Wire, Floor, NO.3
1994-01 → 1995-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24141 note |
Wire, Floor, NO.3
1996-01 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24141 note |
Wire, Floor, NO.3
1995-08 → 1996-01
ended
|
JZZ31,UZZ30 USA | — | |
| 82163-24150 note |
Wire, Floor, NO.3
1994-01 → 1995-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24151 note |
Wire, Floor, NO.3
1995-08 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24210 |
Wire, Floor, NO.3
1996-08 → 1997-09
ended
|
JZZ31,UZZ30 USA | — | |
| 82163-24211 |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24212 |
Wire, Floor, NO.3
1998-08 → —
|
JZZ31,UZZ30 | — | |
| 82163-24220 note |
Wire, Floor, NO.3
1996-08 → 1997-09
ended
|
JZZ31,UZZ30 | — | |
| 82163-24221 note |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
UZZ30 | — | |
| 82163-24221 note |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
JZZ31 | — | |
| 82163-24222 note |
Wire, Floor, NO.3
1998-08 → —
|
JZZ31,UZZ30 | — | |
| 82163-24230 note |
Wire, Floor, NO.3
1996-08 → 1997-09
ended
|
JZZ31,UZZ30 | — | |
| 82163-24231 note |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
JZZ31 | — | |
| 82163-24231 note |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
UZZ30 | — | |
| 82163-24232 note |
Wire, Floor, NO.3
1998-08 → —
|
JZZ31,UZZ30 | — | |
| 82163-24250 note |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24260 note |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24261 note |
Wire, Floor, NO.3
1998-08 → —
|
JZZ31,UZZ30 | — | |
| 82163-24270 note |
Wire, Floor, NO.3
1997-09 → 1998-08
ended
|
JZZ31,UZZ30 | — | |
| 82163-24271 note |
Wire, Floor, NO.3
1998-08 → —
|
JZZ31,UZZ30 | — | |
| 82182 — Wire, Luggage Room, NO.2 | ||||
| 82182-24020 |
Wire, Luggage Room, NO.2
1991-04 → 1995-08
ended
|
JZZ31,UZZ30 | — | |
| 82182-24020 |
Wire, Luggage Room, NO.2
1995-08 → 1996-08
ended
|
UZZ30 | — | |
| 82182-24021 |
Wire, Luggage Room, NO.2
1996-08 → 1996-11
ended
|
UZZ30 | — | |
| 82182-24021 |
Wire, Luggage Room, NO.2
1996-11 → —
|
JZZ31,UZZ30 | — | |
| 82345 — Diode | ||||
| 82345-20040 note |
Diode
1991-04 → —
|
JZZ31,UZZ30 4FC,5F | — | |
| 82345-32010 note |
Diode
1991-04 → —
|
JZZ31,UZZ30 4FC,5F | — | |
| 82670D — Block Assy, Junction,NO.2 | ||||
| 82670-20480 |
Block Assy, Junction,NO.2
1997-09 → —
|
UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
