Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

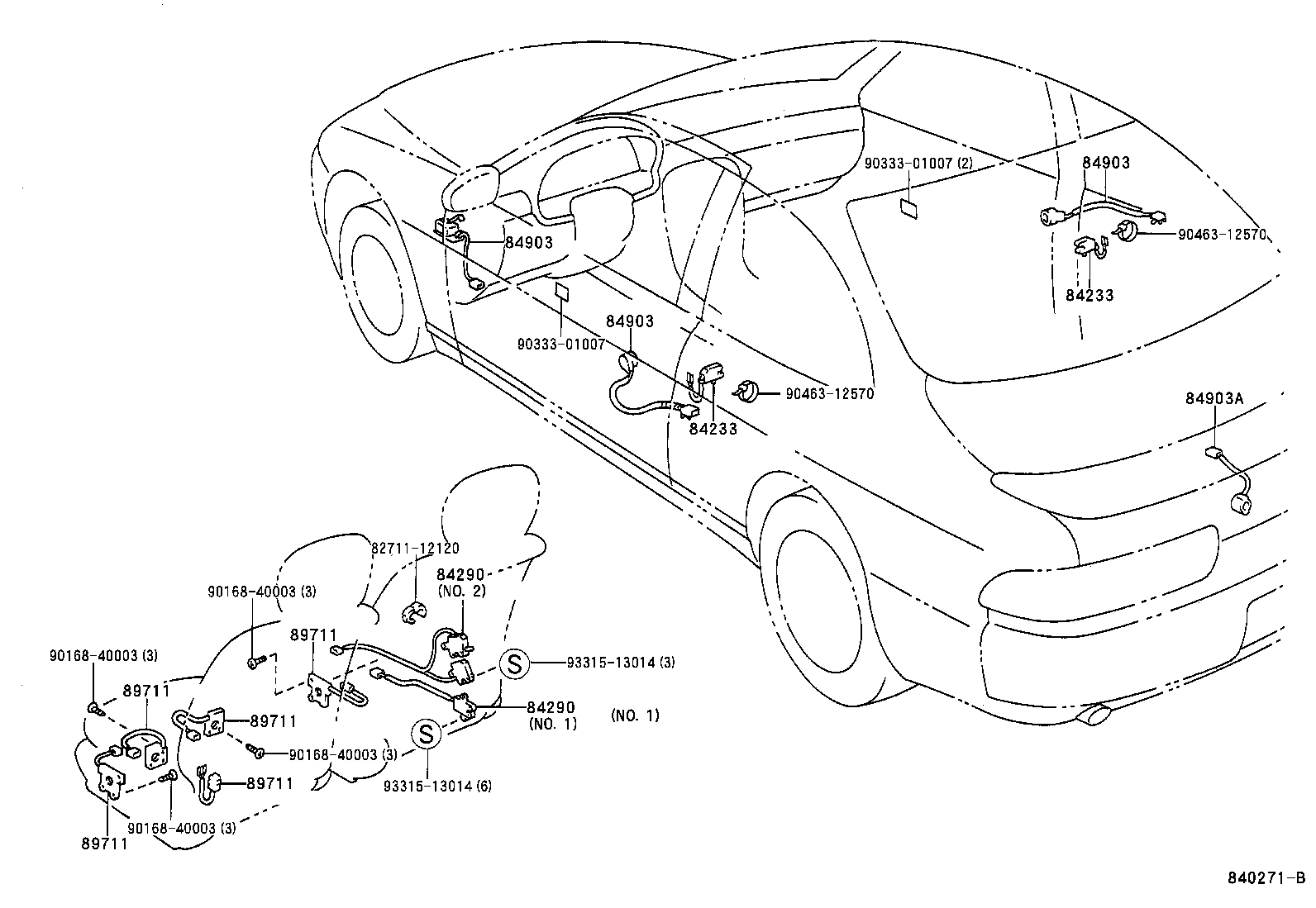

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-24050 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 84290 — Switch Assy, Limit | ||||
| 84290-24020 note |
Switch Assy, Limit
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 84290-24030 note |
Switch Assy, Limit
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 84290-24040 note |
Switch Assy, Limit
1994-01 → —
|
JZZ31,UZZ30 | — | |
| 84290-24050 note |
Switch Assy, Limit
1994-01 → —
|
JZZ31,UZZ30 | — | |
| 84903 — Switch Sub-assy, Door Un-lock | ||||
| 84903-24010 note |
Switch Sub-assy, Door Un-lock
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 84903-24030 note |
Switch Sub-assy, Door Un-lock
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 84903-50040 note |
Switch Sub-assy, Door Un-lock
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 84903A — Switch Sub-assy, Door Unlock | ||||
| 84903-24040 |
Switch Sub-assy, Door Unlock
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 89711 — Sensor, Position Control | ||||
| 89711-24020 note |
Sensor, Position Control
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 89711-24031 note |
Sensor, Position Control
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 89711-24041 note |
Sensor, Position Control
1991-04 → —
|
JZZ31,UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
