Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

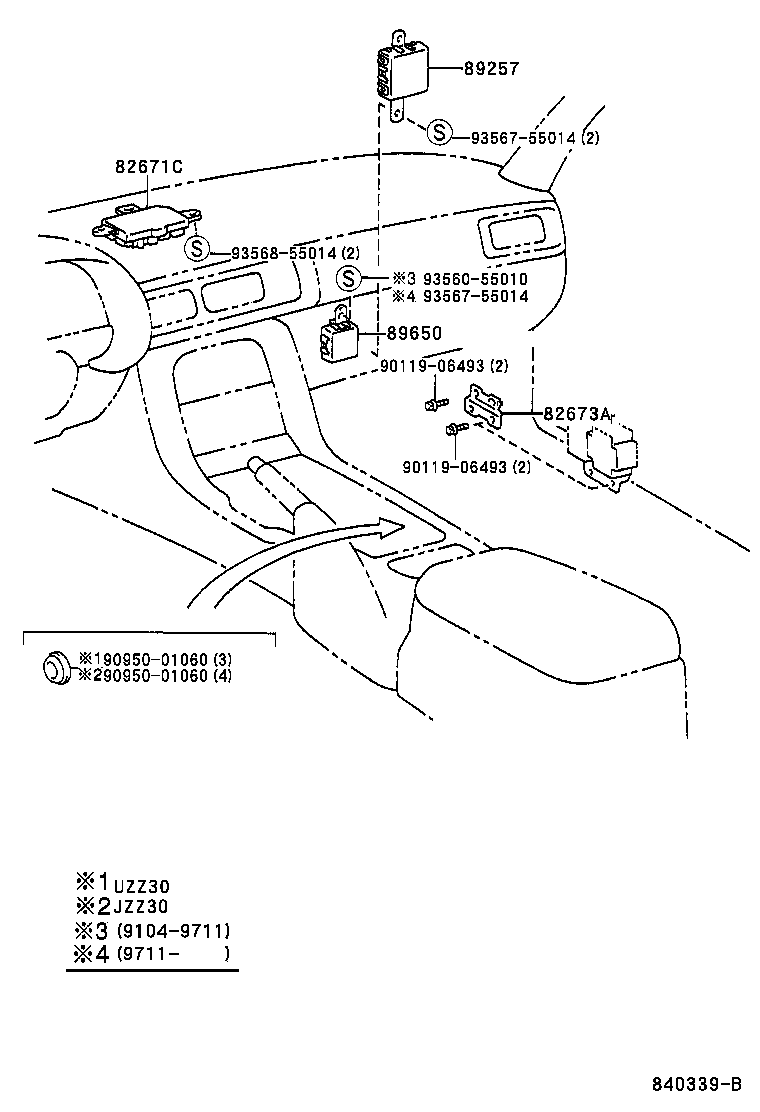

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82671C — Block, Junction | ||||
| 82671-24060 |
Block, Junction
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82673-24010 note |
Bracket, Junction Block, NO.1
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 82673-24020 note |
Bracket, Junction Block, NO.1
1991-04 → —
|
JZZ31,UZZ30 | — | |
| 89257 — Computer, Cooling Fan | ||||
| 89257-24010 |
Computer, Cooling Fan
1991-04 → —
|
UZZ30 | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-24050 |
Computer Assy, Power Steering
1991-04 → 1994-01
ended
|
JZZ31,UZZ30 | — | |
| 89650-24090 |
Computer Assy, Power Steering
1994-01 → 1996-08
ended
|
JZZ31,UZZ30 | — | |
| 89650-24091 |
Computer Assy, Power Steering
1996-08 → —
|
JZZ31,UZZ30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
