Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

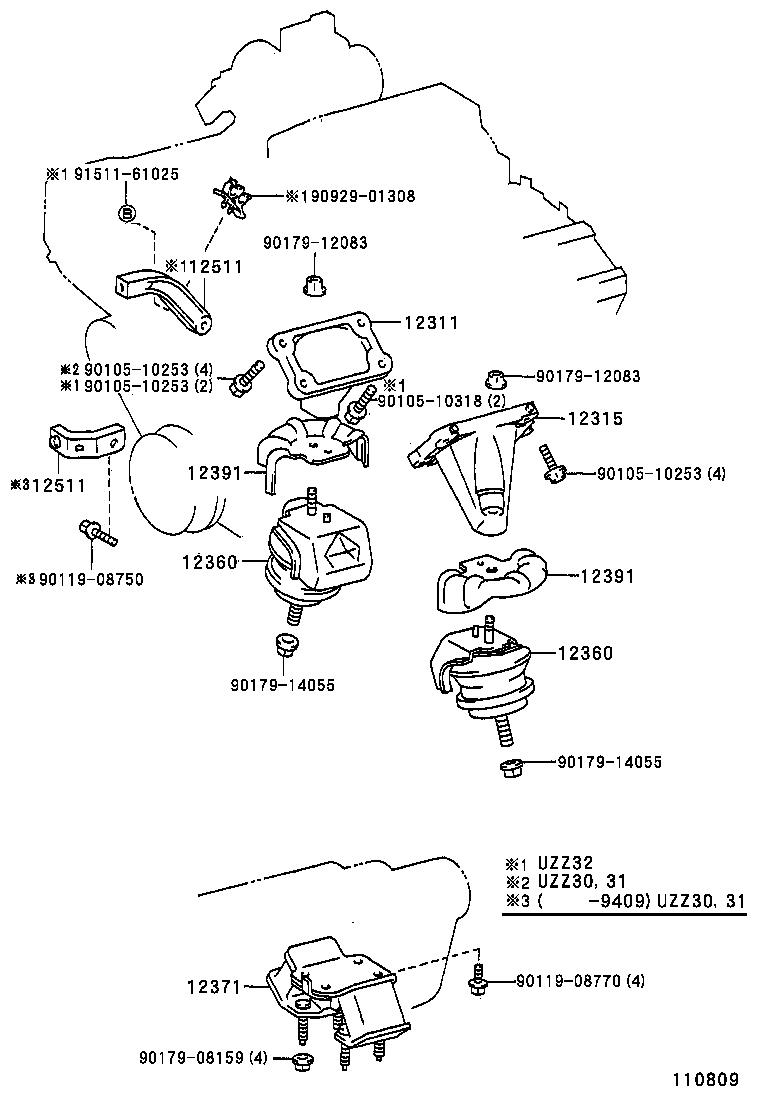

Mounting
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12360 | Insulator Assy, Engine Mounting, Front |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12391 | Insulator, Engine Mounting Front, Heat, RH |
| 12511 | Bracket, Alternator, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
