Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

18 part groups · 3 illustrations

Illustrations

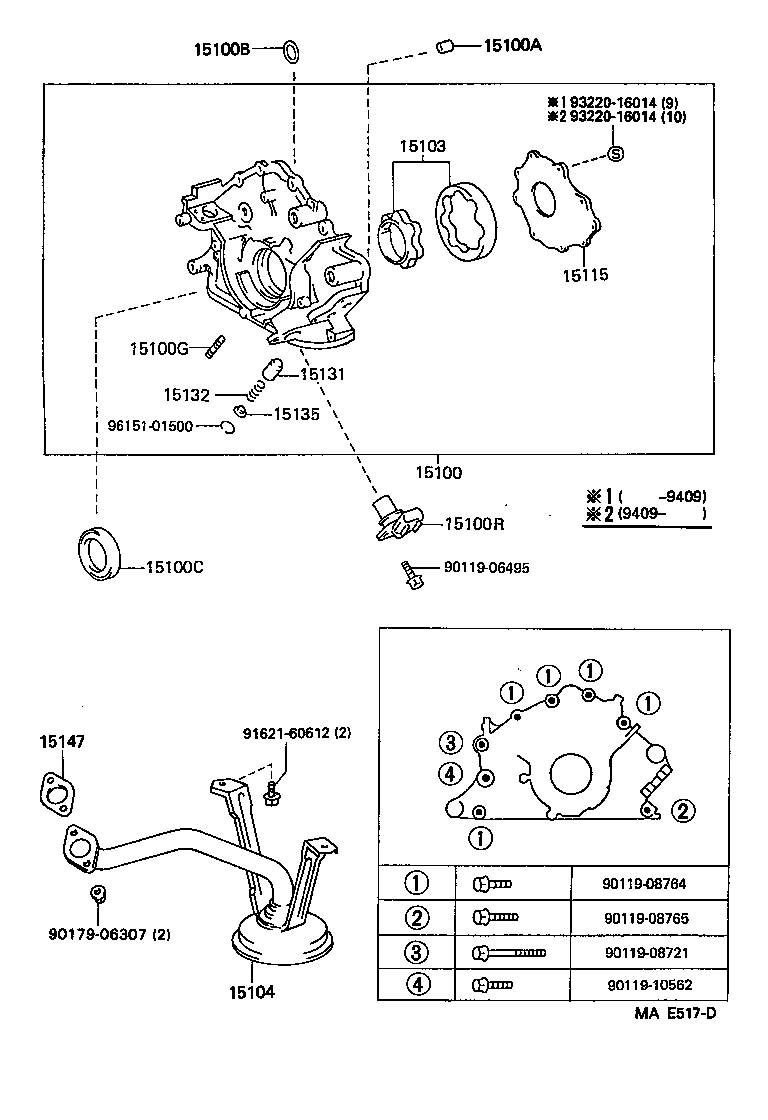

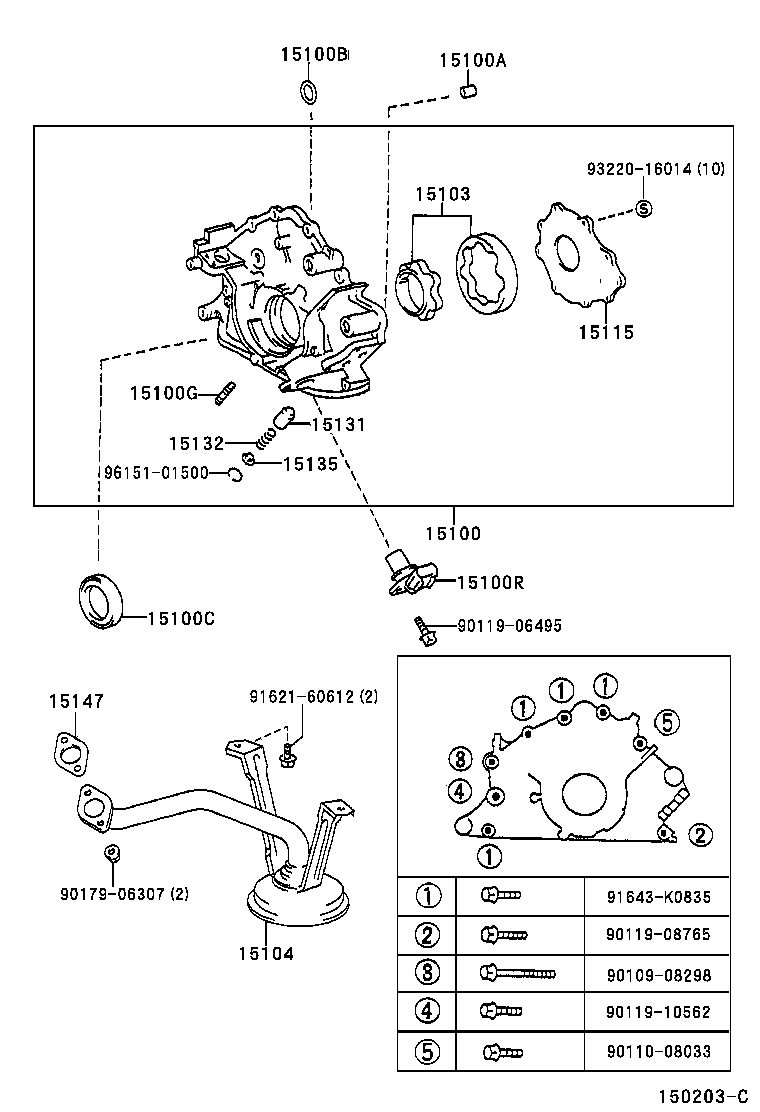

Figure 150035E 150035E 1991-08 → — Figure MAE517D MAE517D 1991-04 → 1997-09 Figure 150203C 150203C 1997-09 → —

Part groups

PNCDescription
11324A Plate, Timing Belt
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100G Bolt,Stud(FOR OIL PUMP)
15100Q Sensor, Crank Position
15100R Sensor, Crank Position
15101A Seal(FOR CRANKSHAFT)
15103 Gear Set, Oil Pump
15104 Strainer Sub-assy, Oil
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15135 Retainer, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
