Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

31 part groups · 13 illustrations

Illustrations

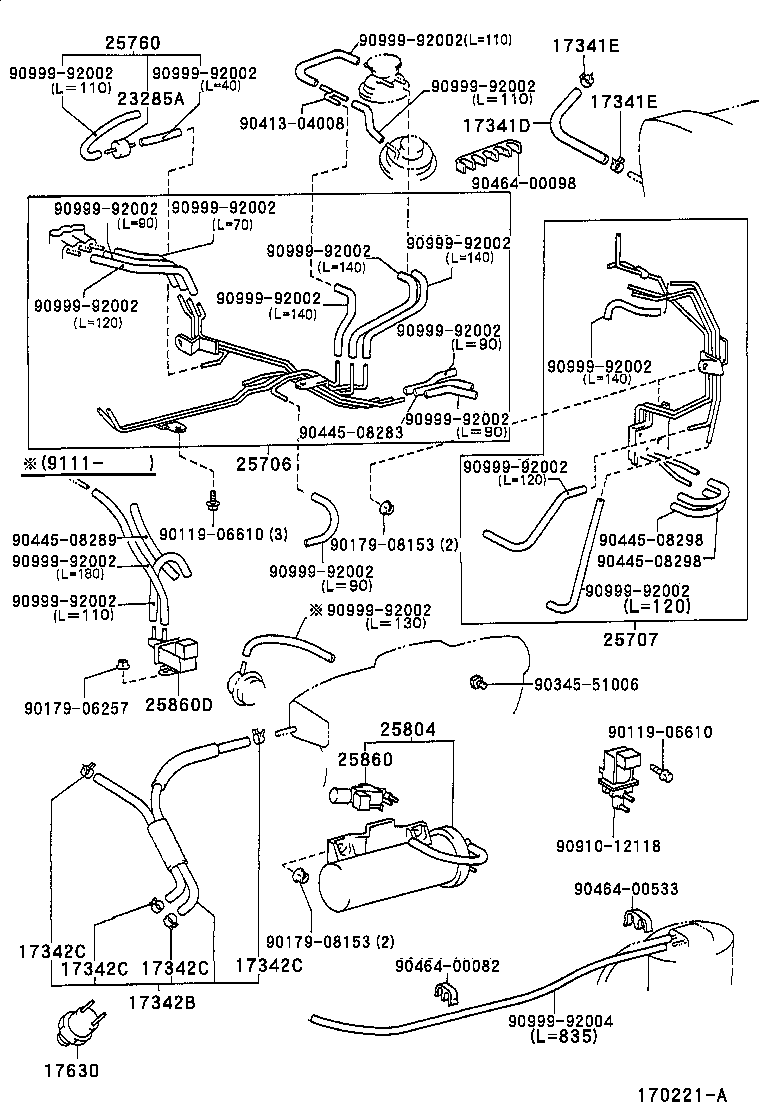

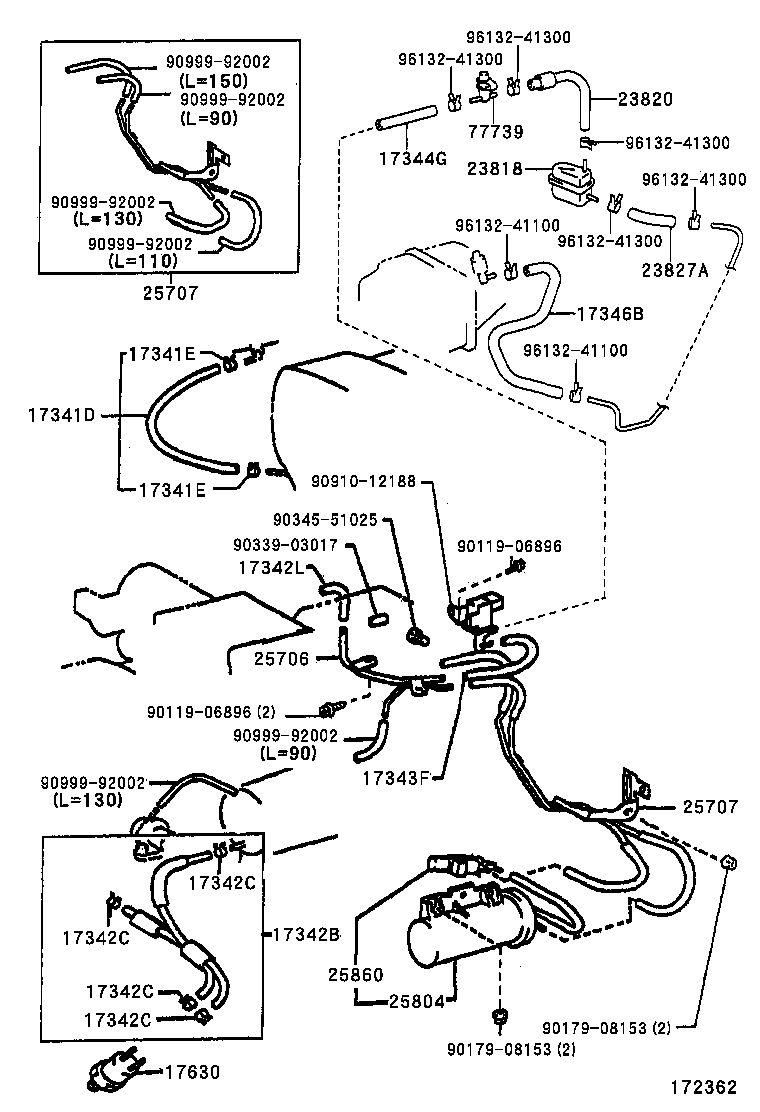

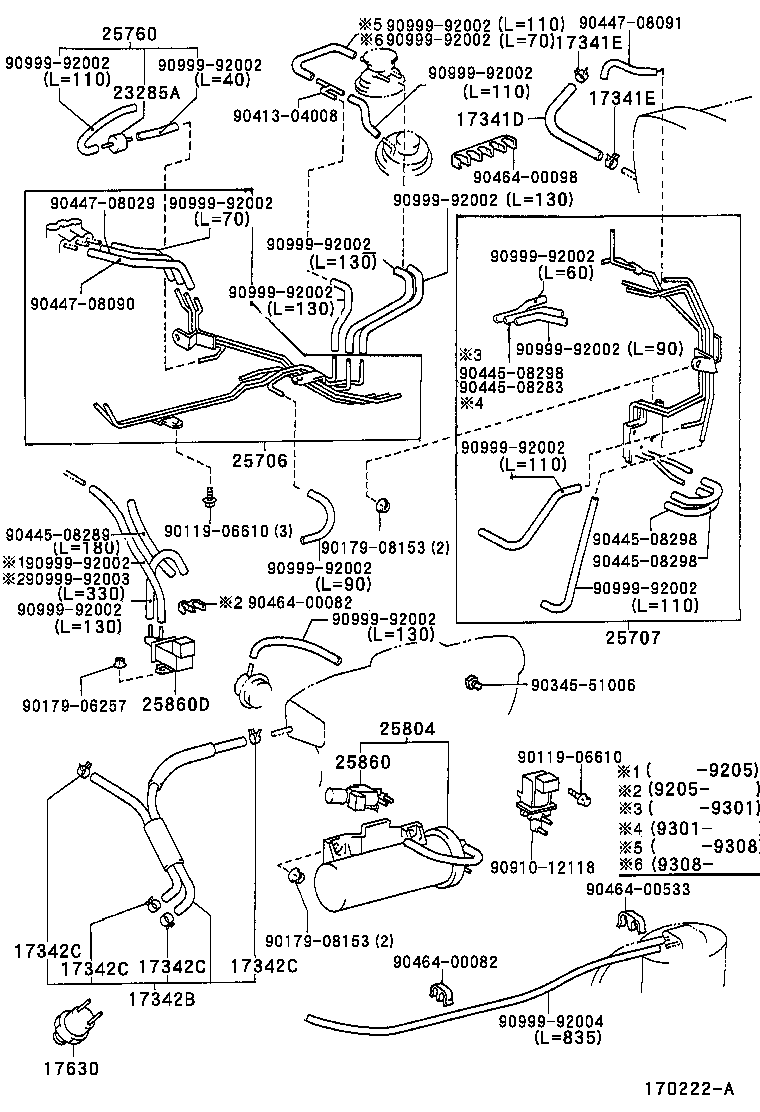

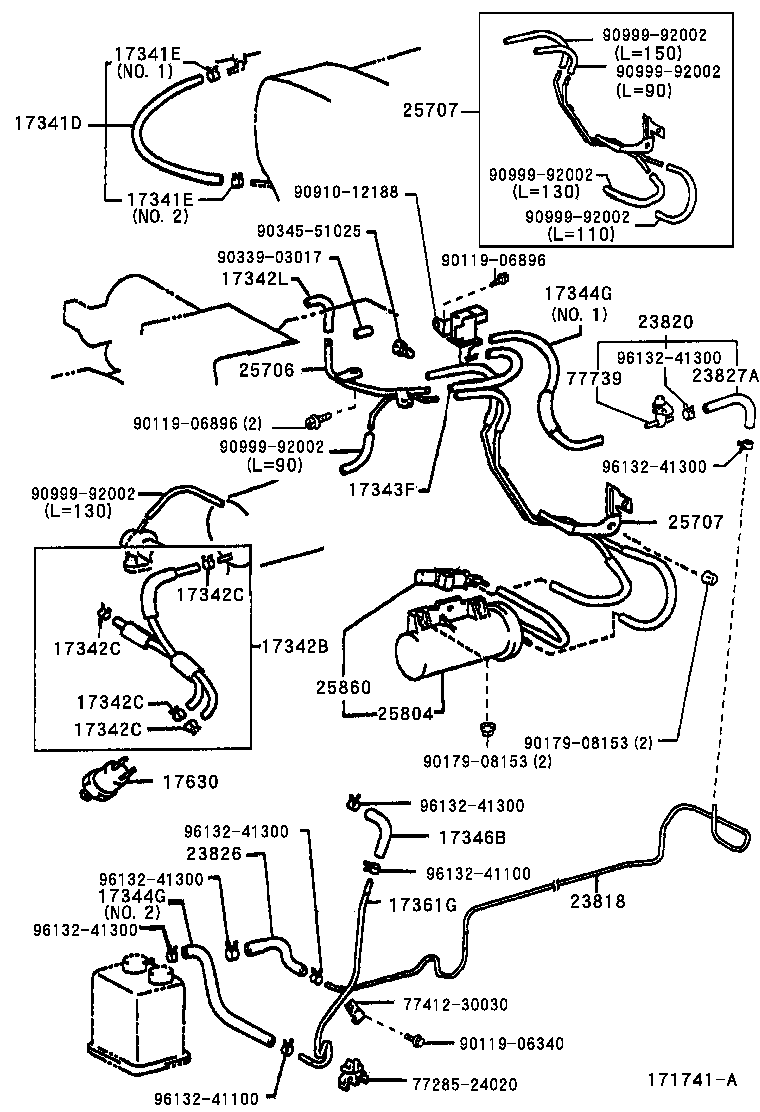

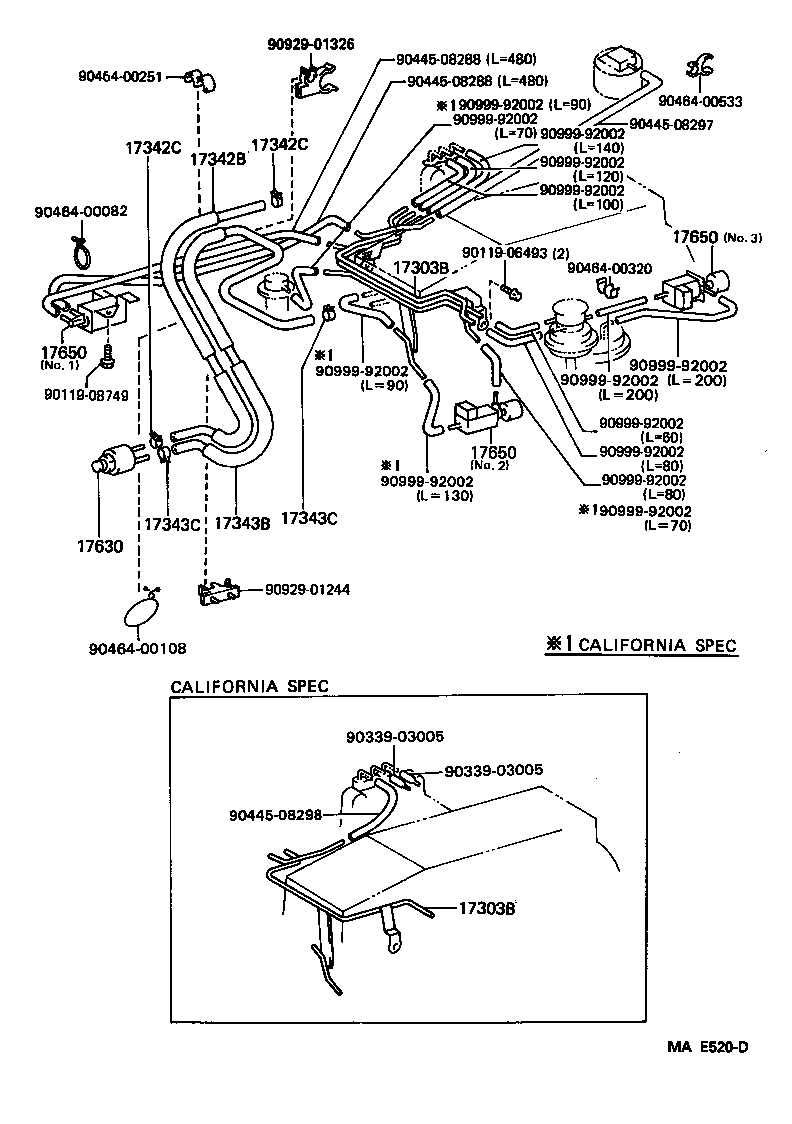

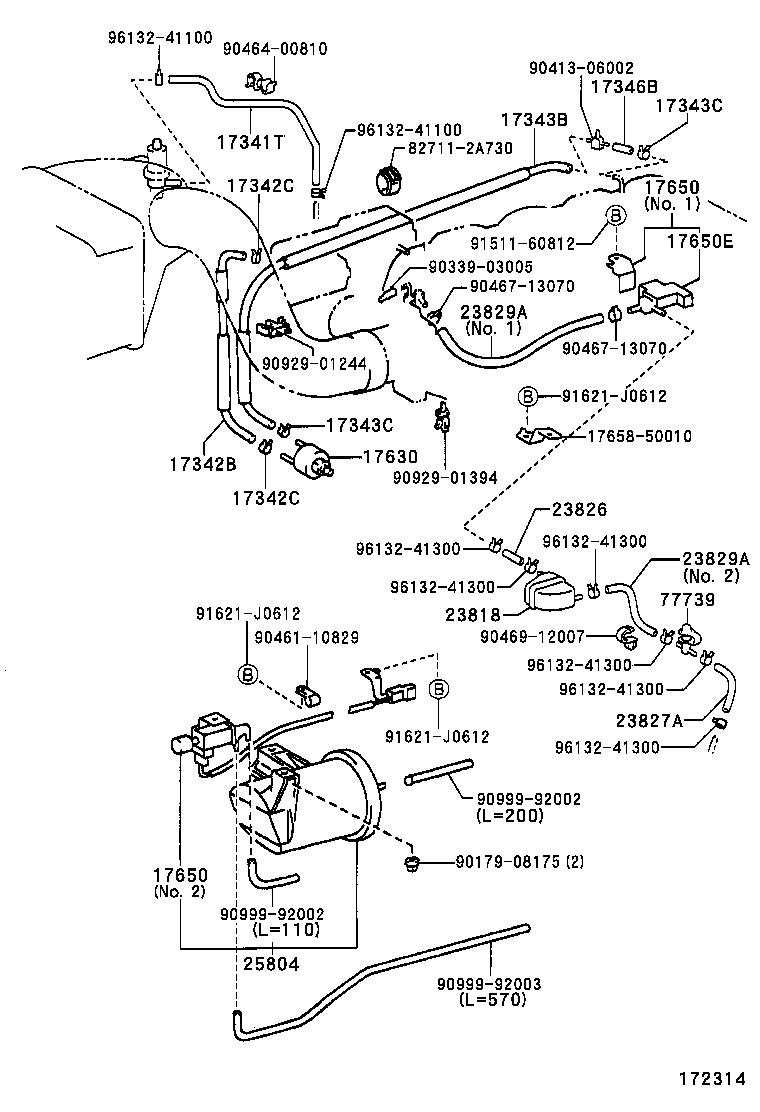

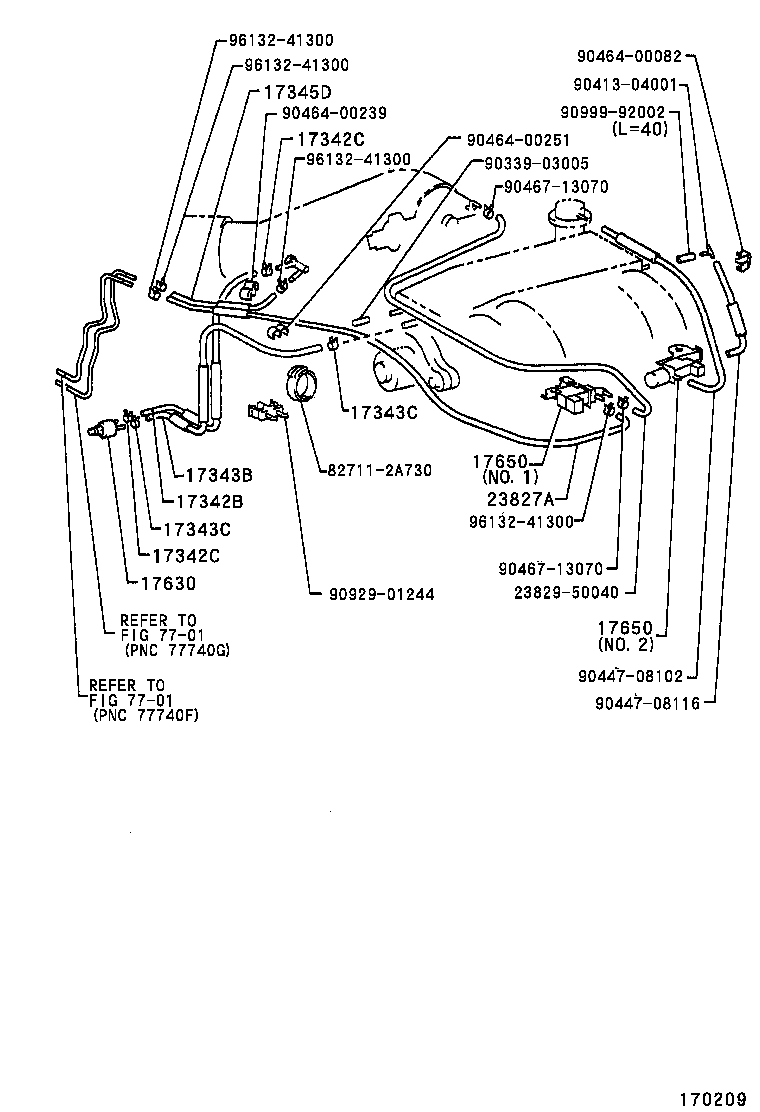

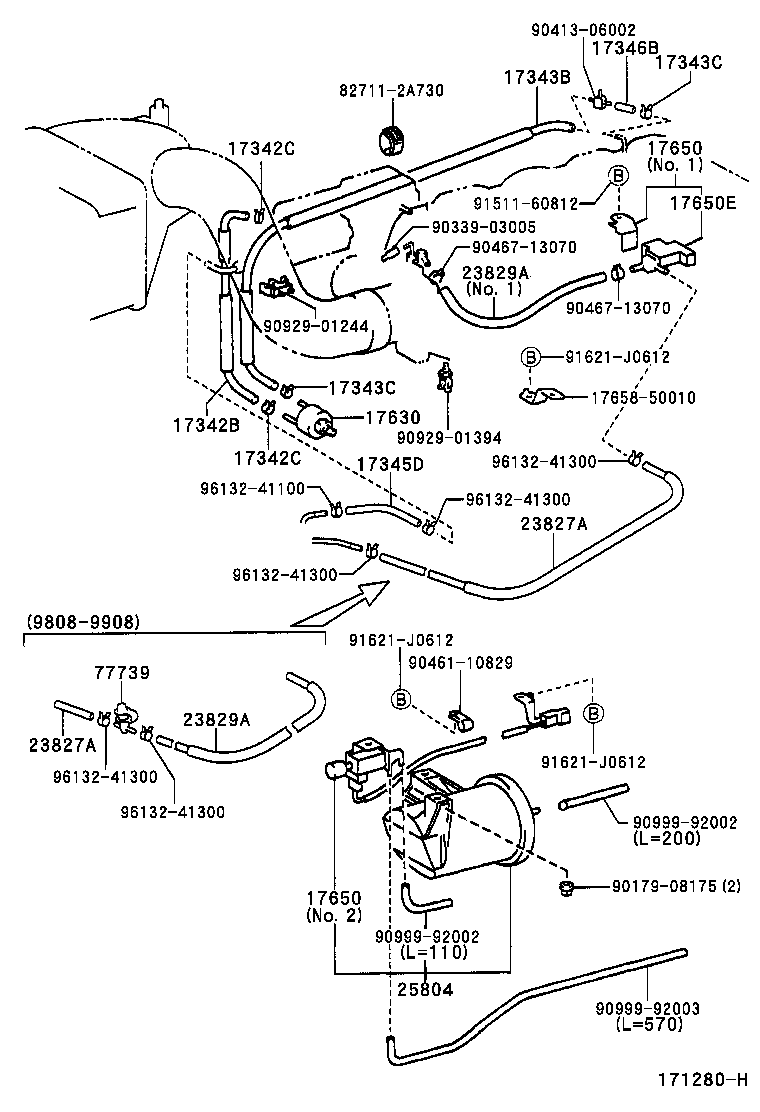

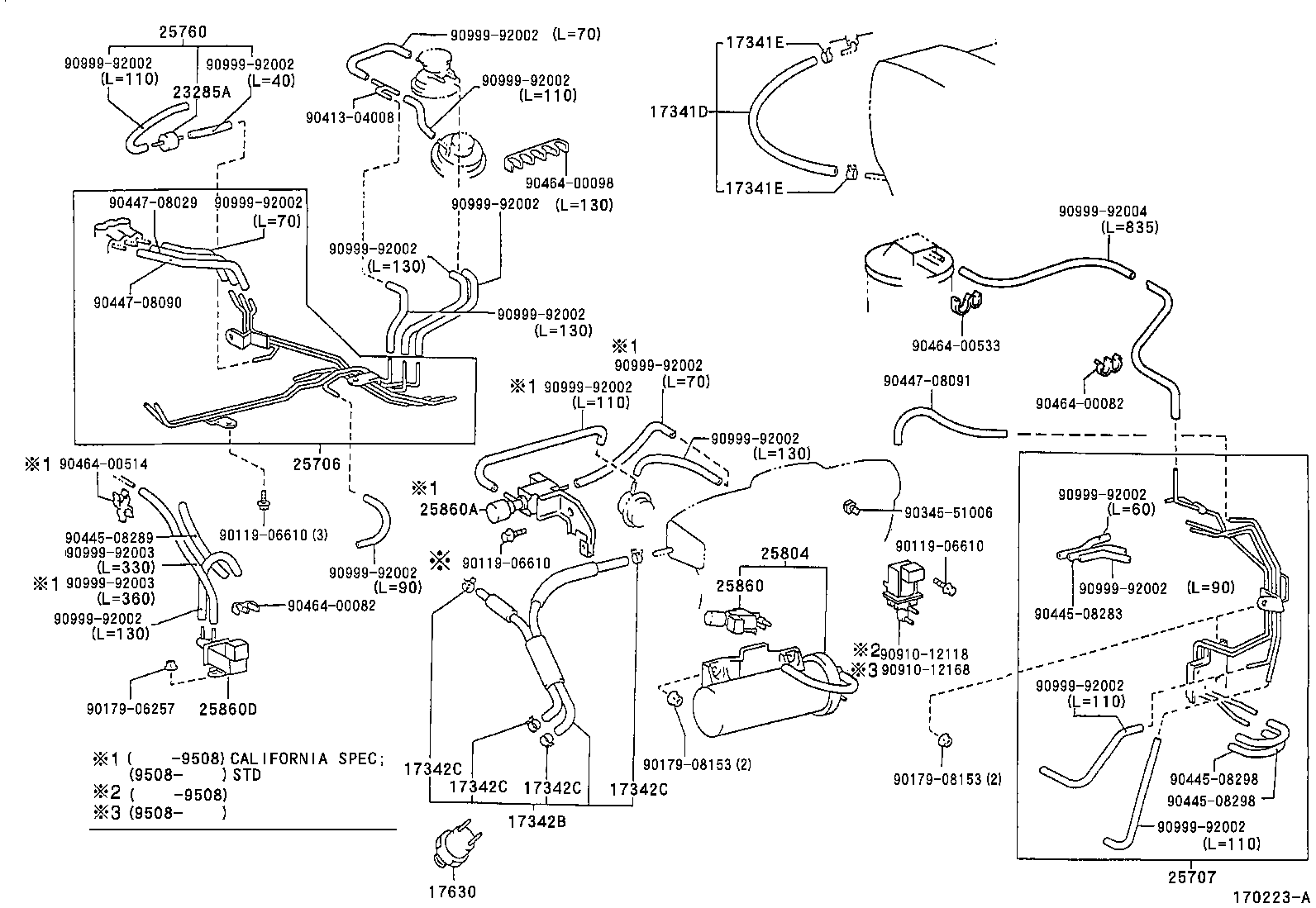

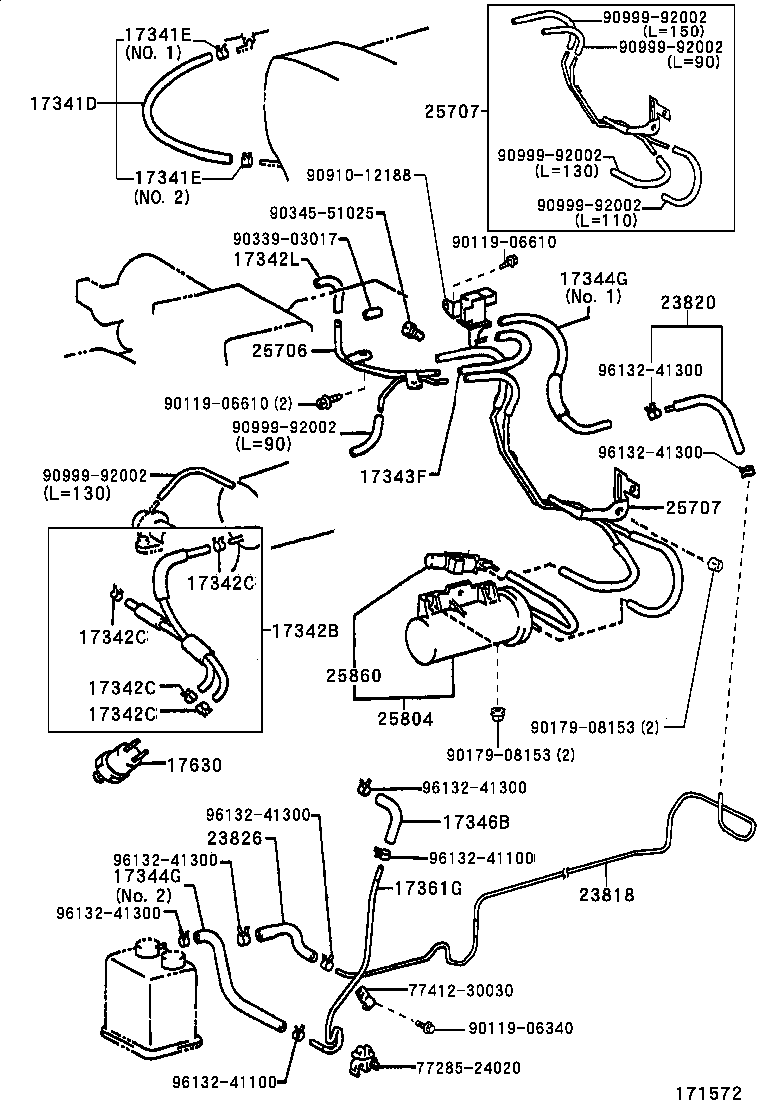

Figure 170021 170021 1991-04 → — Figure 170221A 170221A 1991-08 → 1992-01 Figure 170222A 170222A 1992-01 → 1994-01 Figure 170223A 170223A 1994-01 → 1997-09 Figure 171572 171572 1997-09 → 1998-08 Figure 171741A 171741A 1998-08 → 1999-08 Figure 172362 172362 1999-08 → — Figure MAE520D MAE520D 1991-04 → 1994-01 Figure 170165 170165 1994-01 → 1995-08 Figure 170164A 170164A 1995-08 → 1996-08 Figure 170209 170209 1996-08 → 1997-09 Figure 171280H 171280H 1997-09 → 1999-08 Figure 172314 172314 1999-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17343F Hose, Air, NO.3
17344G Hose, Air, NO.4
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
77739 Valve, Evap Service Port
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
