Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

18 part groups · 3 illustrations

Illustrations

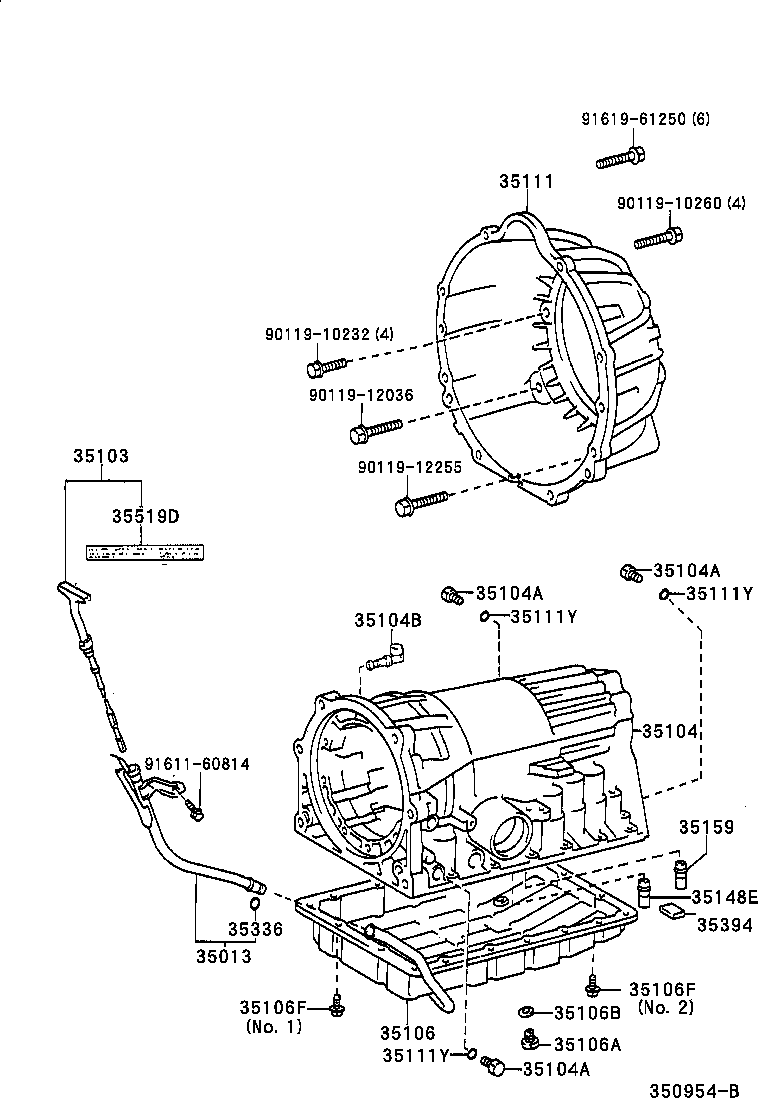

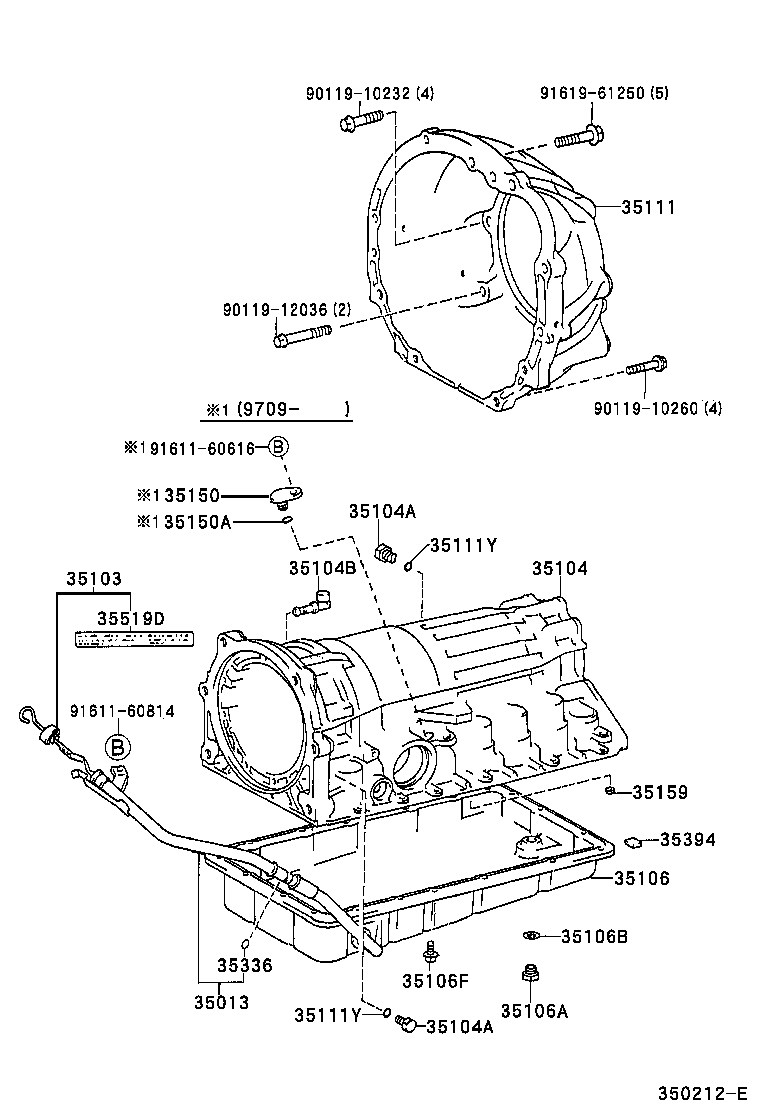

Figure 351152 351152 1991-04 → 1997-09 Figure 350212E 350212E 1991-08 → — Figure 350954B 350954B 1997-09 → —

Part groups

PNCDescription
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35148E Gasket, Brake Drum, NO.2
35150 Plug Assy, Transmission Case
35150A Ring, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35159 Gasket, Brake Drum
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
