Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

13 part groups · 4 illustrations

Illustrations

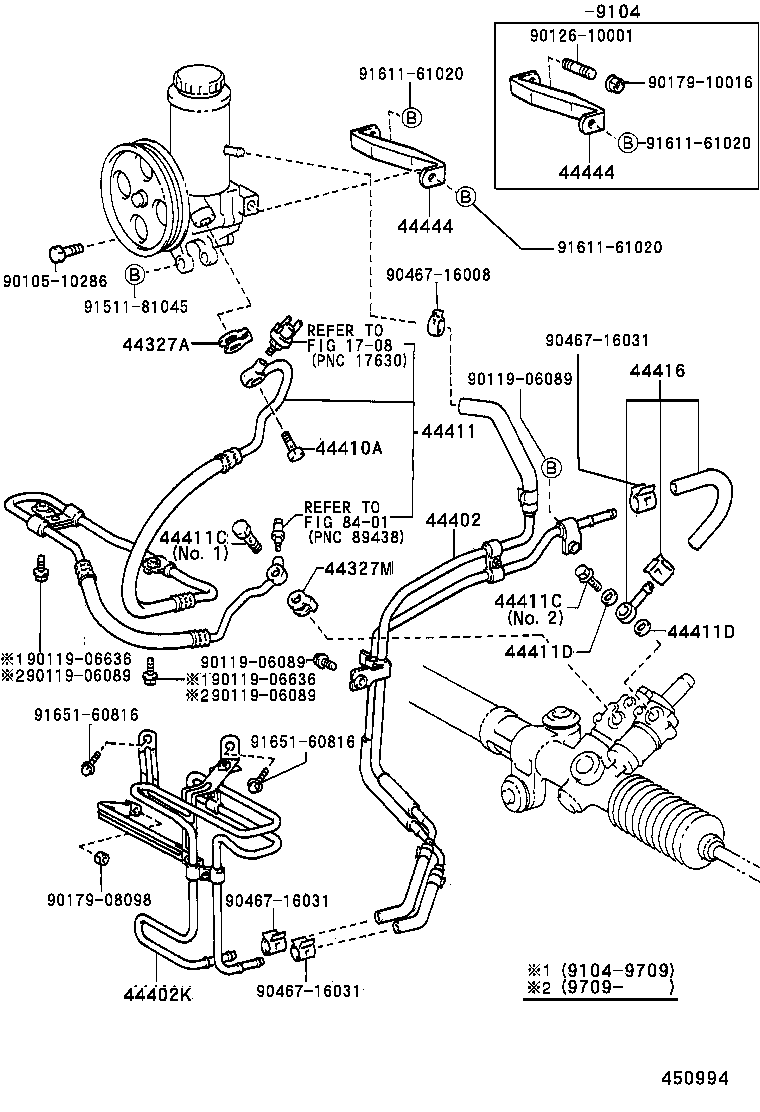

Figure 450103B 450103B 1991-04 → 1997-09 Figure 450103B 450103B 1997-09 → — Figure 450994 450994 1991-08 → 1997-09 Figure 450994 450994 1991-08 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44327M Gasket, Pressure Port, NO.2
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402K Cooler Sub-assy, Power Steering Oil, NO.2
44403 Tube Sub-assy, Pressure Feed, NO.1
44406D Tube Sub-assy, Return, NO.1
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
