Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

69 part groups · 12 illustrations

Illustrations

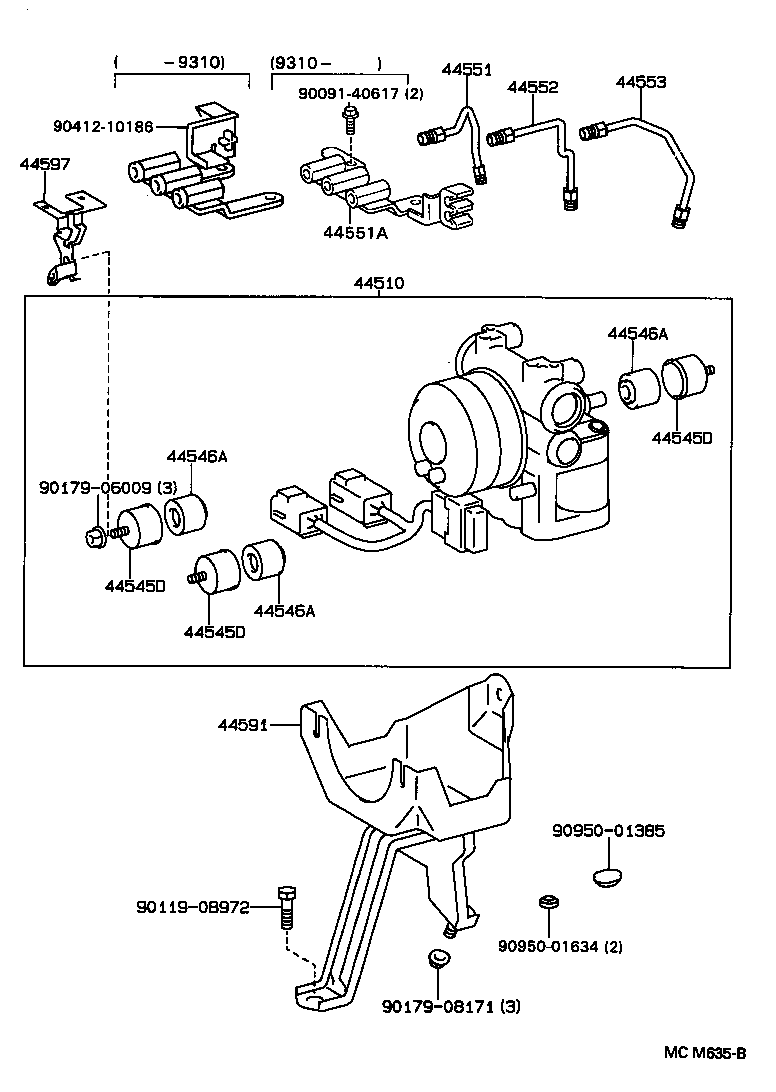

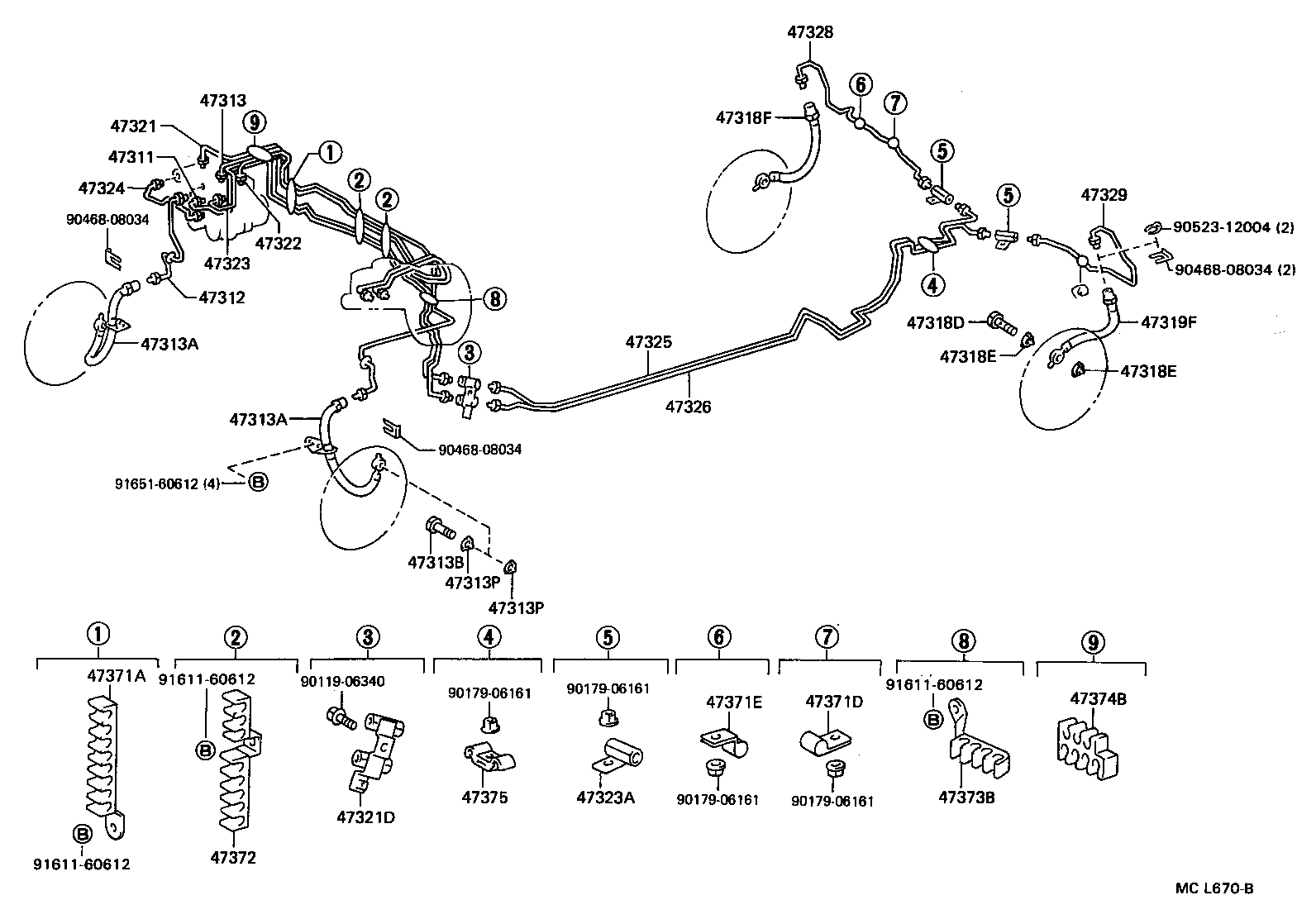

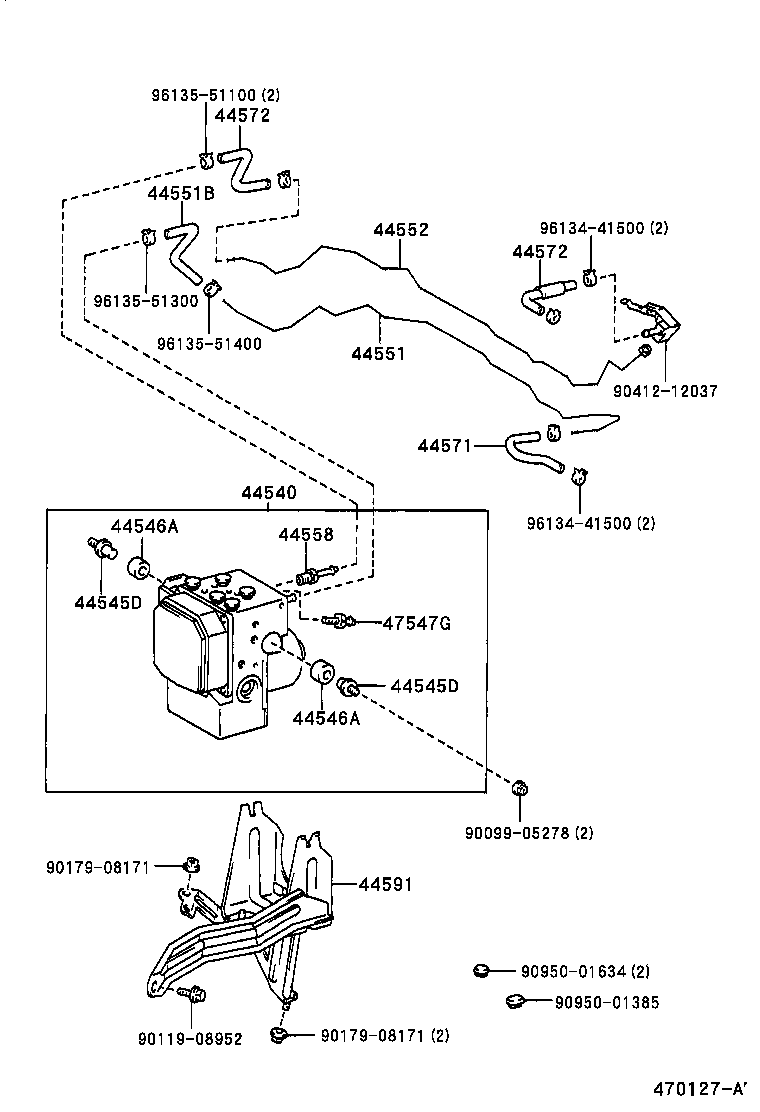

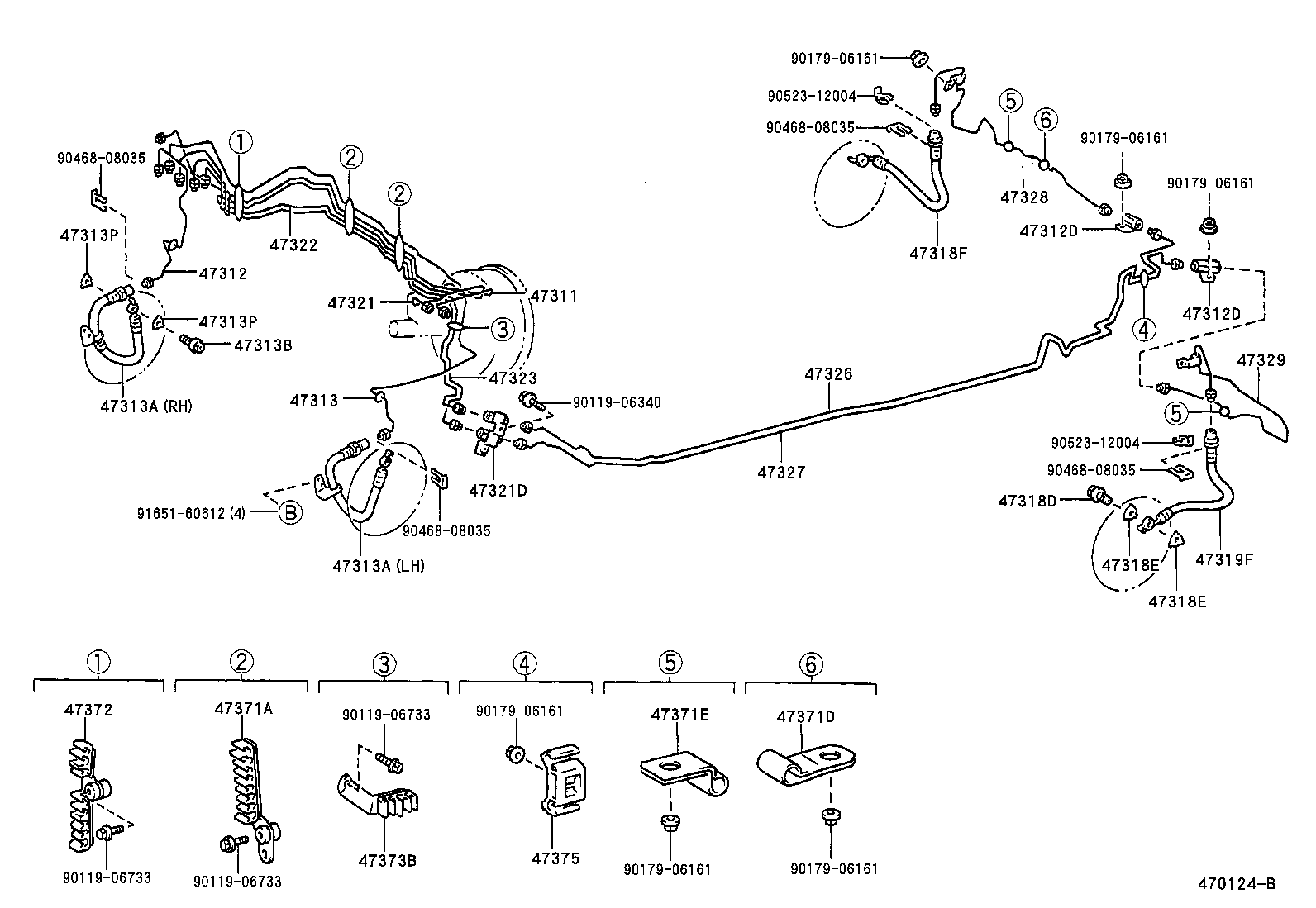

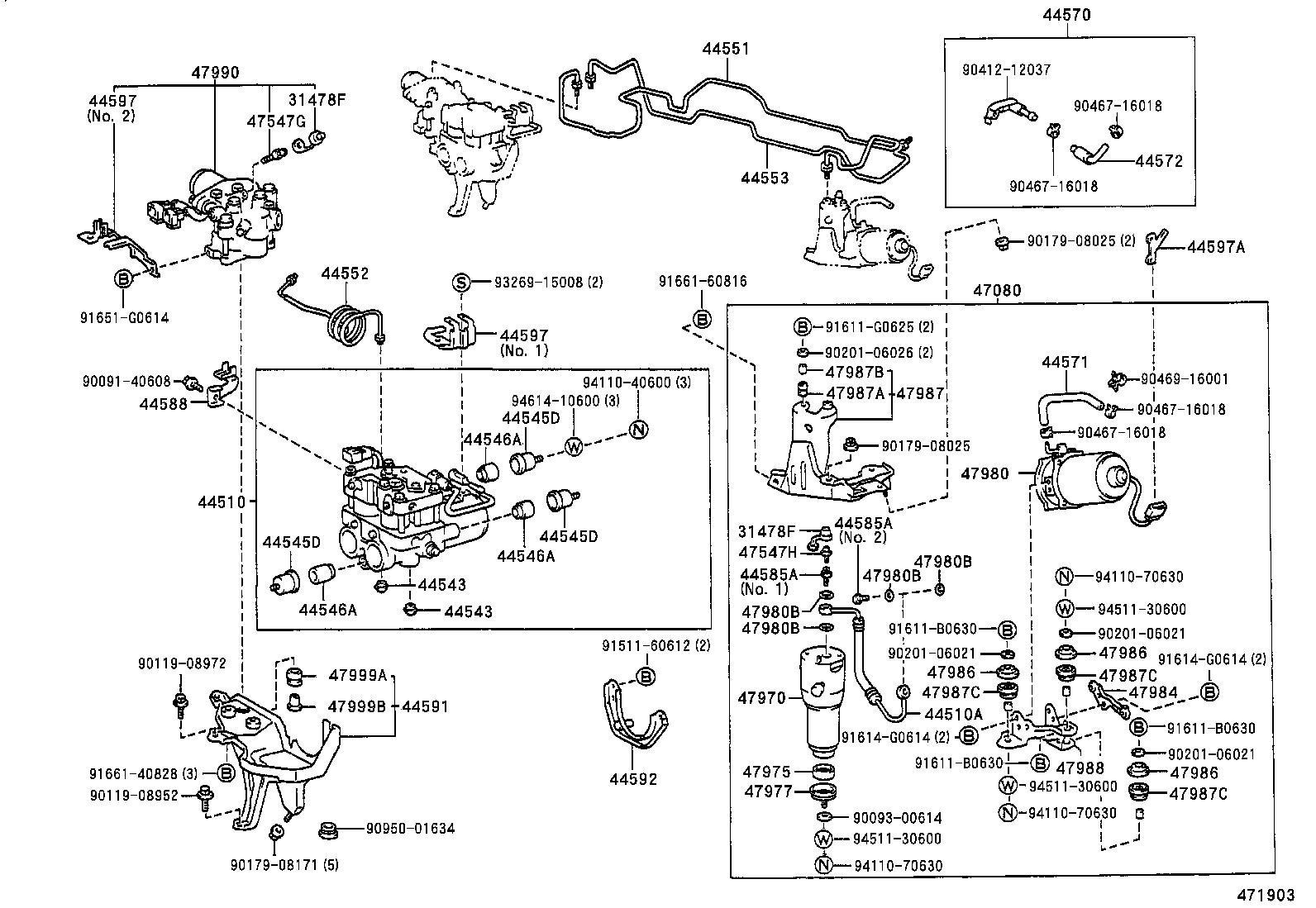

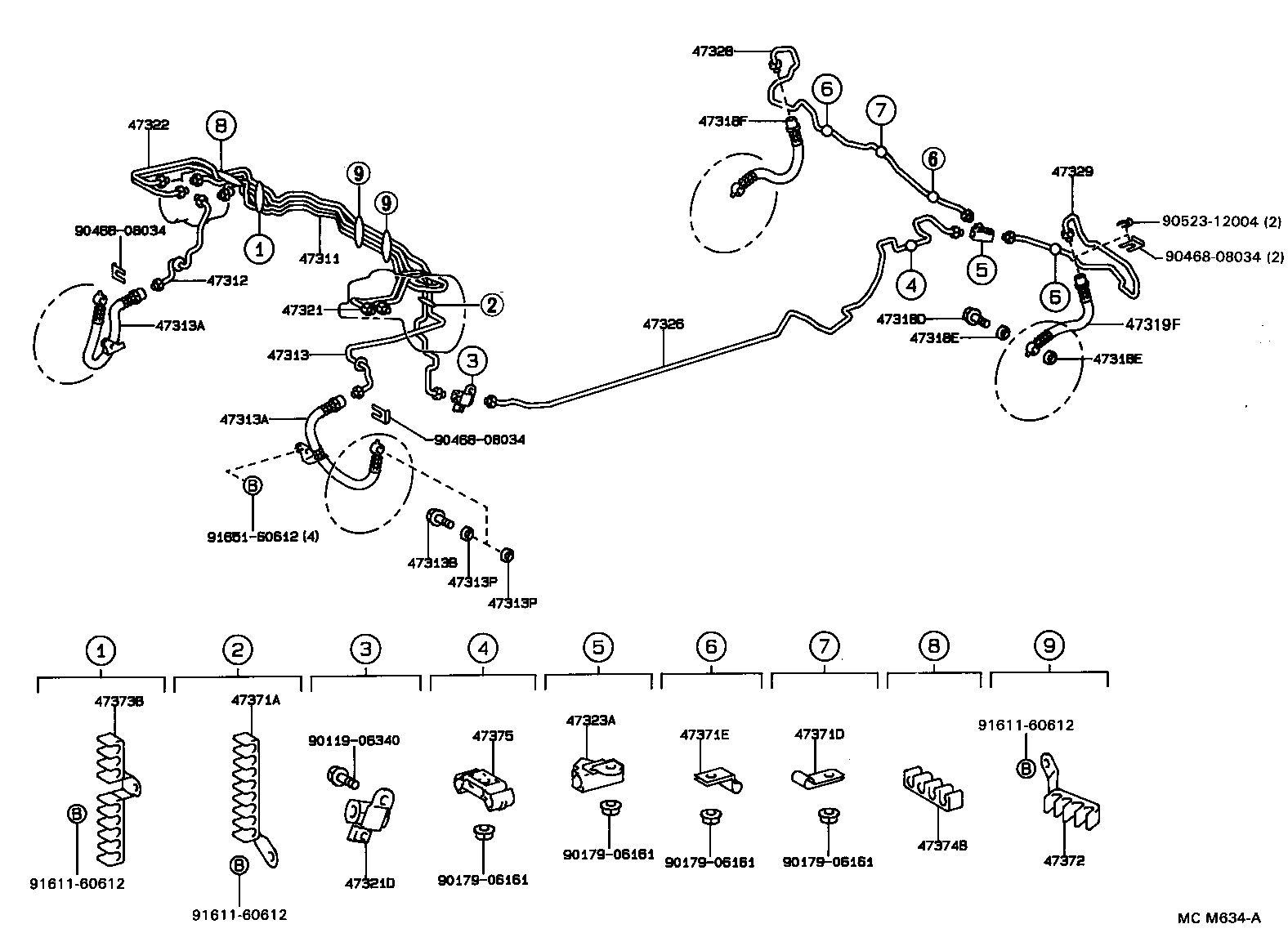

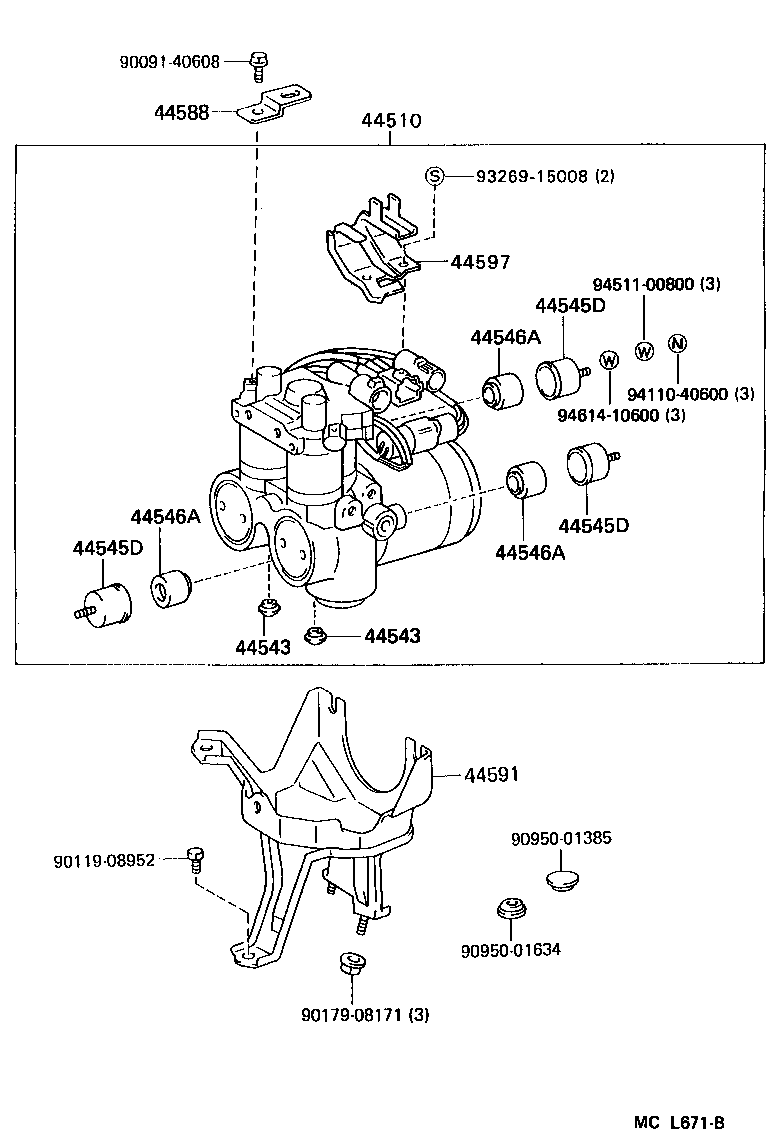

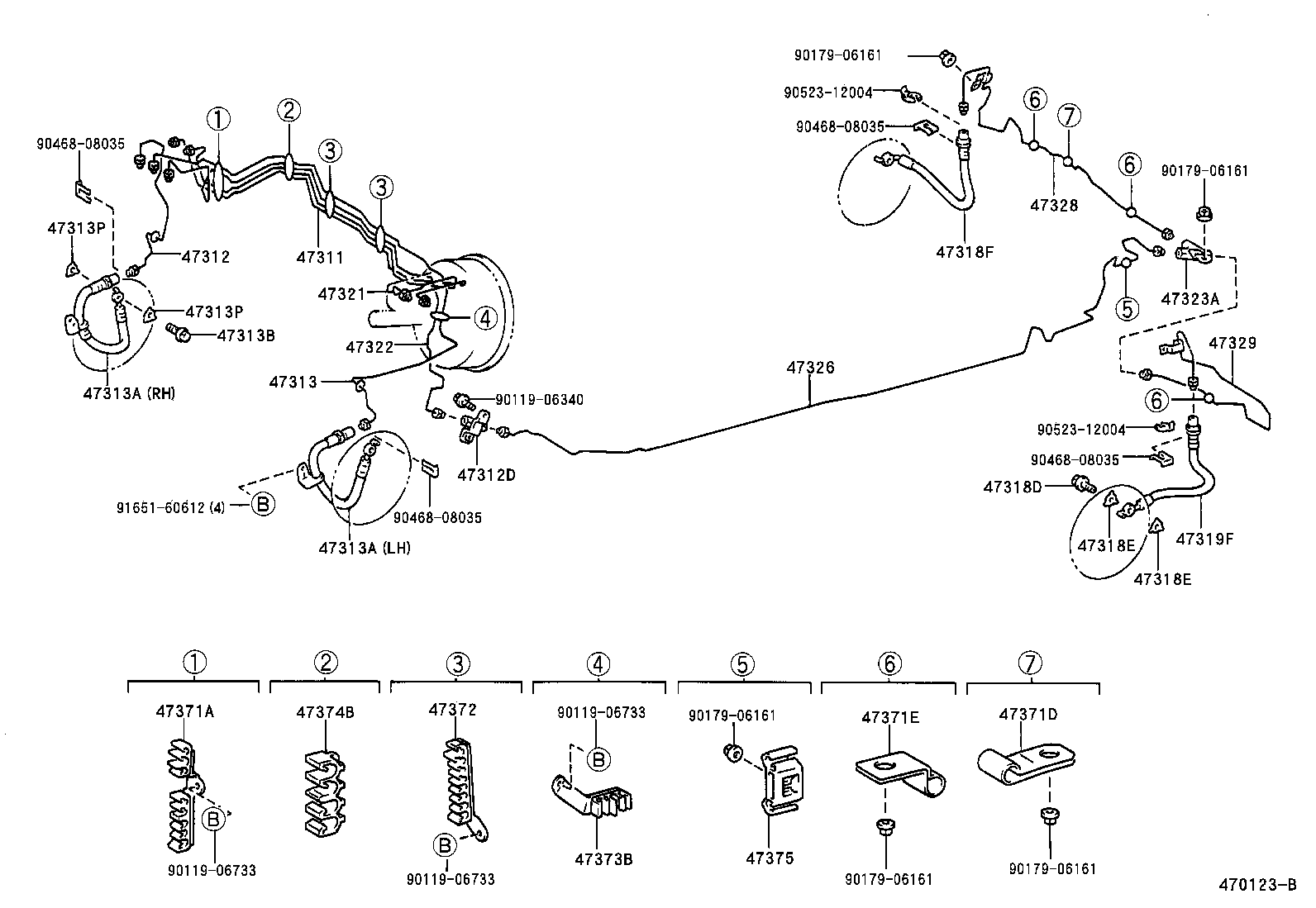

Figure MCL669C MCL669C 1991-04 → 1992-04 Figure MCM634A MCM634A 1991-08 → 1992-04 Figure MCM634A MCM634A 1992-04 → 1996-08 Figure MCL670B MCL670B 1991-04 → 1996-08 Figure MCL671B MCL671B 1991-04 → 1991-10 Figure MCM635B MCM635B 1991-08 → 1996-08 Figure MCM635B MCM635B 1991-10 → 1996-08 Figure 471903 471903 1991-04 → 1996-08 Figure 470123B 470123B 1996-08 → — Figure 470124B 470124B 1996-08 → — Figure 470126 470126 1996-08 → — Figure 470127A 470127A 1996-08 → —

Part groups

PNCDescription
31478F Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
44510 Actuator Assy, Brake
44510A Hose, Pressure
44540 Actuator Assy, Abs & Traction
44543 Cap, Rubber
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44551B Hose, Brake Actuator
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44558 Tube, Brake Actuator, NO.8
44570 Hose Assy, Brake Actuator
44571 Hose, Brake Actuator
44572 Hose, Brake Actuator, NO.2
44585A Bolt, Union(FOR BRAKE ACTUATOR RETURN TUBE)
44588 Clamp, Brake Actuator Wire
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44597 Clamp, Brake Actuator Connector, NO.1
44597A Clamp, Brake Actuator Connector, NO.2
47080 Pump Assy, Brake Traction W/Bracket
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47312D Way, 2(FOR REAR BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47371A Clamp, Brake Tube, NO.1
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47547G Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
47547H Plug, Bleeder(FOR BRAKE TRACTION ACCUMULATOR)
47970 Accumulator Assy, Brake Traction
47975 Bush, Brake Traction Accumulator
47977 Bracket, Brake Traction Accumulator, NO.1
47980 Pump Assy, Brake Traction
47980B Ring, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47984 Clamp, Brake Traction Pump Wire
47986 Cover, Brake Traction Pump, NO.2
47987 Bracket, Brake Traction Pump, NO.1
47987A Bush, NO.1(FOR BRAKE TRACTION PUMP BRACKET)
47987B Spacer(FOR BRAKE TRACTION PUMP BRACKET)
47987C Bush, NO.2(FOR BRAKE TRACTION PUMP BRACKET)
47988 Bracket, Brake Traction Pump, NO.2
47990 Actuator Assy, Brake Traction
47999A Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
47999B Spacer(FOR BRAKE TRACTION ACTUATOR BRACKET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
