Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01

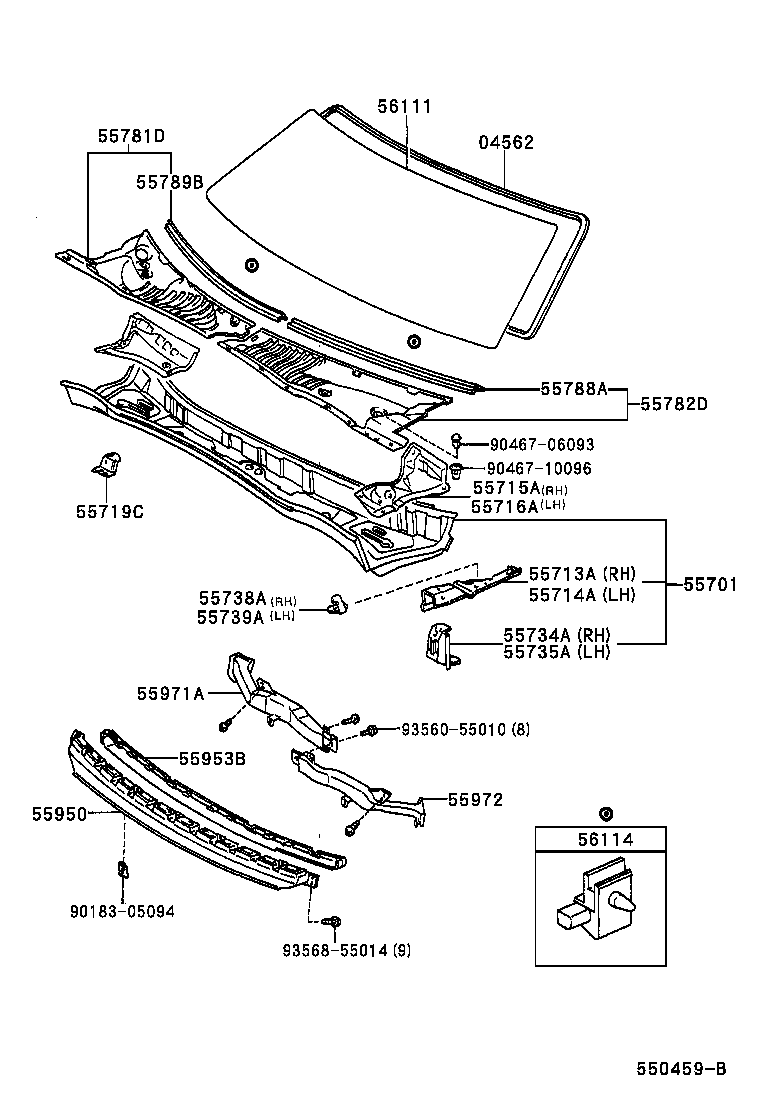

Cowl Panel & Windshield Glass
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04562 | Dam Kit, Windshield Glass |
| 55701 | Panel Sub-assy, Cowl |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55719C | Bracket, Windshield Wiper Motor |
| 55734A | Plate, Water Guard, RH |
| 55735A | Plate, Water Guard, LH |
| 55738A | Stopper, Hood, RH |
| 55739A | Stopper, Hood, LH |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55788A | Protector, Cowl Top Ventilator Louver |
| 55789B | Protector, Cowl Top Venttinator Louver, NO.2 |
| 55950 | Nozzle Assy, Defroster |
| 55953B | Nozzle, Defroster, Rear |
| 55971A | Duct, Side Defroster Nozzle, NO.1 |
| 55972 | Duct, Side Defroster Nozzle, NO.2 |
| 56111 | Glass, Windshield |
| 56114 | Retainer, Windshield Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
