Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

15 part groups · 2 illustrations

Illustrations

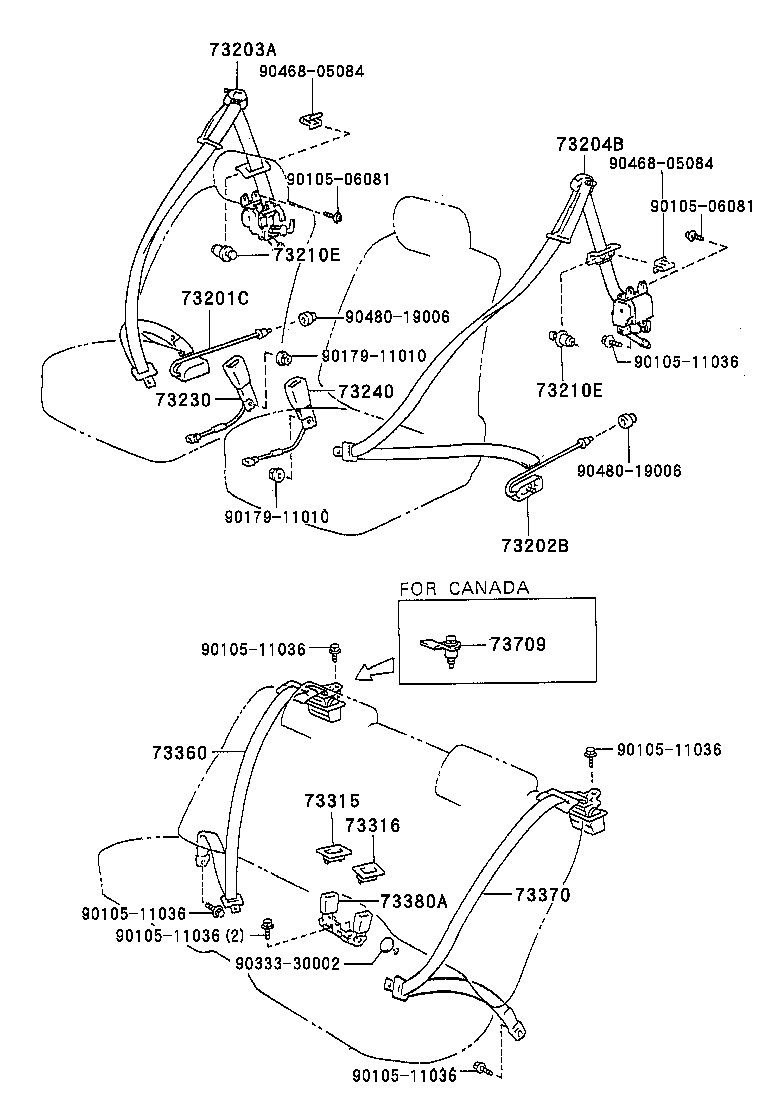

Figure MN1171A MN1171A 1991-04 → 1995-08 Figure 710200 710200 1995-08 → —

Part groups

PNCDescription
73201C Bar Sub-assy, Front Seat Belt, Outer RH
73202B Bar Sub-assy, Front Seat Belt, Outer LH
73203A Belt Sub-assy, Front Seat, Outer RH
73204B Belt Sub-assy, Front Seat, Outer LH
73210 Belt Assy, Front Seat Outer, RH
73210E Clip (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73315 Cover, RR Seat Belt, Inner RH
73316 Cover, RR Seat Belt, Inner LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380A Belt Assy, Rear Seat, Inner
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
