Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 12 illustrations

Illustrations

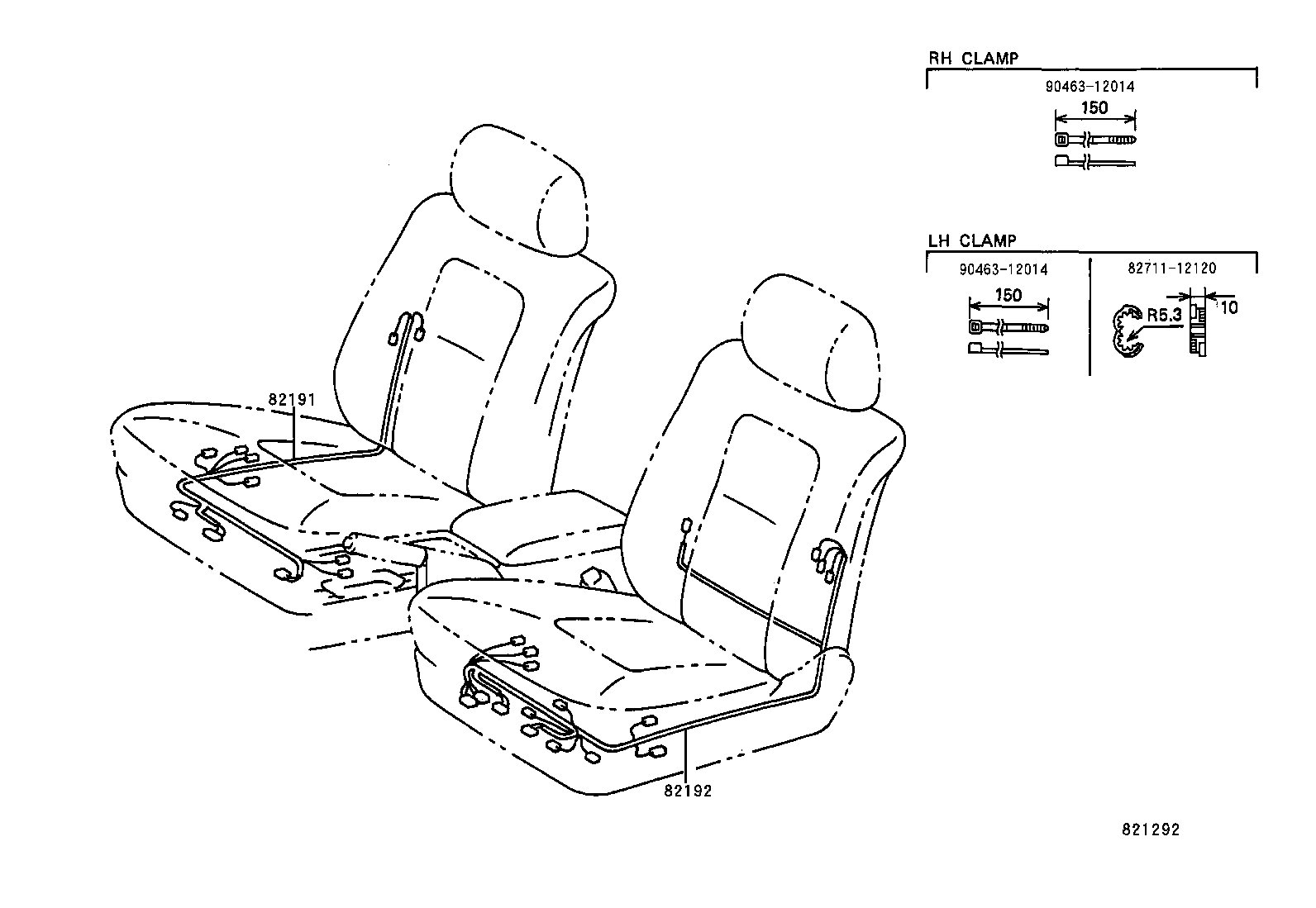

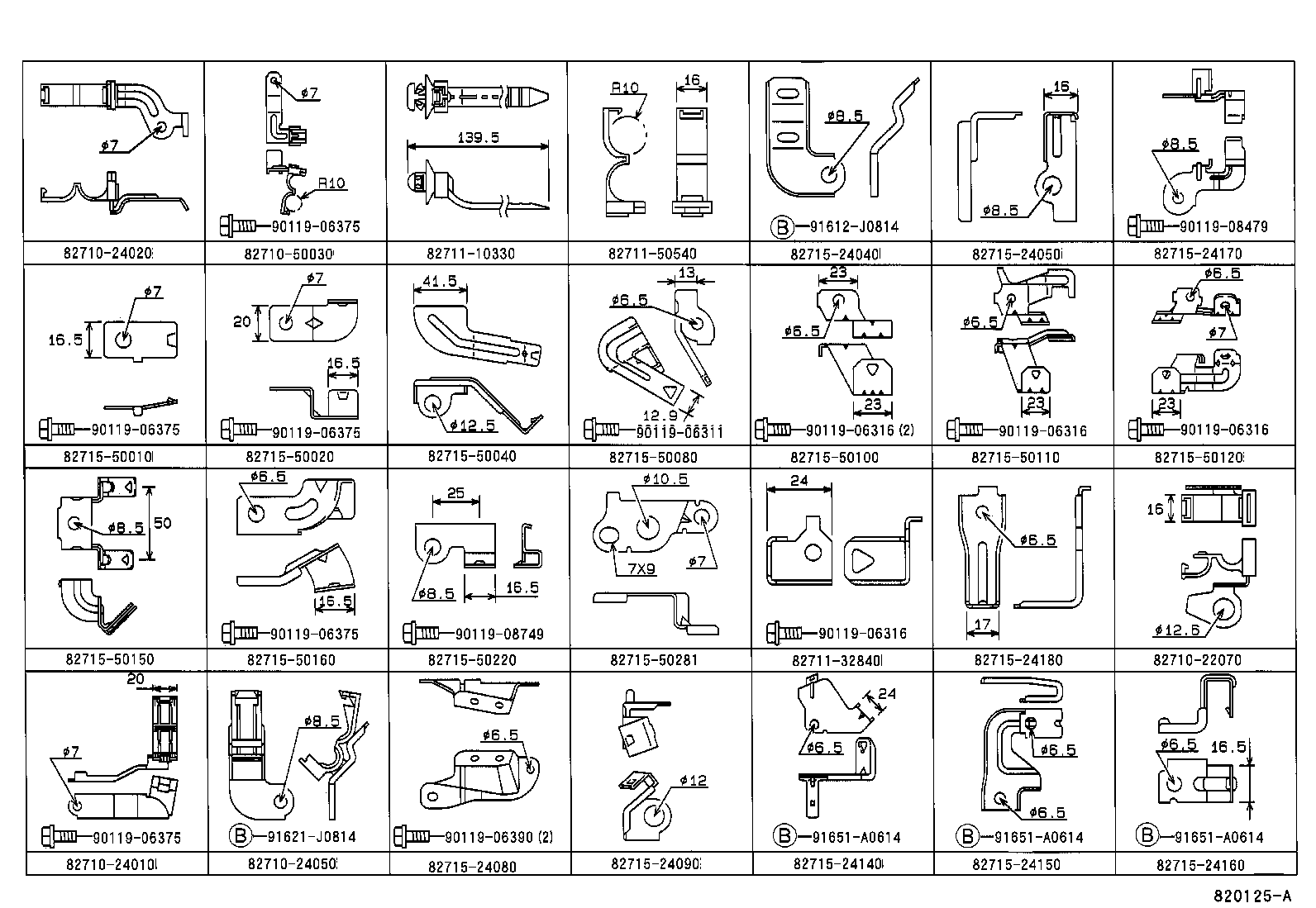

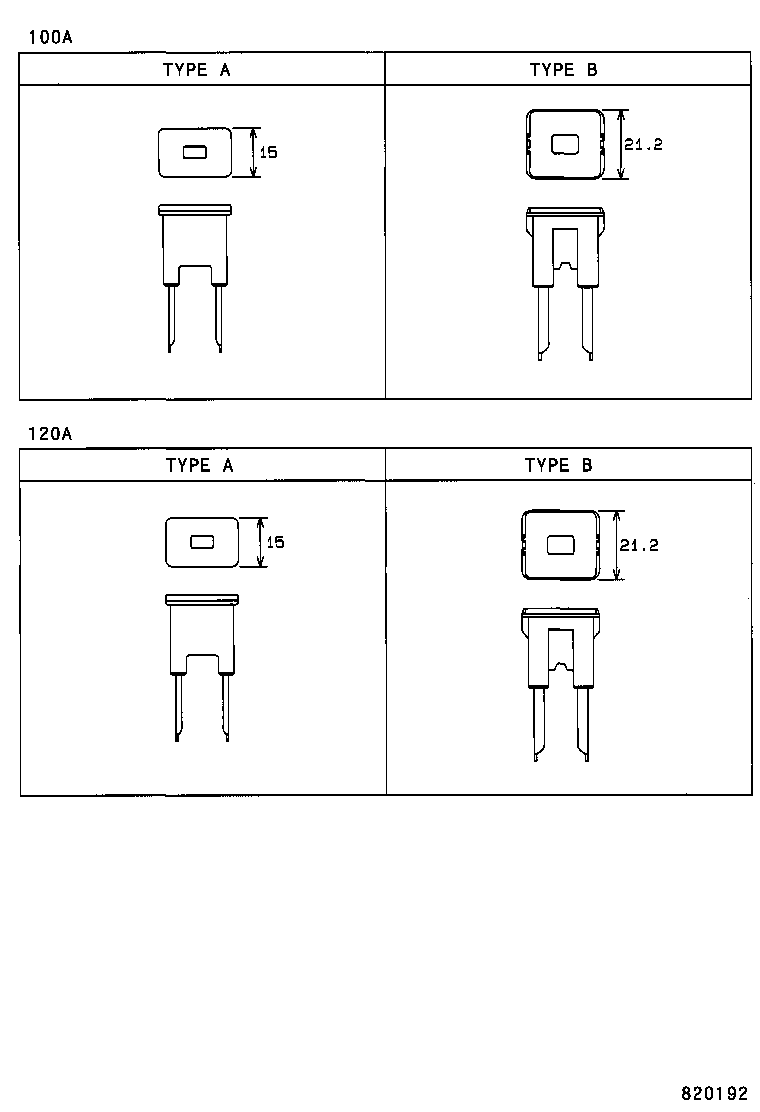

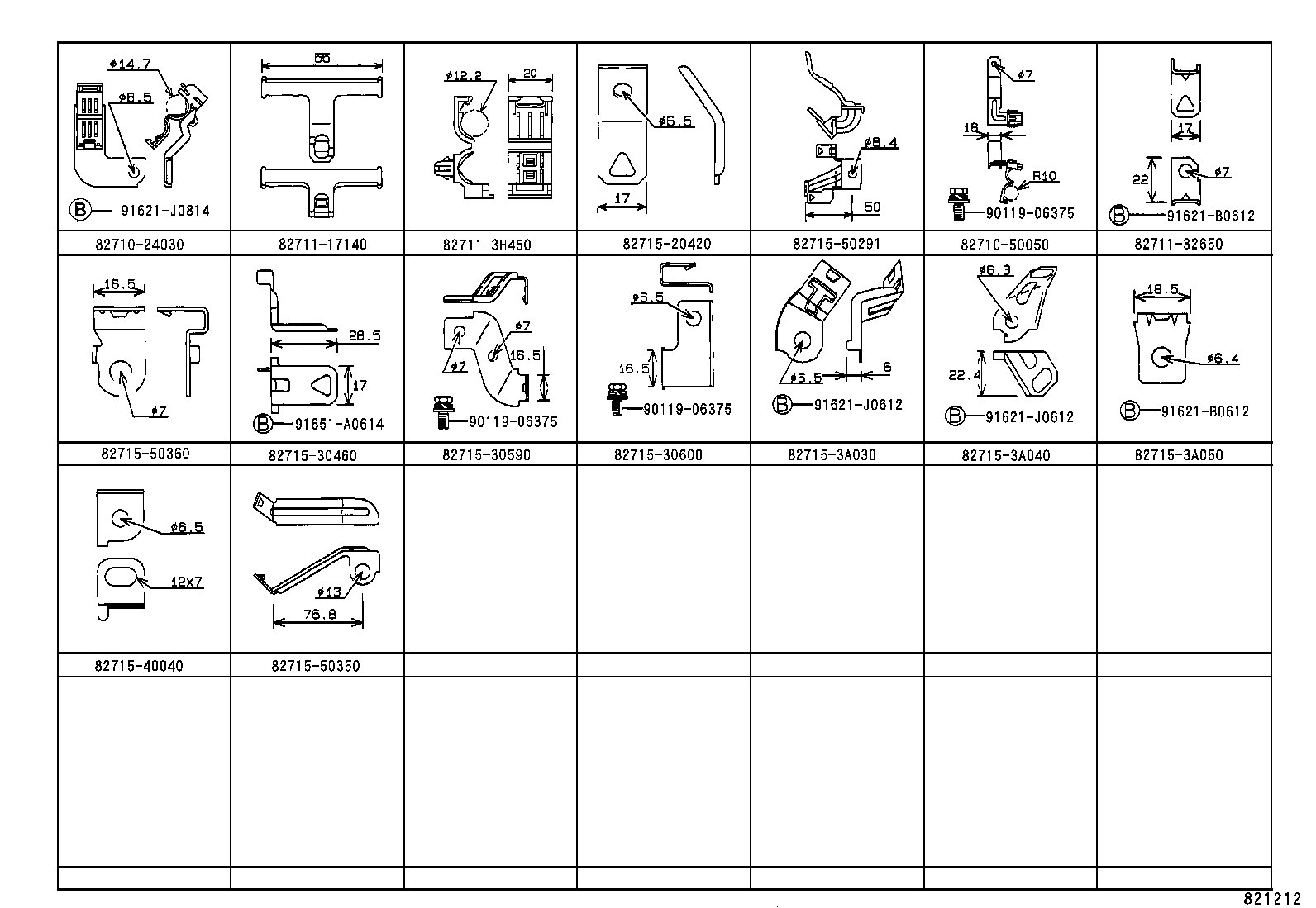

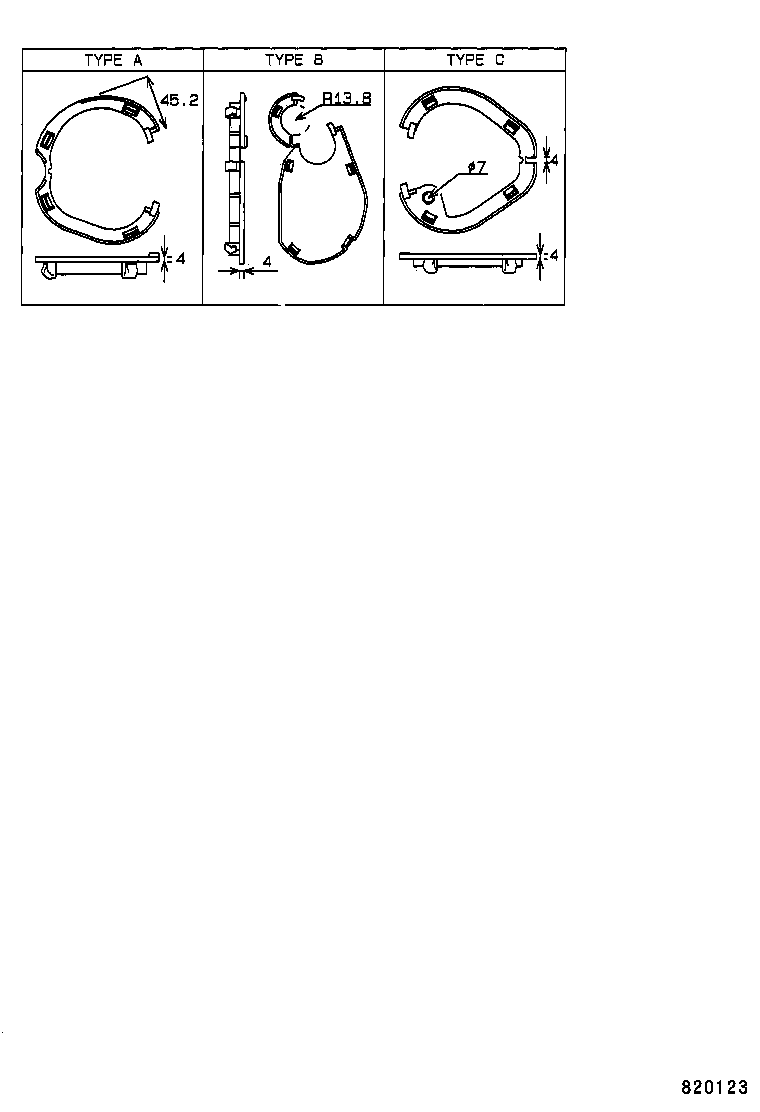

Figure 820122 820122 1991-04 → — Figure 820123 820123 1991-04 → — Figure 820192 820192 1991-04 → — Figure 820124B 820124B 1991-04 → — Figure 821212 821212 1991-04 → — Figure 820125A 820125A 1991-04 → — Figure 820127A 820127A 1991-04 → — Figure 821291 821291 1991-04 → — Figure 820193A 820193A 1991-04 → — Figure 821292 821292 1991-04 → — Figure 820186 820186 1991-04 → — Figure 820128A 820128A 1991-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82210C Fusible Link
82223 Wire, Switch
82241 Wiring Assy, Headlamp Junction
82345 Diode
82670D Block Assy, Junction,NO.2
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness
82981 Wire, Headlamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82988 Wire, Airbag Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
