Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01
Meter
18 part groups · 5 illustrations

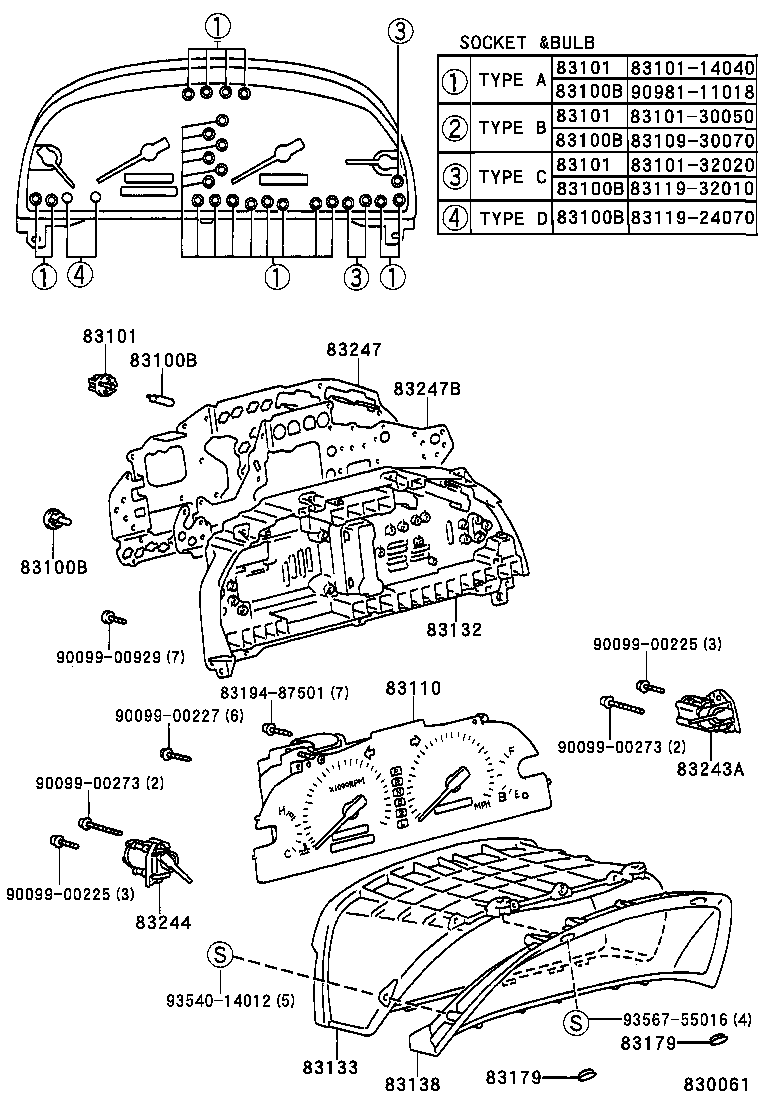

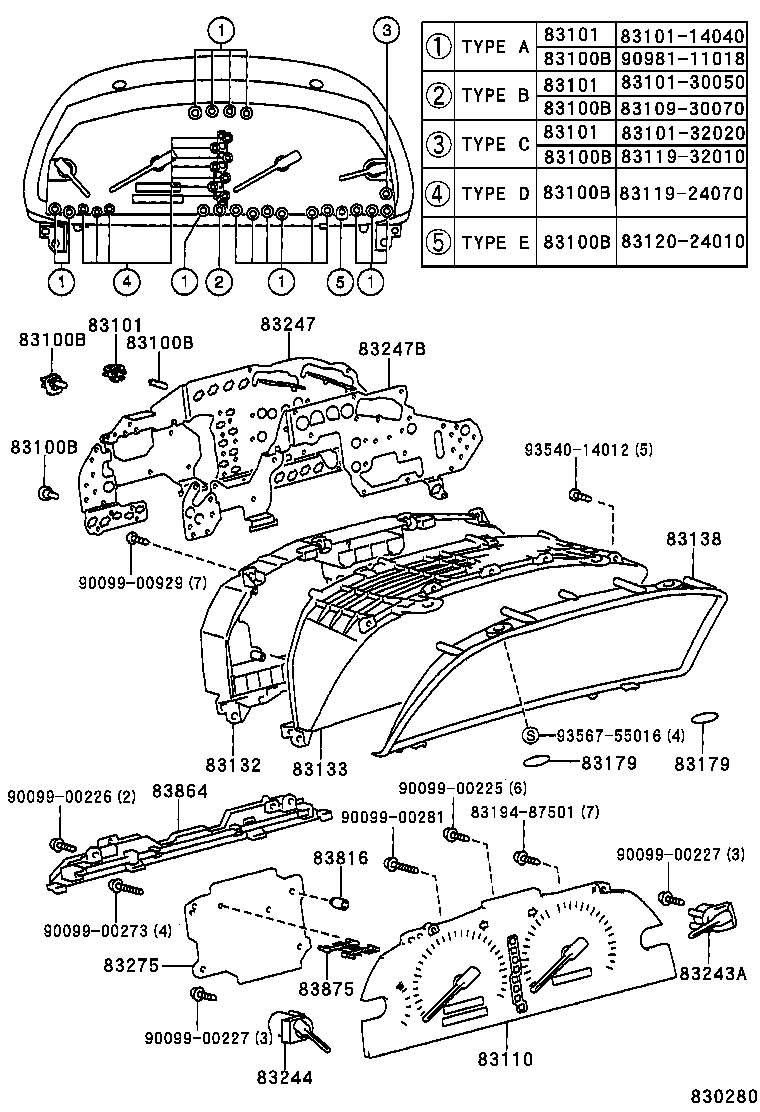

Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83132B | Case, Combination Meter NO.3 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83179 | Cover, Combination Meter, Hole |
| 83181A | Sensor, Speedometer |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83275 | Plate,Computer Meter Circuit NO.1 |
| 83291 | Computer, Combination Meter |
| 83816 | Plate, Combination Meter, NO.6 |
| 83864 | Plate, Meter Circuit, NO.4 (FOR COMPUTER) |
| 83875 | Wire, Combination Meter, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
