Toyota Lexus SC300/400
1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States
Discontinued model
Data version 2001-01
Abs & Vsc

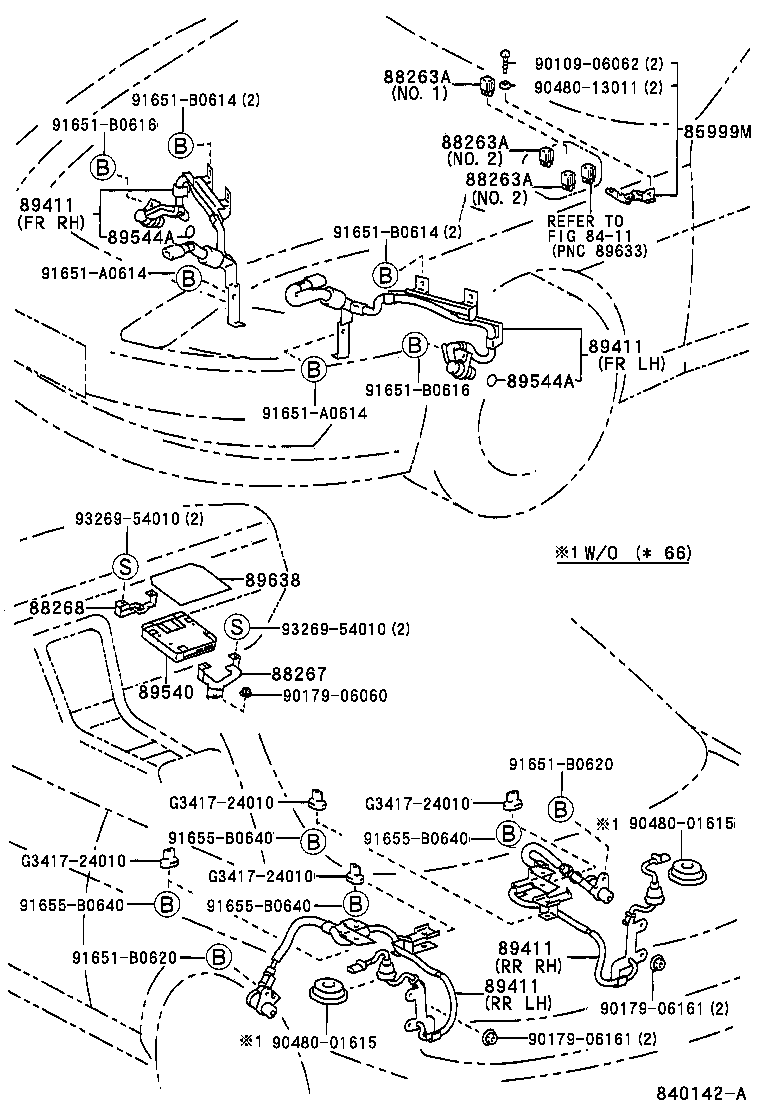

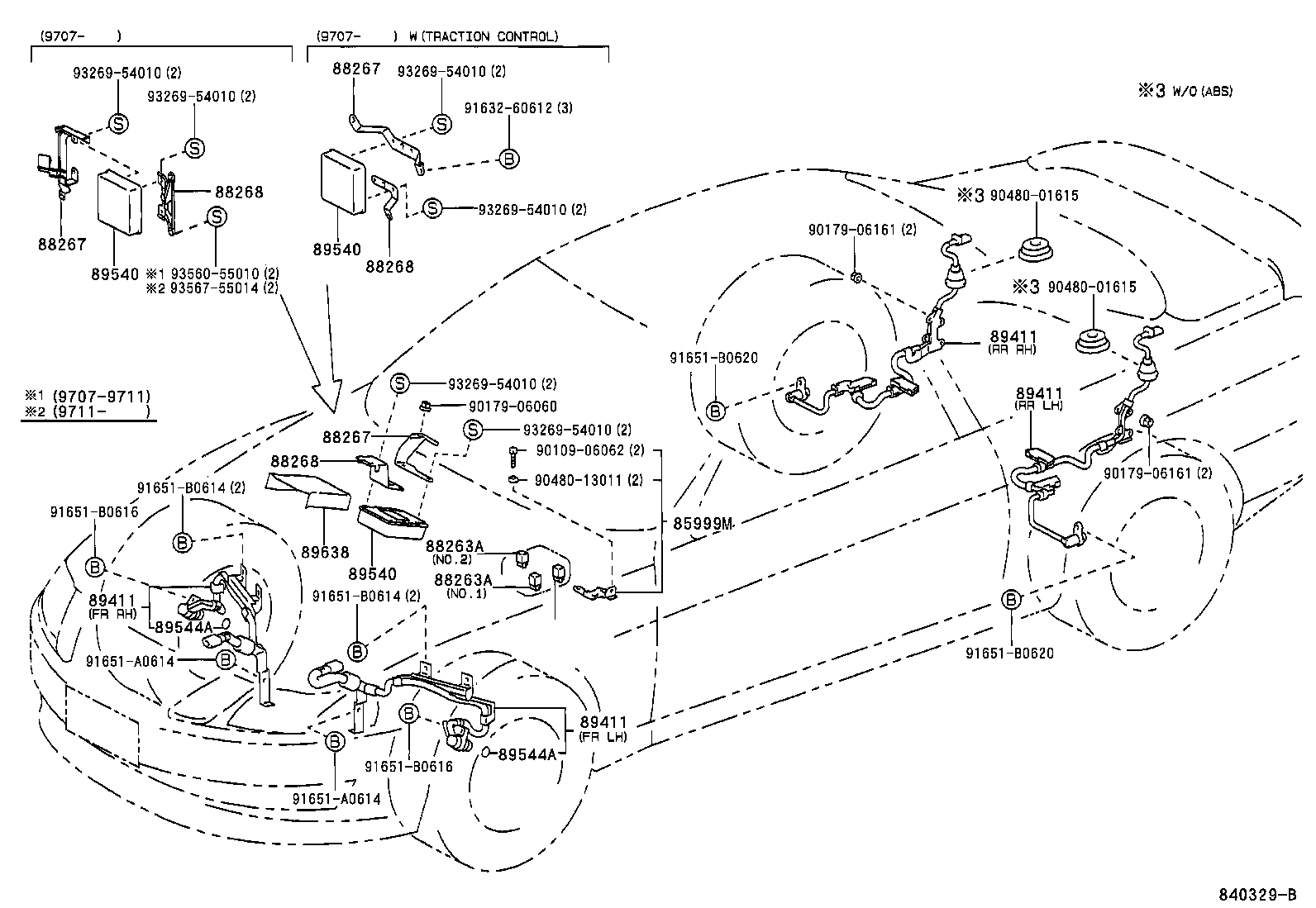

8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 88267 | Bracket, Skid Control Computer, NO.1 |
| 88268 | Bracket, Skid Control Computer, NO.2 |
| 89411 | Sensor, Speed |
| 89540 | Computer Assy, Skid Control |
| 89544A | Ring, O (FOR SKID CONTROL SENSOR) |
| 89638 | Cover, Brake Control Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
