Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

15 part groups · 4 illustrations

Illustrations

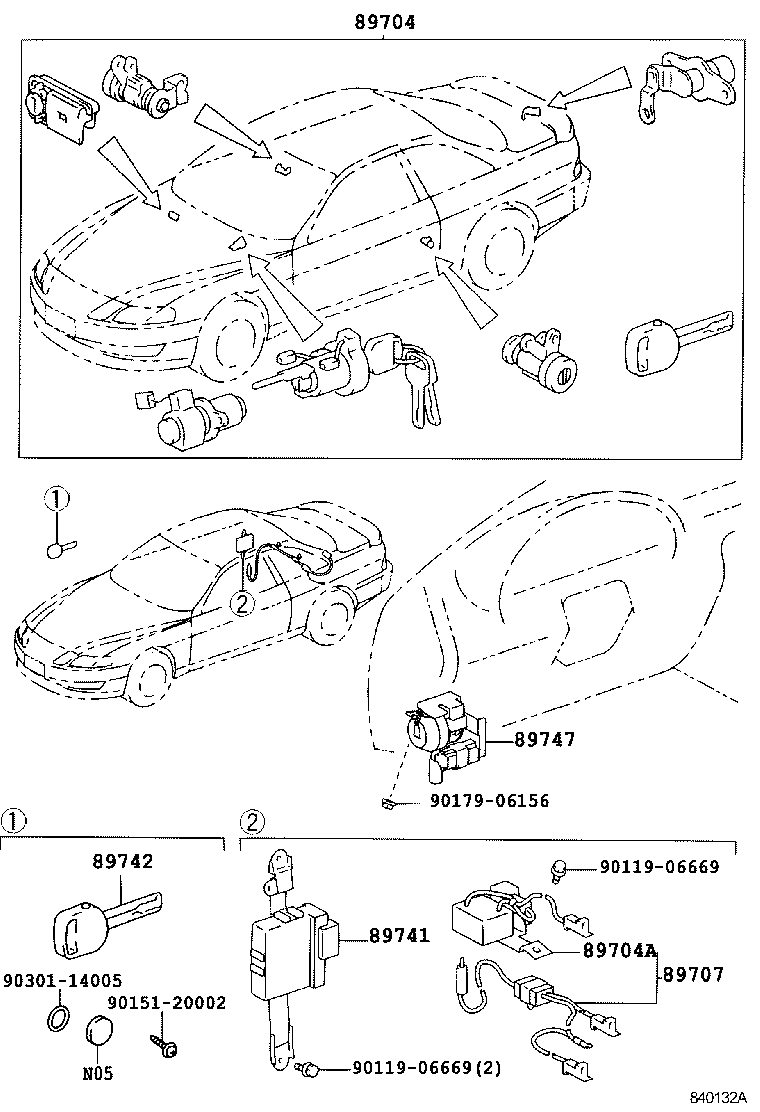

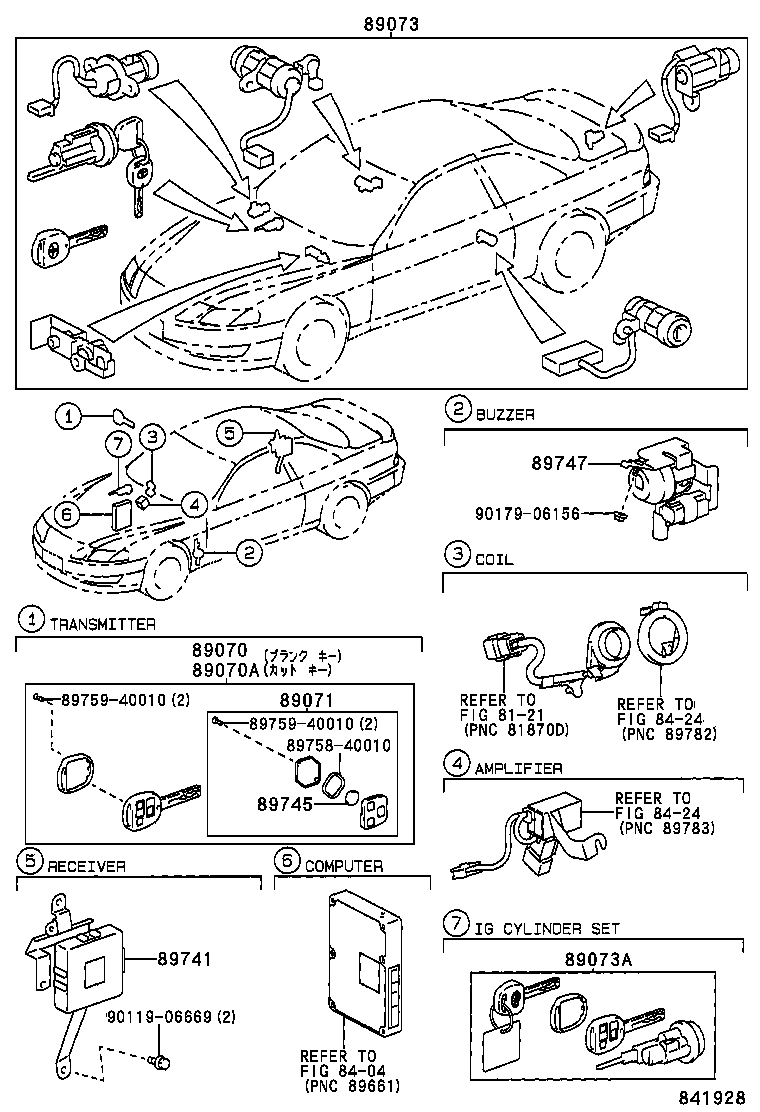

Figure 841626A 841626A 1991-04 → 1994-01 Figure 840132A 840132A 1994-01 → 1995-08 Figure 840133 840133 1995-08 → 1997-09 Figure 841928 841928 1997-09 → —

Part groups

PNCDescription
84987A Switch, Keyless Entry Cancel
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89704 Control Set, Wireless Door Lock
89704A Filter, Noise(FOR WIRELESS DOOR LOCK)
89705 Transmitter, Door Control
89707 Cord Sub-assy, Wireless Door Lock
89741 Receiver, Door Control
89742 Transmitter, Door Control
89743 Receiver, Door Control
89745 Battery, Transmitter
89747 Buzzer, Wireless Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
