Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 5 illustrations

Illustrations

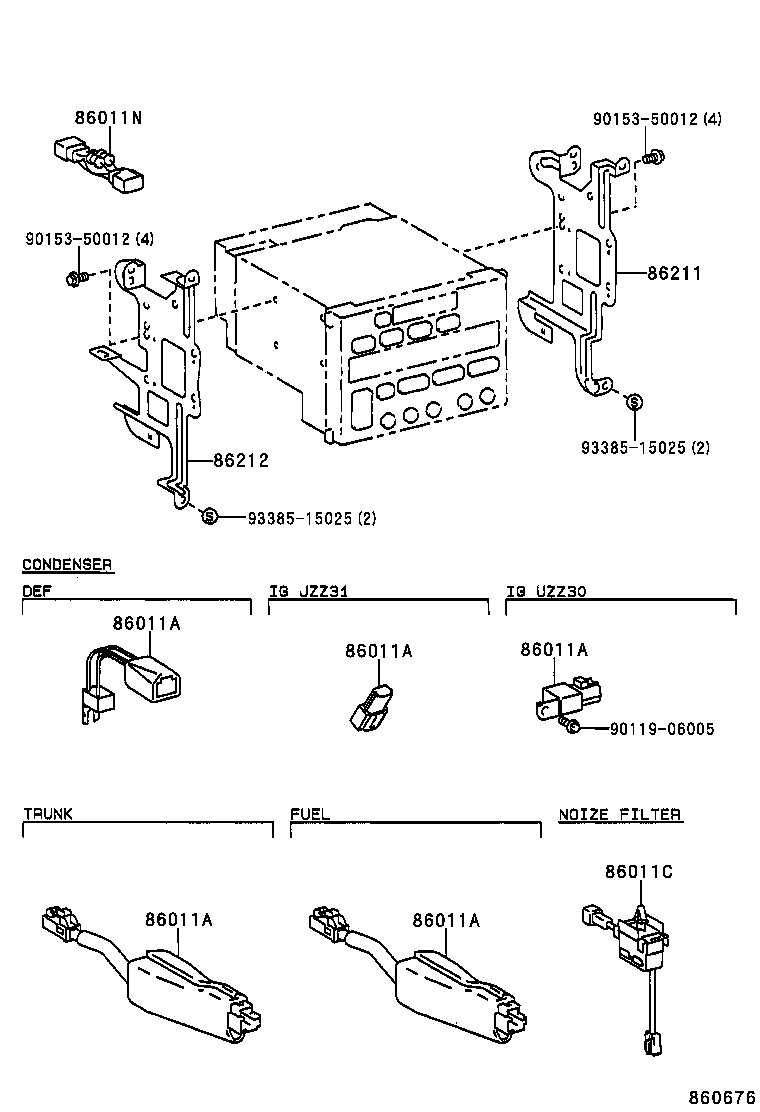

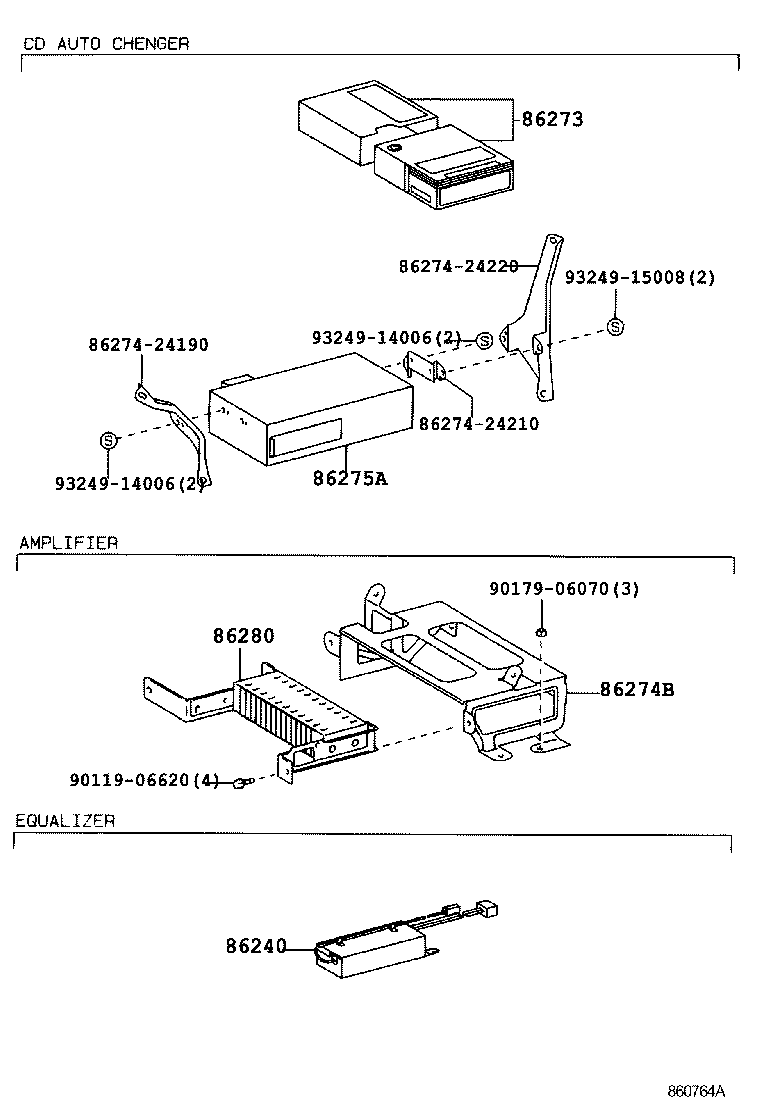

Figure 860675 860675 1991-04 → — Figure 860676 860676 1991-04 → — Figure 860070 860070 1991-04 → 1998-08 Figure 860764A 860764A 1998-08 → — Figure 860071 860071 1991-04 → 1998-08

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011N Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86240 Equalizer Assy,Stereo Component
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86274B Bracket, Disc Player
86274C Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86280E Amplifier Set, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
