Factory parts data · Europe

Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

860073 1991-04 → —

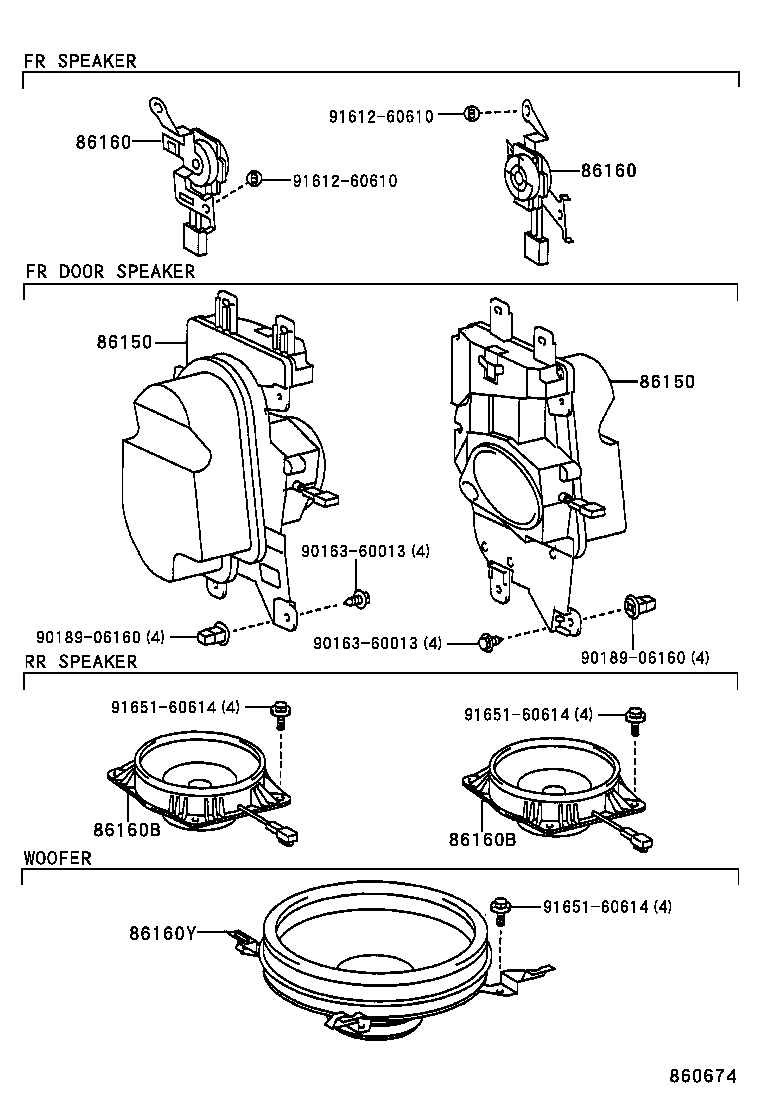

860674 1991-04 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160Y	Speaker Assy, Rear NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
