Toyota Lexus SC300/400

1991-04 → 2000-07 · chassis UZZ30,JZZ31 · catalogue 321440 · United States

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

17 part groups · 3 illustrations

Illustrations

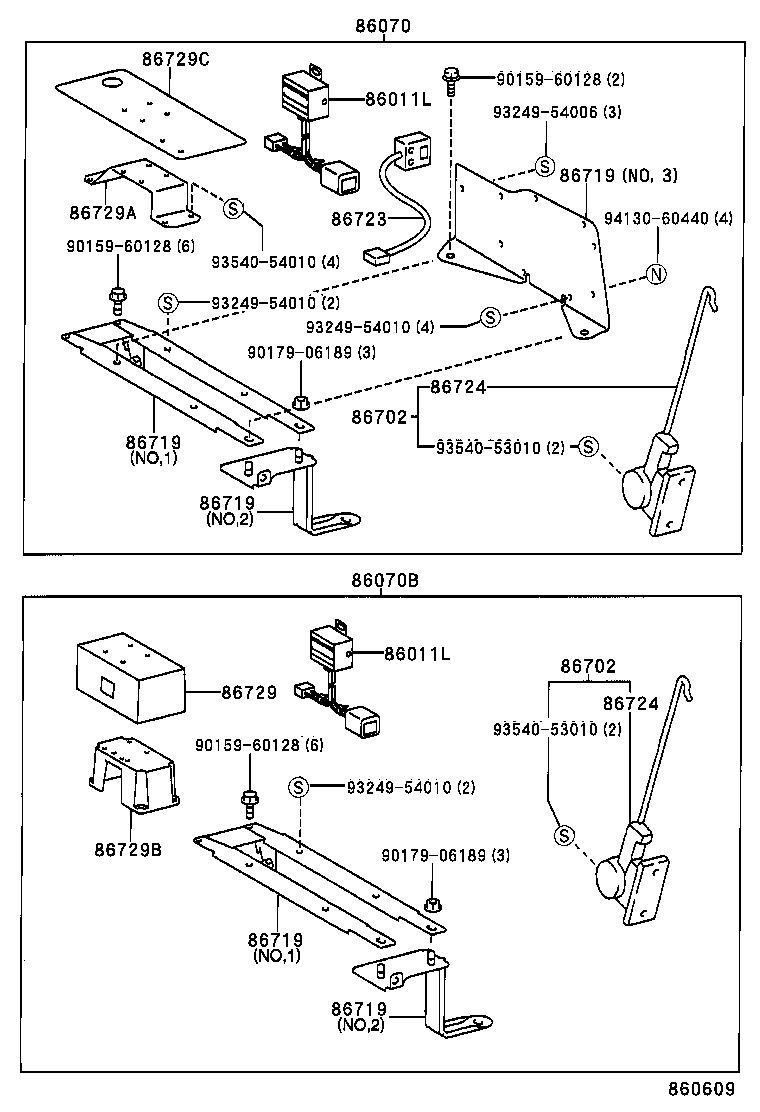

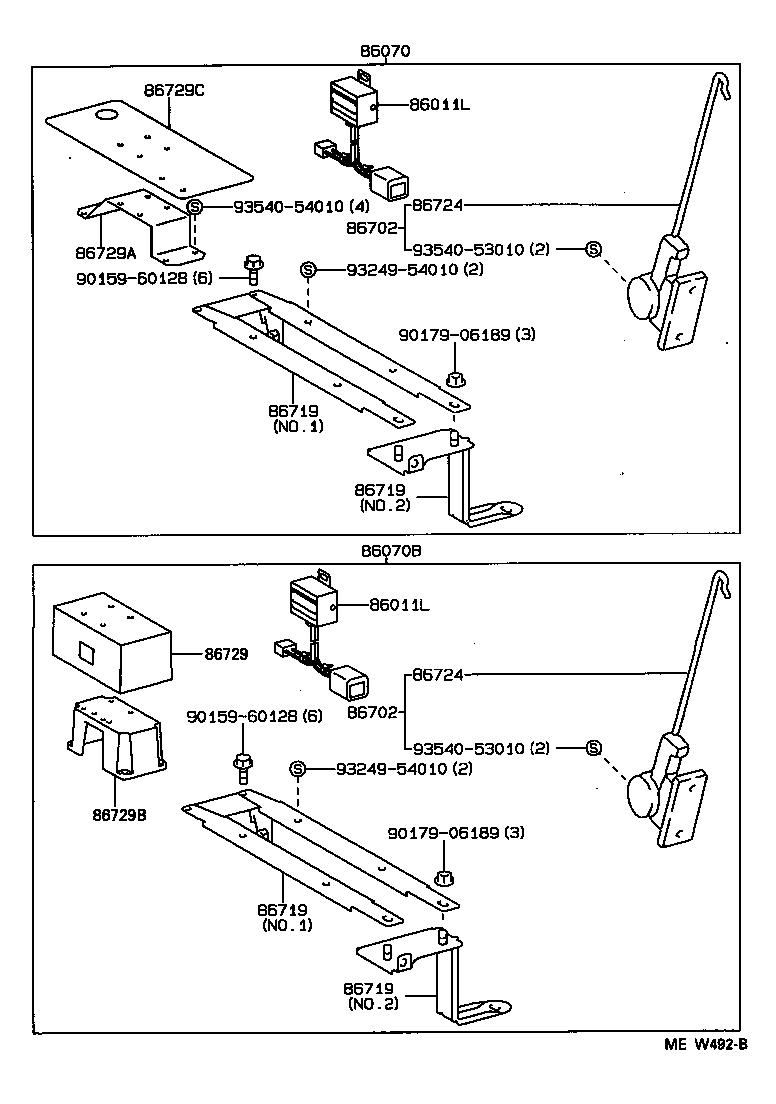

Figure 860183A 860183A 1991-04 → — Figure MEW492B MEW492B 1994-01 → 1997-09 Figure 860609 860609 1997-09 → —

Part groups

PNCDescription
86011L Filter, Noise
86070 Mobilephone & Accessory Assy
86070B Mobilephone & Accessory Assy
86162A Relay, Speaker
86702 Bracket Set, Telephone
86719 Bracket, Telephone
86723 Wire, Mobilephone
86724 Guide, Curl Cord
86729 Bracket, Mobilephone
86729A Bracket, Mobilephone, NO.1
86729B Bracket, Mobilephone, NO.2
86729C Bracket, Mobilephone, NO.3
86760 Antenna Assy, Telephone
86761 Rod, Telephone Antenna
86762 Base, Telephone Antenna
86763 Base, Telephone Antenna, N0.2
86765 Code, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
