Heating & Air Conditioning - Cooler Unit

20 part groups · 3 illustrations

Illustrations

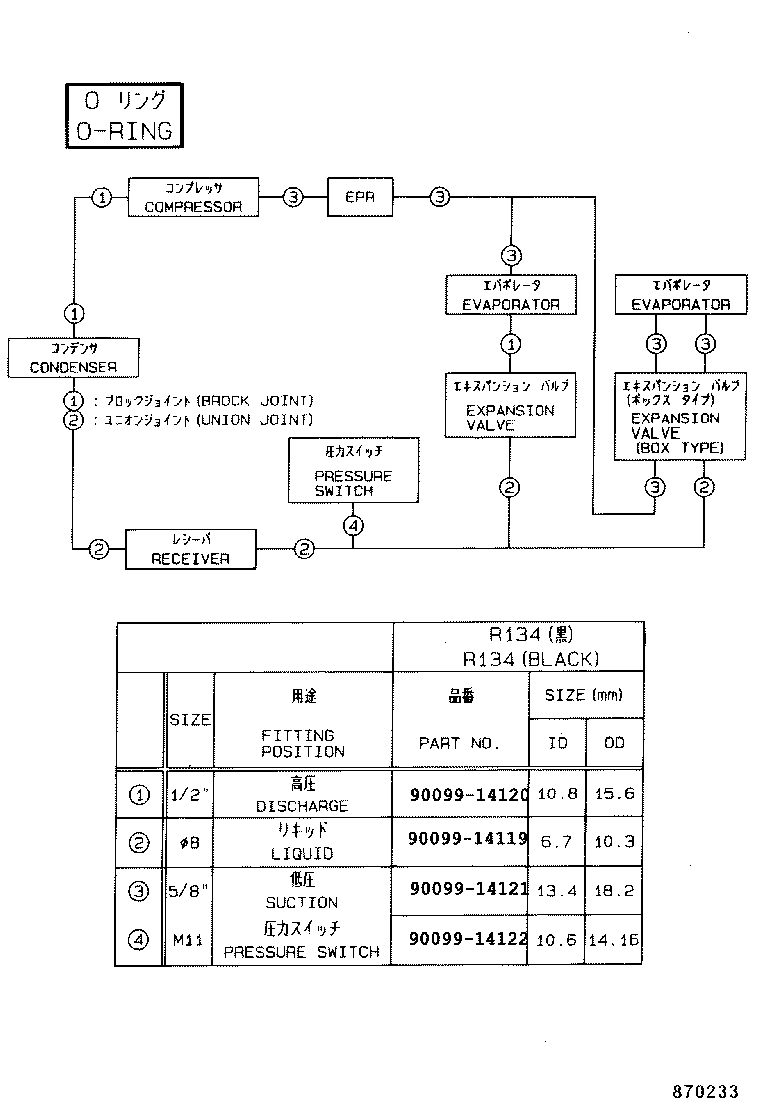

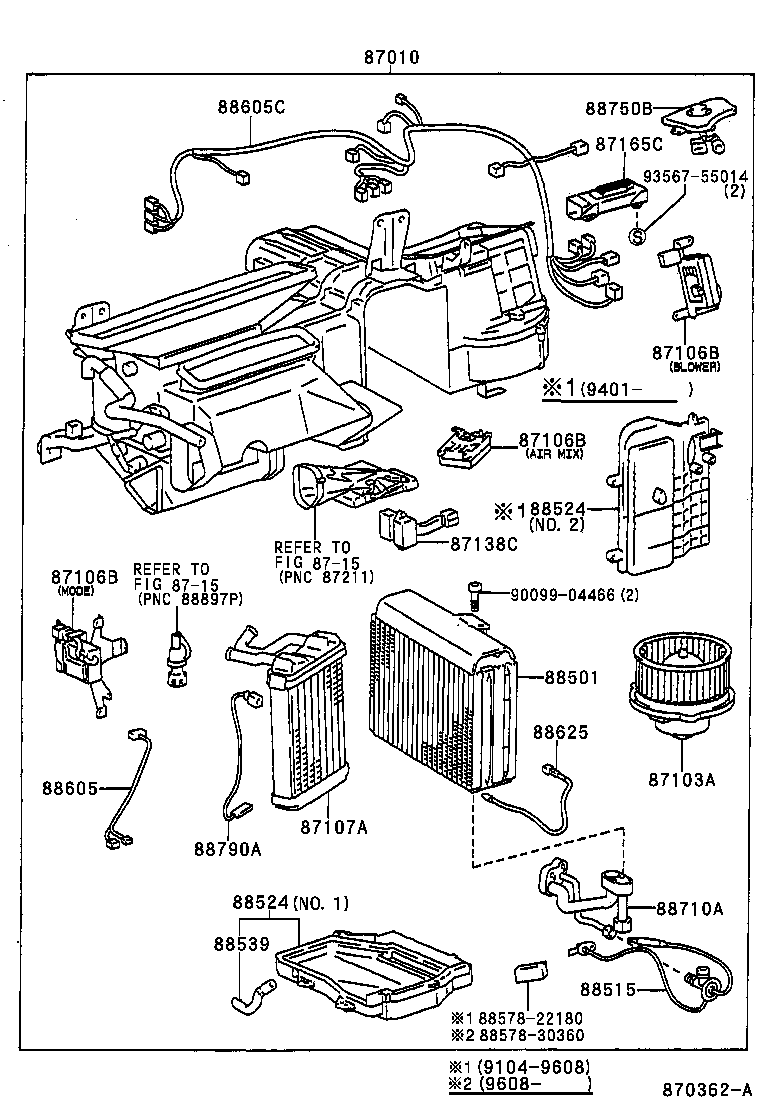

Figure 870193A 870193A 1991-04 → — Figure 870362A 870362A 1991-04 → — Figure 870233 870233 1997-09 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87103A Motor Sub-assy, Cooling Unit, W/Fan
87106B Servo Sub-assy, Damper(FOR COOLING UNIT)
87107A Unit Sub-assy, Heater Radiator
87138C Resistor, Blower
87165C Control, Blower Motor
87615A Retainer, Insulator
88326A Plate, Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88508 Filter Sub-assy, Clean Air
88515 Valve, Cooler Expansion
88524 Panel, Cooling Box, Bottom
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88710A Tube Assy, Air Conditioner
88750B Transistor Assy, Blower Resistor
88790A Sensor, Thermo
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
