Heating & Air Conditioning - Cooler Piping

19 part groups · 7 illustrations

Illustrations

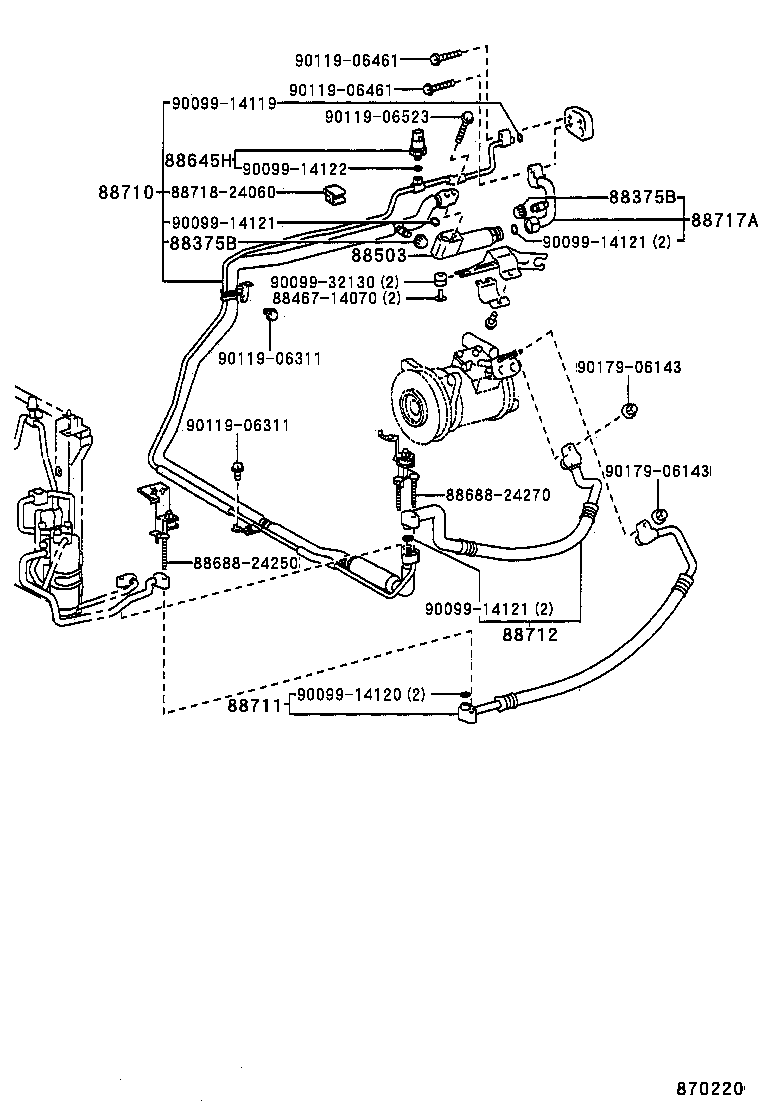

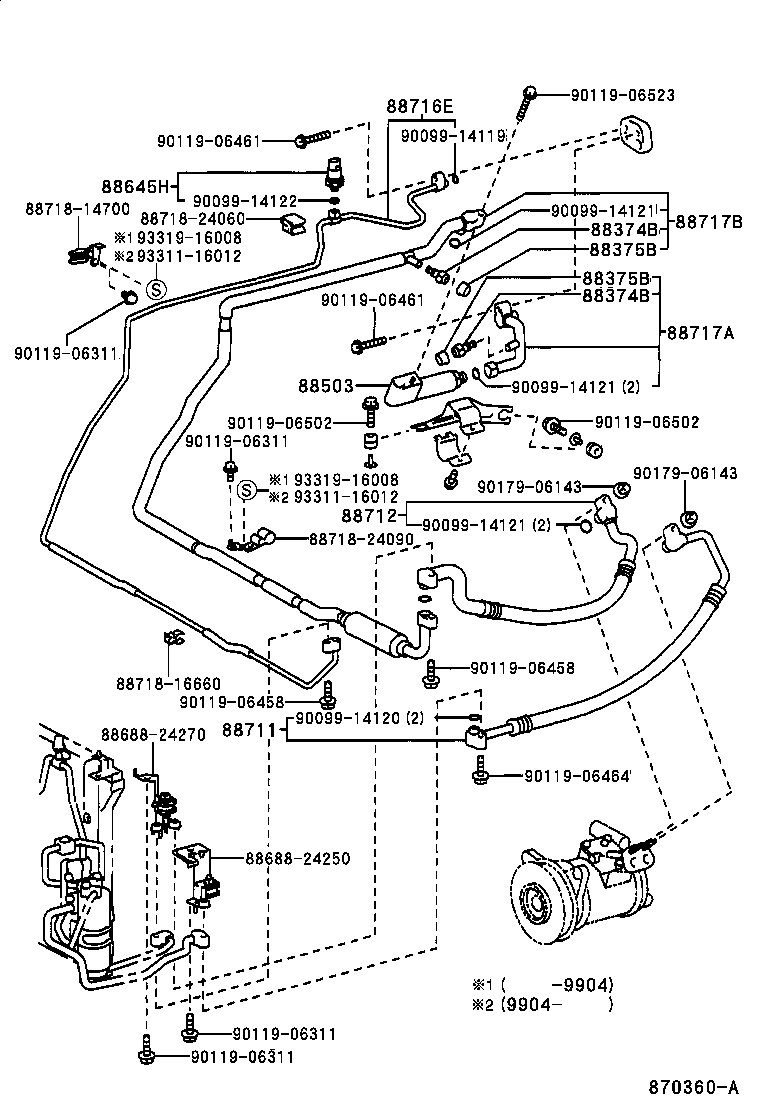

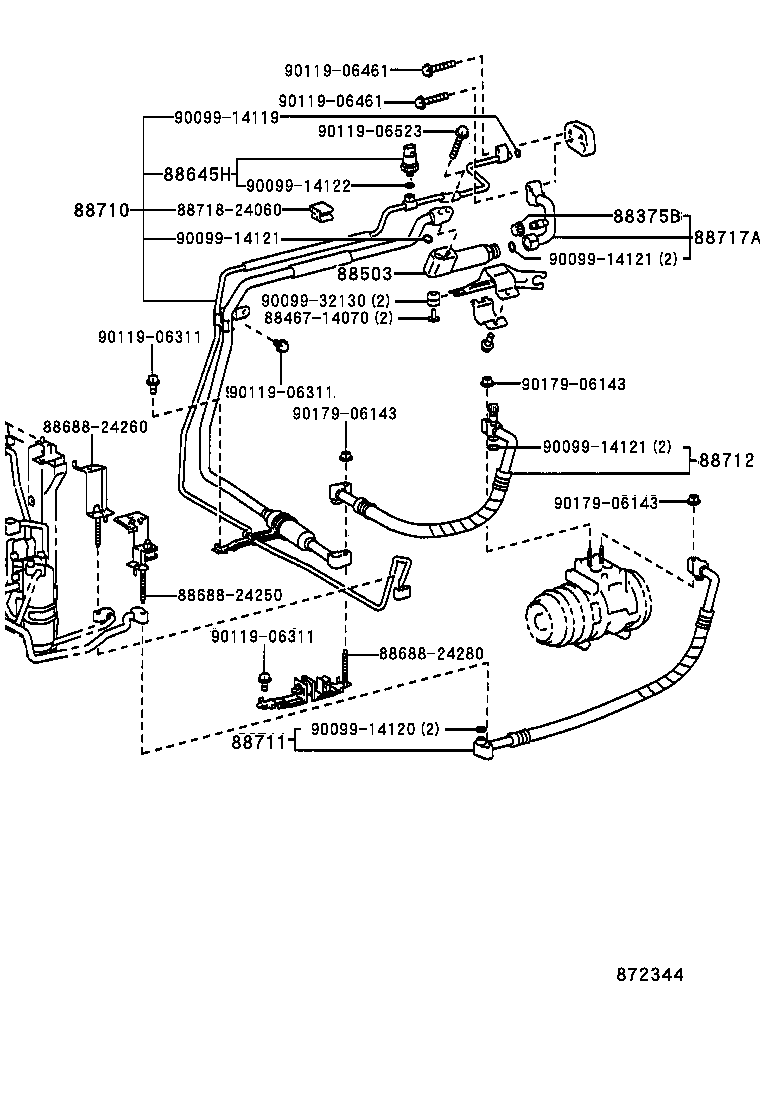

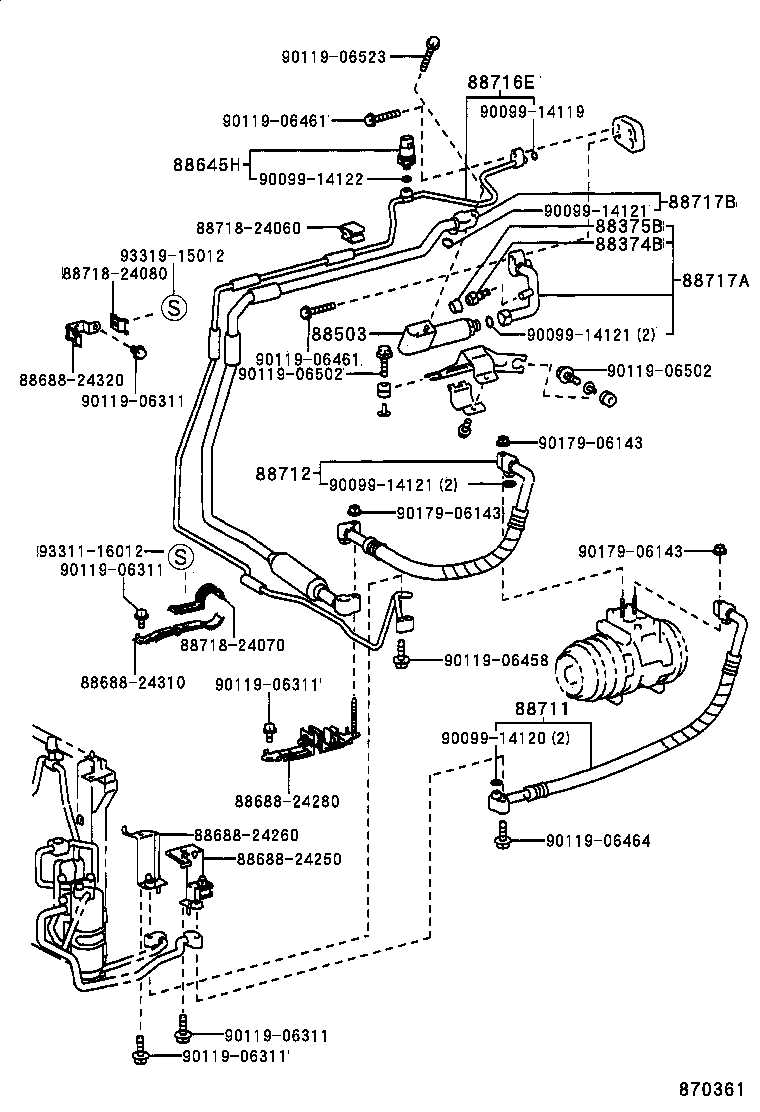

Figure 872339 872339 1991-04 → — Figure 872343 872343 1991-04 → 1993-08 Figure 870220 870220 1993-08 → 1996-08 Figure 872344 872344 1993-08 → 1996-08 Figure 870360A 870360A 1996-08 → — Figure 870361 870361 1996-08 → — Figure 870233 870233 1991-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88503 Regulator Assy, Pressure
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
