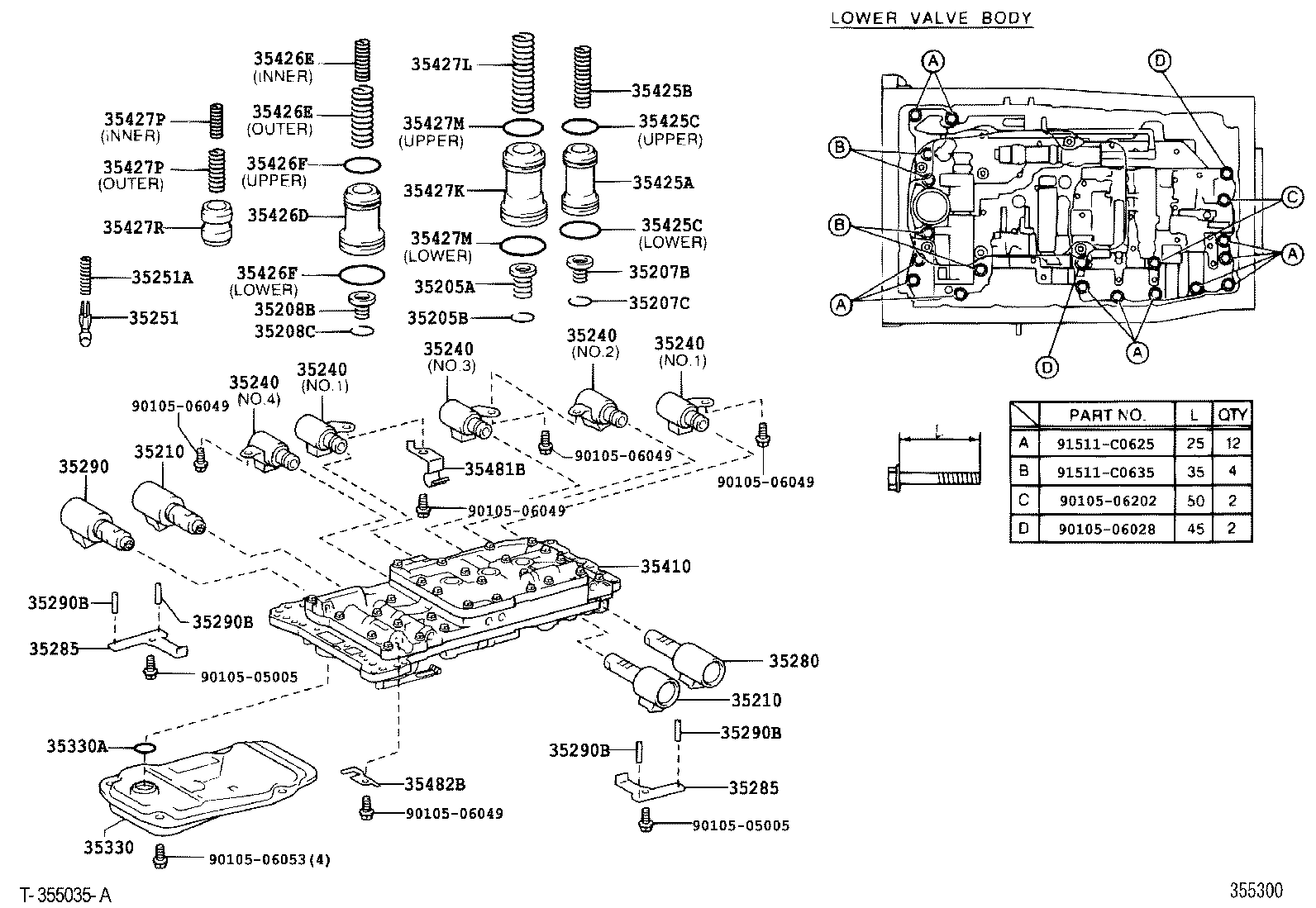

Exploded illustration 355300 35427P — SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) (2 parts) 35427P — SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) (2 parts) 35427R — PISTON B-1 ACCUMULATOR (1 parts) 35251A — SPRING, COMPRESSION (FOR CHECK BALL BODY) (2 parts) 35251 — BODY, CHECK BALL (2 parts) 35426F — RING, O (FOR C-3 ACCUMULATOR PISTON) (2 parts) 35426F — RING, O (FOR C-3 ACCUMULATOR PISTON) (2 parts) 35426E — SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) (2 parts) 35426E — SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) (2 parts) 35427L — SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) (1 parts) 35205A — SPRING SUB-ASSY, B-3 ACCUMULATOR (1 parts) 35427M — RING, O (FOR B-3 ACCUMULATOR PISTON) (2 parts) 35427M — RING, O (FOR B-3 ACCUMULATOR PISTON) (2 parts) 35427K — PISTON, B-3 ACCUMULATOR (1 parts) 35425B — SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) (3 parts) 35425C — RING, O (FOR C-2 ACCUMULATOR PISTON) (4 parts) 35425C — RING, O (FOR C-2 ACCUMULATOR PISTON) (4 parts) 35425A — PISTON, C-2 ACCUMULATOR (2 parts) 35207B — SPRING SUB-ASSY, C-2 ACCUMULATOR (1 parts) 35207C — RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) (1 parts) 35205B — RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING) (1 parts) 35208B — SPRING SUB-ASSY, C-3 ACCUMULATOR (1 parts) 35208C — RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING) (1 parts) 35240 — SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY (6 parts) 35240 — SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY (6 parts) 35240 — SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY (6 parts) 35240 — SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY (6 parts) 35240 — SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY (6 parts) 35210 — SOLENOID ASSY, CLUTCH CONTROL, NO.1 (1 parts) 35290 — SOLENOID ASSY, LINE PRESSURE CONTROL (3 parts) 35290B — PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) (1 parts) 35290B — PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) (1 parts) 35290B — PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) (1 parts) 35290B — PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) (1 parts) 35481B — CLAMP, VALVE BODY WIRE HARNESS (1 parts) 35410 — BODY ASSY, TRANSMISSION VALVE (2 parts) 35482B — CLAMP, TEMPERATURE SENSOR (1 parts) 35285 — PLATE, SOLENOID LOCK (2 parts) 35330A — RING, O (FOR OIL STRAINER) (1 parts) 35330 — STRAINER ASSY, VALVE BODY OIL (2 parts) 35285 — PLATE, SOLENOID LOCK (2 parts) 35210 — SOLENOID ASSY, CLUTCH CONTROL, NO.1 (1 parts) 35280 — SOLENOID ASSY, LOCK UP CONTROL (3 parts) 9010506049 — not listed in this catalogue 9010506049 — not listed in this catalogue 9010506049 — not listed in this catalogue 9010506049 — not listed in this catalogue 9010506049 — not listed in this catalogue 9010505005 — not listed in this catalogue 9010505005 — not listed in this catalogue 9010506053 — not listed in this catalogue 35426D — PISTON, C-3 ACCUMULATOR (1 parts) 91511C0625 — not listed in this catalogue 91511C0635 — not listed in this catalogue 9010506202 — not listed in this catalogue 9010506028 — not listed in this catalogue
355300 · 44 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
35205A — Spring Sub-assy, B-3 Accumulator
35205-50010 Spring Sub-assy, B-3 Accumulator
2005-08 → —
UZZ40 —
35205B — Ring, Hole Snap (FOR B-3 ACCUMULATOR SPRING)
90521-22004 Ring, Hole Snap (FOR B-3 ACCUMULATOR SPRING)
2005-08 → —
UZZ40 —
35207B — Spring Sub-assy, C-2 Accumulator
35207-22010 Spring Sub-assy, C-2 Accumulator
2005-08 → —
UZZ40 —
35207C — Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
90521-22004 Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
2005-08 → —
UZZ40 —
35208B — Spring Sub-assy, C-3 Accumulator
35208-22010 Spring Sub-assy, C-3 Accumulator
2005-08 → —
UZZ40 —
35208C — Ring, Hole Snap (FOR C-3 ACCUMULATOR SPRING)
90521-22004 Ring, Hole Snap (FOR C-3 ACCUMULATOR SPRING)
2005-08 → —
UZZ40 —
35210 — Solenoid Assy, Clutch Control, NO.1
35210-50010 Solenoid Assy, Clutch Control, NO.1
2005-08 → —
UZZ40 —
35240 — Solenoid Assy, Automatic Transmission 3Way
35240-50010 note Solenoid Assy, Automatic Transmission 3Way
2001-01 → 2005-08 ended
UZZ40 —
35240-50020 note Solenoid Assy, Automatic Transmission 3Way
2001-01 → 2005-08 ended
UZZ40 —
35240-50030 note Solenoid Assy, Automatic Transmission 3Way
2005-08 → —
UZZ40 —
35240-50040 note Solenoid Assy, Automatic Transmission 3Way
2005-08 → —
UZZ40 —
35240-50050 note Solenoid Assy, Automatic Transmission 3Way
2005-08 → —
UZZ40 —
35240-50060 note Solenoid Assy, Automatic Transmission 3Way
2005-08 → —
UZZ40 —
35251 — Body, Check Ball
35251-30020 Body, Check Ball
2001-01 → 2005-08 ended
UZZ40 —
35251-30020 Body, Check Ball
2005-08 → —
UZZ40 —
35251A — Spring, Compression (FOR CHECK BALL BODY)
90501-03005 Spring, Compression (FOR CHECK BALL BODY)
2001-01 → 2005-08 ended
UZZ40 —
90501-03005 Spring, Compression (FOR CHECK BALL BODY)
2005-08 → —
UZZ40 —
35280 — Solenoid Assy, Lock UP Control
35280-30040 Solenoid Assy, Lock UP Control
2001-01 → 2005-08 ended
UZZ40 —
35280-30050 Solenoid Assy, Lock UP Control
2006-11 → —
UZZ40 —
35280-50020 Solenoid Assy, Lock UP Control
2005-08 → 2006-11 ended
UZZ40 —
35285 — Plate, Solenoid Lock
35285-30060 Plate, Solenoid Lock
2001-01 → 2005-08 ended
UZZ40 —
35285-50020 Plate, Solenoid Lock
2005-08 → —
UZZ40 —
35290 — Solenoid Assy, Line Pressure Control
35290-30040 Solenoid Assy, Line Pressure Control
2001-01 → 2005-08 ended
UZZ40 —
35290-34010 Solenoid Assy, Line Pressure Control
2006-11 → —
UZZ40 —
35290-50010 Solenoid Assy, Line Pressure Control
2005-08 → 2006-11 ended
UZZ40 —
35290B — Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID)
90250-03045 Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID)
2005-08 → —
UZZ40 —
35330 — Strainer Assy, Valve Body Oil
35330-30070 Strainer Assy, Valve Body Oil
2001-01 → 2005-08 ended
UZZ40 —
35330-50020 Strainer Assy, Valve Body Oil
2005-08 → —
UZZ40 —
35330A — Ring, O (FOR OIL STRAINER)
90301-31014 Ring, O (FOR OIL STRAINER)
2005-08 → —
UZZ40 —
35410 — Body Assy, Transmission Valve
35410-50110 Body Assy, Transmission Valve
2001-01 → 2005-08 ended
UZZ40 —
35410-50120 Body Assy, Transmission Valve
2005-08 → —
UZZ40 —
35425A — Piston, C-2 Accumulator
35425-40010 Piston, C-2 Accumulator
2001-01 → 2005-08 ended
UZZ40 —
35425-50020 Piston, C-2 Accumulator
2005-08 → —
UZZ40 —
35425B — Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
90501-23152 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2001-01 → 2005-08 ended
UZZ40 —
90501-28035 note Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2001-01 → 2005-08 ended
UZZ40 —
90501-22065 Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
35425C — Ring, O (FOR C-2 ACCUMULATOR PISTON)
90903-01001 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2001-01 → 2005-08 ended
UZZ40 —
90903-01003 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2001-01 → 2005-08 ended
UZZ40 —
90301-20008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
90301-28008 note Ring, O (FOR C-2 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
35426D — Piston, C-3 Accumulator
35426-50020 Piston, C-3 Accumulator
2005-08 → —
UZZ40 —
35426E — Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
90501-24038 note Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
90501-25062 note Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
35426F — Ring, O (FOR C-3 ACCUMULATOR PISTON)
90301-26011 note Ring, O (FOR C-3 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
90301-34011 note Ring, O (FOR C-3 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
35427K — Piston, B-3 Accumulator
35427-50020 Piston, B-3 Accumulator
2005-08 → —
UZZ40 —
35427L — Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
90501-26098 Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
35427M — Ring, O (FOR B-3 ACCUMULATOR PISTON)
90301-23010 note Ring, O (FOR B-3 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
90301-34011 note Ring, O (FOR B-3 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
35427P — Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON)
90501-16181 note Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
90501-24039 note Spring, Compression, NO.1(FOR B-1 ACCUMULATOR PISTON)
2005-08 → —
UZZ40 —
35427R — Piston B-1 Accumulator
35424-60030 Piston B-1 Accumulator
2005-08 → —
UZZ40 —
35481B — Clamp, Valve Body Wire Harness
35481-50040 Clamp, Valve Body Wire Harness
2005-08 → —
UZZ40 —
35482B — Clamp, Temperature Sensor
35482-60040 Clamp, Temperature Sensor
2005-08 → —
UZZ40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
