Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

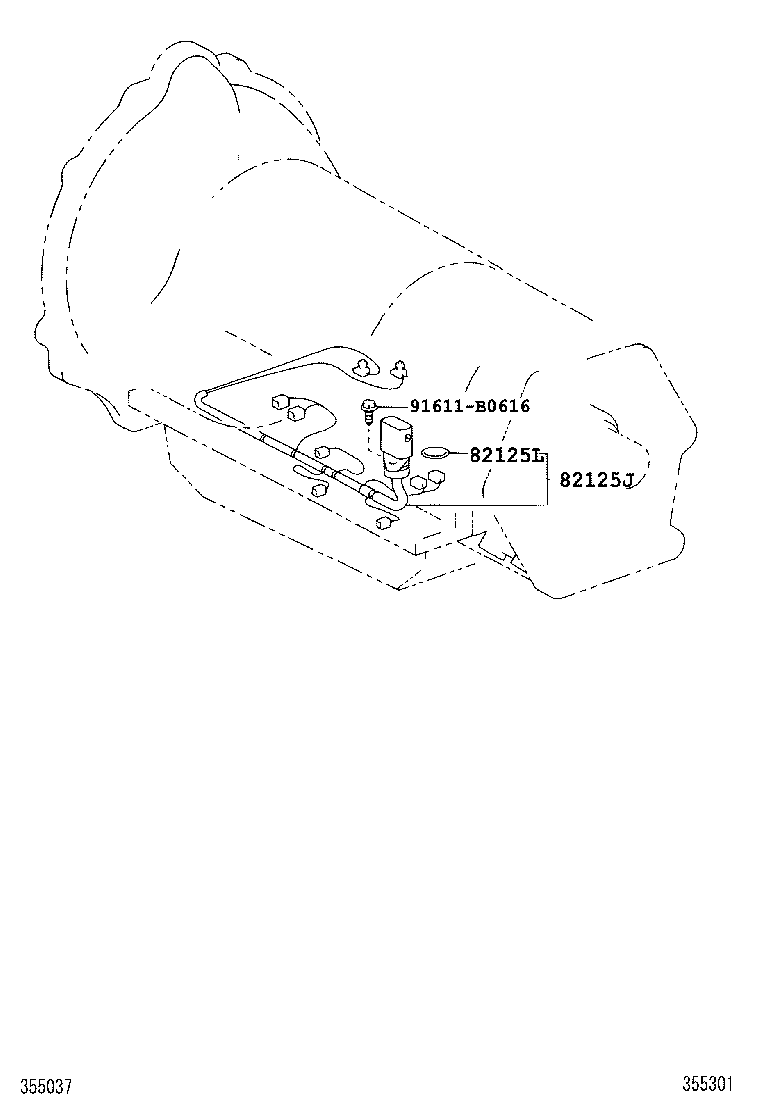

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125J — Wire, Transmission | ||||
| 82125-50040 |
Wire, Transmission
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82125-50070 |
Wire, Transmission
2005-08 → —
|
UZZ40 | — | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24018 |
Ring, O(FOR TRANSMISSION WIRE)
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2005-08 → —
|
UZZ40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
