Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

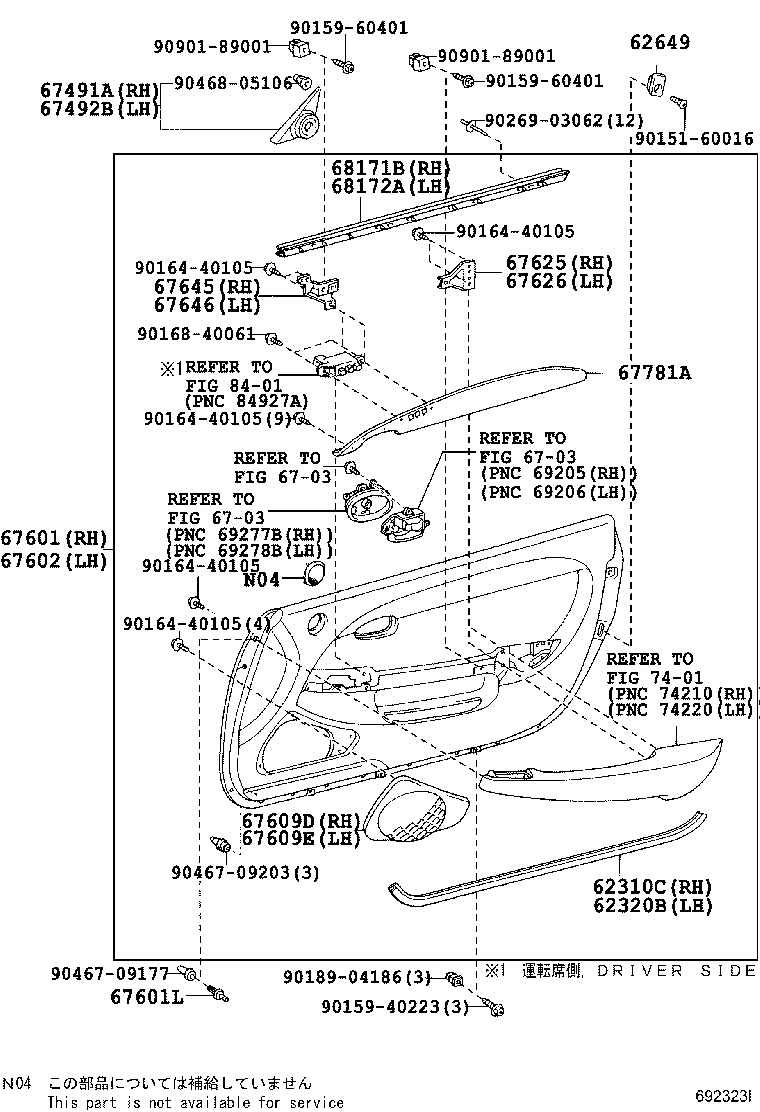

Exploded illustration 672323I 9015960401 — not listed in this catalogue 9090189001 — not listed in this catalogue 9046805106 — not listed in this catalogue 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (4 parts) 67492B — GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH (4 parts) 9016440105 — not listed in this catalogue 67645 — BRACKET, FRONT DOOR ARMREST SET, RH (2 parts) 67646 — BRACKET, FRONT DOOR ARMREST SET, LH (2 parts) 9016840061 — not listed in this catalogue 9016440105 — not listed in this catalogue 9016440105 — not listed in this catalogue 9016440105 — not listed in this catalogue 67601 — BOARD SUB-ASSY, FRONT DOOR TRIM, RH (27 parts) 9046709203 — not listed in this catalogue 67609D — GRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH (7 parts) 67609E — GRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH (7 parts) 9046709177 — not listed in this catalogue 67601L — CLIP(FOR FRONT DOOR TRIM BOARD) (4 parts) 9018904186 — not listed in this catalogue 9015940223 — not listed in this catalogue 9015160016 — not listed in this catalogue 67602 — BOARD SUB-ASSY, FRONT DOOR TRIM, LH (27 parts) 67626 — BRACKET, FRONT DOOR TRIM, LH (2 parts) 9016440105 — not listed in this catalogue 67781A — ORNAMENT, FRONT DOOR TRIM (20 parts) 67625 — BRACKET, FRONT DOOR TRIM, RH (2 parts) 68172A — WEATHERSTRIP, FRONT DOOR GLASS, INNER LH (4 parts) 68171B — WEATHERSTRIP, FRONT DOOR GLASS, INNER RH (4 parts) 62310C — WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH (9 parts) 62320B — WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH (9 parts) 62649 — BRACKET, SIDE TRIM (2 parts) 9090189001 — not listed in this catalogue 9015960401 — not listed in this catalogue 9026903062 — not listed in this catalogue 7401 — not listed in this catalogue 6703 — not listed in this catalogue 6703 — not listed in this catalogue 6703 — not listed in this catalogue 8401 — not listed in this catalogue
672323I · 17 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
136 parts on this figure
Part number Description Fitment Price
62310C — Weatherstrip Assy, Front Door Opening Trim, RH
62310-24010-A0 note Weatherstrip Assy, Front Door Opening Trim, RH
2001-01 → 2005-08 ended
UZZ40 —
62310-24010-C0 note Weatherstrip Assy, Front Door Opening Trim, RH
2001-01 → 2005-08 ended
UZZ40 —
62310-24010-D0 note Weatherstrip Assy, Front Door Opening Trim, RH
2004-08 → 2004-09 ended
UZZ40 —
62310-24020-D0 note Weatherstrip Assy, Front Door Opening Trim, RH
2001-11 → 2001-12 ended
UZZ40 —
62310-24010-A0 note Weatherstrip Assy, Front Door Opening Trim, RH
2005-08 → 2007-08 ended
UZZ40 —
62310-24010-C0 note Weatherstrip Assy, Front Door Opening Trim, RH
2005-08 → 2007-08 ended
UZZ40 —
62310-24010-D0 note Weatherstrip Assy, Front Door Opening Trim, RH
2006-08 → 2006-11 ended
UZZ40 —
62310-24010-E0 note Weatherstrip Assy, Front Door Opening Trim, RH
2005-08 → 2007-08 ended
UZZ40 —
62310-24040 Weatherstrip Assy, Front Door Opening Trim, RH
2007-08 → —
UZZ40 —
62320B — Weatherstrip Assy, Front Door Opening Trim, LH
62320-24010-A0 note Weatherstrip Assy, Front Door Opening Trim, LH
2001-01 → 2005-08 ended
UZZ40 —
62320-24010-C0 note Weatherstrip Assy, Front Door Opening Trim, LH
2001-01 → 2005-08 ended
UZZ40 —
62320-24010-D0 note Weatherstrip Assy, Front Door Opening Trim, LH
2004-08 → 2004-09 ended
UZZ40 —
62320-24020-D0 note Weatherstrip Assy, Front Door Opening Trim, LH
2001-11 → 2001-12 ended
UZZ40 —
62320-24010-A0 note Weatherstrip Assy, Front Door Opening Trim, LH
2005-08 → 2007-08 ended
UZZ40 —
62320-24010-C0 note Weatherstrip Assy, Front Door Opening Trim, LH
2005-08 → 2007-08 ended
UZZ40 —
62320-24010-D0 note Weatherstrip Assy, Front Door Opening Trim, LH
2006-08 → 2006-11 ended
UZZ40 —
62320-24010-E0 note Weatherstrip Assy, Front Door Opening Trim, LH
2005-08 → 2007-08 ended
UZZ40 —
62320-24030 Weatherstrip Assy, Front Door Opening Trim, LH
2007-08 → —
UZZ40 —
62649 — Bracket, Side Trim
67649-24010 Bracket, Side Trim
2001-01 → 2005-08 ended
UZZ40 —
67649-24010 Bracket, Side Trim
2005-08 → —
UZZ40 —
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-24040-C0 note Garnish, Front Door Lower Frame Bracket, RH
2001-01 → 2005-08 ended
UZZ40 —
67491-24040-C0 note Garnish, Front Door Lower Frame Bracket, RH
2006-08 → 2006-11 ended
UZZ40 —
67491-24040-C0 note Garnish, Front Door Lower Frame Bracket, RH
2005-08 → —
UZZ40 —
67491-24040-E0 note Garnish, Front Door Lower Frame Bracket, RH
2005-08 → —
UZZ40 —
67492B — Garnish, Front Door Window Upper Bracket, LH
67492-24040-C0 note Garnish, Front Door Window Upper Bracket, LH
2001-01 → 2005-08 ended
UZZ40 —
67492-24040-C0 note Garnish, Front Door Window Upper Bracket, LH
2006-08 → 2006-11 ended
UZZ40 —
67492-24040-C0 note Garnish, Front Door Window Upper Bracket, LH
2005-08 → —
UZZ40 —
67492-24040-E0 note Garnish, Front Door Window Upper Bracket, LH
2005-08 → —
UZZ40 —
67601 — Board Sub-assy, Front Door Trim, RH
67610-24470-A0 note Board Sub-assy, Front Door Trim, RH
2001-01 → 2005-08 ended
UZZ40 —
67610-24470-C0 note Board Sub-assy, Front Door Trim, RH
2001-01 → 2005-08 ended
UZZ40 —
67610-24470-C1 note Board Sub-assy, Front Door Trim, RH
2001-01 → 2005-08 ended
UZZ40 —
67610-24470-C2 note Board Sub-assy, Front Door Trim, RH
2004-08 → 2004-09 ended
UZZ40 —
67610-24480-A0 note Board Sub-assy, Front Door Trim, RH
2001-05 → 2001-11 ended
UZZ40 —
67610-24480-C0 note Board Sub-assy, Front Door Trim, RH
2001-05 → 2001-11 ended
UZZ40 —
67610-24480-C1 note Board Sub-assy, Front Door Trim, RH
2001-05 → 2001-11 ended
UZZ40 —
67610-24510-C0 note Board Sub-assy, Front Door Trim, RH
2001-11 → 2001-12 ended
UZZ40 —
67610-24540-A0 note Board Sub-assy, Front Door Trim, RH
2005-08 → 2007-08 ended
UZZ40 —
67610-24540-C0 note Board Sub-assy, Front Door Trim, RH
2005-08 → 2007-08 ended
UZZ40 —
67610-24540-D0 note Board Sub-assy, Front Door Trim, RH
2006-08 → 2006-11 ended
UZZ40 —
67610-24540-E2 note Board Sub-assy, Front Door Trim, RH
2005-08 → 2007-08 ended
UZZ40 —
67610-24540-F0 note Board Sub-assy, Front Door Trim, RH
2005-08 → 2007-08 ended
UZZ40 —
67610-24541-A1 note Board Sub-assy, Front Door Trim, RH
2009-04 → —
UZZ40 —
67610-24541-C1 note Board Sub-assy, Front Door Trim, RH
2009-04 → —
UZZ40 —
67610-24541-E1 note Board Sub-assy, Front Door Trim, RH
2009-04 → —
UZZ40 —
67610-24541-F0 note Board Sub-assy, Front Door Trim, RH
2009-04 → —
UZZ40 —
67610-24550-A0 note Board Sub-assy, Front Door Trim, RH
2007-08 → 2008-08 ended
UZZ40 —
67610-24550-A4 note Board Sub-assy, Front Door Trim, RH
2008-08 → 2009-03 ended
UZZ40 —
67610-24550-C0 note Board Sub-assy, Front Door Trim, RH
2007-08 → 2008-08 ended
UZZ40 —
67610-24550-C5 note Board Sub-assy, Front Door Trim, RH
2008-08 → 2009-03 ended
UZZ40 —
67610-24550-E2 note Board Sub-assy, Front Door Trim, RH
2007-08 → 2008-08 ended
UZZ40 —
67610-24550-E6 note Board Sub-assy, Front Door Trim, RH
2008-08 → 2009-03 ended
UZZ40 —
67610-24550-F0 note Board Sub-assy, Front Door Trim, RH
2007-08 → 2008-08 ended
UZZ40 —
67610-24550-F1 note Board Sub-assy, Front Door Trim, RH
2008-08 → 2009-03 ended
UZZ40 —
67610-24560-C0 note Board Sub-assy, Front Door Trim, RH
2007-08 → 2007-11 ended
UZZ40 —
67610-24570-C0 note Board Sub-assy, Front Door Trim, RH
2008-08 → 2008-09 ended
UZZ40 —
67601L — Clip(FOR FRONT DOOR TRIM BOARD)
90467-07066-22 note Clip(FOR FRONT DOOR TRIM BOARD)
2001-01 → 2005-08 ended
UZZ40 —
90467-07066-A4 note Clip(FOR FRONT DOOR TRIM BOARD)
2001-01 → 2005-08 ended
UZZ40 —
90467-07066-22 note Clip(FOR FRONT DOOR TRIM BOARD)
2005-08 → —
UZZ40 —
90467-07066-L1 note Clip(FOR FRONT DOOR TRIM BOARD)
2005-08 → —
UZZ40 —
67602 — Board Sub-assy, Front Door Trim, LH
67620-24460-A0 note Board Sub-assy, Front Door Trim, LH
2001-05 → 2001-11 ended
UZZ40 —
67620-24460-C0 note Board Sub-assy, Front Door Trim, LH
2001-05 → 2001-11 ended
UZZ40 —
67620-24460-C1 note Board Sub-assy, Front Door Trim, LH
2001-05 → 2001-11 ended
UZZ40 —
67620-24470-A0 note Board Sub-assy, Front Door Trim, LH
2001-01 → 2005-08 ended
UZZ40 —
67620-24470-C0 note Board Sub-assy, Front Door Trim, LH
2001-01 → 2005-08 ended
UZZ40 —
67620-24470-C1 note Board Sub-assy, Front Door Trim, LH
2001-01 → 2005-08 ended
UZZ40 —
67620-24470-C2 note Board Sub-assy, Front Door Trim, LH
2004-08 → 2004-09 ended
UZZ40 —
67620-24500-C0 note Board Sub-assy, Front Door Trim, LH
2001-11 → 2001-12 ended
UZZ40 —
67620-24530-A0 note Board Sub-assy, Front Door Trim, LH
2005-08 → 2007-08 ended
UZZ40 —
67620-24530-C0 note Board Sub-assy, Front Door Trim, LH
2005-08 → 2007-08 ended
UZZ40 —
67620-24530-D0 note Board Sub-assy, Front Door Trim, LH
2006-08 → 2006-11 ended
UZZ40 —
67620-24530-E2 note Board Sub-assy, Front Door Trim, LH
2005-08 → 2007-08 ended
UZZ40 —
67620-24530-F0 note Board Sub-assy, Front Door Trim, LH
2005-08 → 2007-08 ended
UZZ40 —
67620-24531-A1 note Board Sub-assy, Front Door Trim, LH
2009-04 → —
UZZ40 —
67620-24531-C1 note Board Sub-assy, Front Door Trim, LH
2009-04 → —
UZZ40 —
67620-24531-E1 note Board Sub-assy, Front Door Trim, LH
2009-04 → —
UZZ40 —
67620-24531-F0 note Board Sub-assy, Front Door Trim, LH
2009-04 → —
UZZ40 —
67620-24540-A0 note Board Sub-assy, Front Door Trim, LH
2007-08 → 2008-08 ended
UZZ40 —
67620-24540-A4 note Board Sub-assy, Front Door Trim, LH
2008-08 → 2009-03 ended
UZZ40 —
67620-24540-C0 note Board Sub-assy, Front Door Trim, LH
2007-08 → 2008-08 ended
UZZ40 —
67620-24540-C5 note Board Sub-assy, Front Door Trim, LH
2008-08 → 2009-03 ended
UZZ40 —
67620-24540-E2 note Board Sub-assy, Front Door Trim, LH
2007-08 → 2008-08 ended
UZZ40 —
67620-24540-E6 note Board Sub-assy, Front Door Trim, LH
2008-08 → 2009-03 ended
UZZ40 —
67620-24540-F0 note Board Sub-assy, Front Door Trim, LH
2007-08 → 2008-08 ended
UZZ40 —
67620-24540-F1 note Board Sub-assy, Front Door Trim, LH
2008-08 → 2009-03 ended
UZZ40 —
67620-24550-C0 note Board Sub-assy, Front Door Trim, LH
2007-08 → 2007-11 ended
UZZ40 —
67620-24560-C0 note Board Sub-assy, Front Door Trim, LH
2008-08 → 2008-09 ended
UZZ40 —
67609D — Grille Sub-assy, Front Door Speaker, RH
67609-24020-A0 note Grille Sub-assy, Front Door Speaker, RH
2001-01 → 2005-08 ended
UZZ40 —
67609-24020-C0 note Grille Sub-assy, Front Door Speaker, RH
2001-01 → 2005-08 ended
UZZ40 —
67609-24020-D1 note Grille Sub-assy, Front Door Speaker, RH
2004-08 → 2004-09 ended
UZZ40 —
67609-24020-A0 note Grille Sub-assy, Front Door Speaker, RH
2005-08 → —
UZZ40 —
67609-24020-C0 note Grille Sub-assy, Front Door Speaker, RH
2005-08 → —
UZZ40 —
67609-24020-D1 note Grille Sub-assy, Front Door Speaker, RH
2006-08 → 2006-11 ended
UZZ40 —
67609-24020-E0 note Grille Sub-assy, Front Door Speaker, RH
2005-08 → —
UZZ40 —
67609E — Grille Sub-assy, Front Door Speaker, LH
67709-24020-A0 note Grille Sub-assy, Front Door Speaker, LH
2001-01 → 2005-08 ended
UZZ40 —
67709-24020-C0 note Grille Sub-assy, Front Door Speaker, LH
2001-01 → 2005-08 ended
UZZ40 —
67709-24020-D1 note Grille Sub-assy, Front Door Speaker, LH
2004-08 → 2004-09 ended
UZZ40 —
67709-24020-A0 note Grille Sub-assy, Front Door Speaker, LH
2005-08 → —
UZZ40 —
67709-24020-C0 note Grille Sub-assy, Front Door Speaker, LH
2005-08 → —
UZZ40 —
67709-24020-D1 note Grille Sub-assy, Front Door Speaker, LH
2006-08 → 2006-11 ended
UZZ40 —
67709-24020-E0 note Grille Sub-assy, Front Door Speaker, LH
2005-08 → —
UZZ40 —
67625 — Bracket, Front Door Trim, RH
67643-24020 Bracket, Front Door Trim, RH
2001-01 → 2005-08 ended
UZZ40 —
67643-24020 Bracket, Front Door Trim, RH
2005-08 → —
UZZ40 —
67626 — Bracket, Front Door Trim, LH
67644-24010 Bracket, Front Door Trim, LH
2001-01 → 2005-08 ended
UZZ40 —
67644-24010 Bracket, Front Door Trim, LH
2005-08 → —
UZZ40 —
67645 — Bracket, Front Door Armrest Set, RH
67645-24020 Bracket, Front Door Armrest Set, RH
2001-01 → 2005-08 ended
UZZ40 —
67645-24020 Bracket, Front Door Armrest Set, RH
2005-08 → —
UZZ40 —
67646 — Bracket, Front Door Armrest Set, LH
67646-24020 Bracket, Front Door Armrest Set, LH
2001-01 → 2005-08 ended
UZZ40 —
67646-24020 Bracket, Front Door Armrest Set, LH
2005-08 → —
UZZ40 —
67781A — Ornament, Front Door Trim
67781-24130-B0 note Ornament, Front Door Trim
2001-01 → 2005-08 ended
UZZ40 —
67781-24130-E0 note Ornament, Front Door Trim
2001-01 → 2005-08 ended
UZZ40 —
67781-24140-D0 note Ornament, Front Door Trim
2001-11 → 2001-12 ended
UZZ40 —
67781-24150-B0 note Ornament, Front Door Trim
2003-08 → 2003-11 ended
UZZ40 —
67781-24150-C0 note Ornament, Front Door Trim
2004-08 → 2004-09 ended
UZZ40 —
67782-24140-B0 note Ornament, Front Door Trim
2001-01 → 2005-08 ended
UZZ40 —
67782-24140-E0 note Ornament, Front Door Trim
2001-01 → 2005-08 ended
UZZ40 —
67782-24150-D0 note Ornament, Front Door Trim
2001-11 → 2001-12 ended
UZZ40 —
67782-24160-B0 note Ornament, Front Door Trim
2003-08 → 2003-11 ended
UZZ40 —
67782-24160-C0 note Ornament, Front Door Trim
2004-08 → 2004-09 ended
UZZ40 —
67781-24130-B1 note Ornament, Front Door Trim
2006-08 → 2006-11 ended
UZZ40 —
67781-24130-B1 note Ornament, Front Door Trim
2008-08 → 2008-09 ended
UZZ40 —
67781-24130-E0 note Ornament, Front Door Trim
2005-08 → —
UZZ40 —
67781-24130-E1 note Ornament, Front Door Trim
2007-08 → 2007-11 ended
UZZ40 —
67781-24130-E1 note Ornament, Front Door Trim
2005-08 → —
UZZ40 —
67782-24140-B1 note Ornament, Front Door Trim
2006-08 → 2006-11 ended
UZZ40 —
67782-24140-B1 note Ornament, Front Door Trim
2008-08 → 2008-09 ended
UZZ40 —
67782-24140-E0 note Ornament, Front Door Trim
2005-08 → —
UZZ40 —
67782-24140-E1 note Ornament, Front Door Trim
2007-08 → 2007-11 ended
UZZ40 —
67782-24140-E1 note Ornament, Front Door Trim
2005-08 → —
UZZ40 —
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-24020 Weatherstrip, Front Door Glass, Inner RH
2001-01 → 2003-12 ended
UZZ40 —
68171-24021 Weatherstrip, Front Door Glass, Inner RH
2003-12 → 2004-06 ended
UZZ40 —
68171-24021 Weatherstrip, Front Door Glass, Inner RH
2004-07 → 2005-08 ended
UZZ40 —
68171-24021 Weatherstrip, Front Door Glass, Inner RH
2005-08 → —
UZZ40 —
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-24020 Weatherstrip, Front Door Glass, Inner LH
2001-01 → 2003-12 ended
UZZ40 —
68172-24021 Weatherstrip, Front Door Glass, Inner LH
2003-12 → 2004-06 ended
UZZ40 —
68172-24021 Weatherstrip, Front Door Glass, Inner LH
2004-07 → 2005-08 ended
UZZ40 —
68172-24021 Weatherstrip, Front Door Glass, Inner LH
2005-08 → —
UZZ40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
