Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

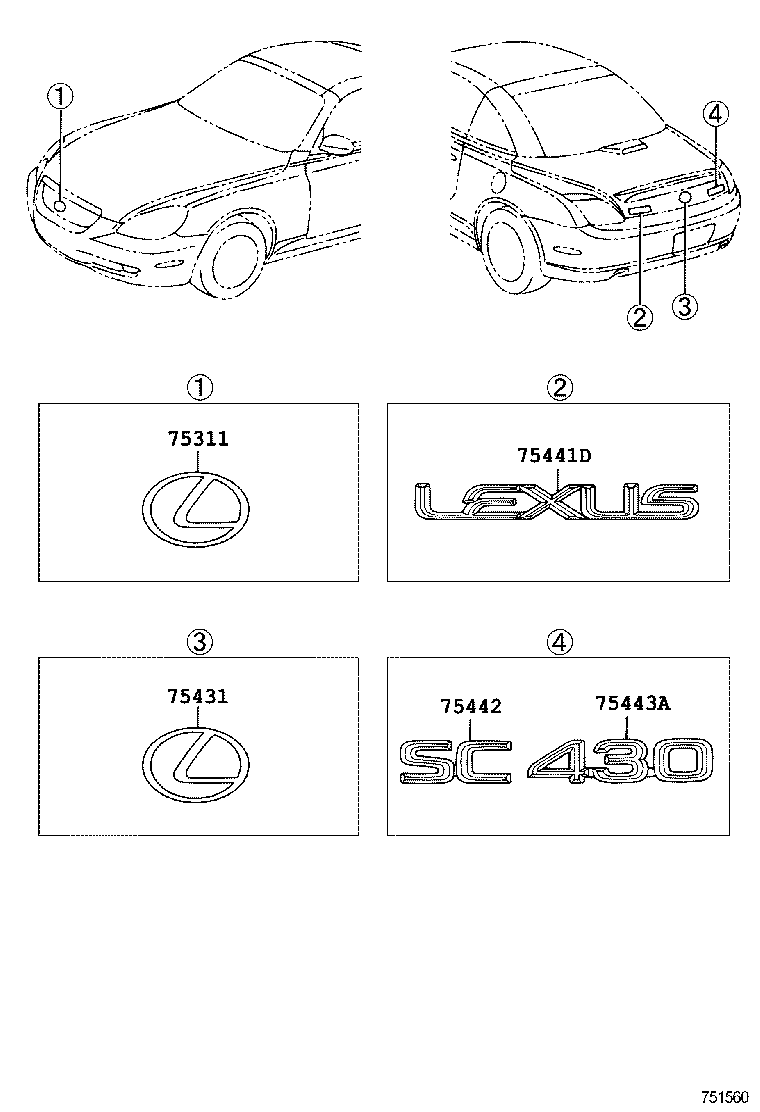

Exploded illustration 751560 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (2 parts) 75441D — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1 (2 parts) 75442 — PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2 (2 parts) 75443A — PLATE, LUGGAGE COMPARTMENT DOOR, NO.3 (2 parts) 75431 — EMBLEM, LUGGAGE COMPARTMENT DOOR (2 parts)
751560 · 5 callouts Full size ↗
10 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
90975-02028 Emblem, Radiator Grille (OR FRONT PANEL)
2001-01 → 2005-08 ended
UZZ40 —
90975-02081 Emblem, Radiator Grille (OR FRONT PANEL)
2005-08 → 2010-07 ended
UZZ40 —
75431 — Emblem, Luggage Compartment Door
90975-02026 Emblem, Luggage Compartment Door
2001-01 → 2005-08 ended
UZZ40 —
90975-02026 Emblem, Luggage Compartment Door
2005-08 → 2010-07 ended
UZZ40 —
75441D — Plate, Luggage Compartment Door Name, NO.1
75441-24050 note Plate, Luggage Compartment Door Name, NO.1
2001-01 → 2005-08 ended
UZZ40 —
75441-24050 note Plate, Luggage Compartment Door Name, NO.1
2005-08 → 2010-07 ended
UZZ40 —
75442 — Plate, Luggage Compartment Door Name, NO.2
75442-24030 note Plate, Luggage Compartment Door Name, NO.2
2001-01 → 2005-08 ended
UZZ40 —
75442-24030 note Plate, Luggage Compartment Door Name, NO.2
2005-08 → 2010-07 ended
UZZ40 —
75443A — Plate, Luggage Compartment Door, NO.3
75443-24110 note Plate, Luggage Compartment Door, NO.3
2001-01 → 2005-08 ended
UZZ40 —
75443-24110 note Plate, Luggage Compartment Door, NO.3
2005-08 → 2010-07 ended
UZZ40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
