Toyota Lexus SC430

2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

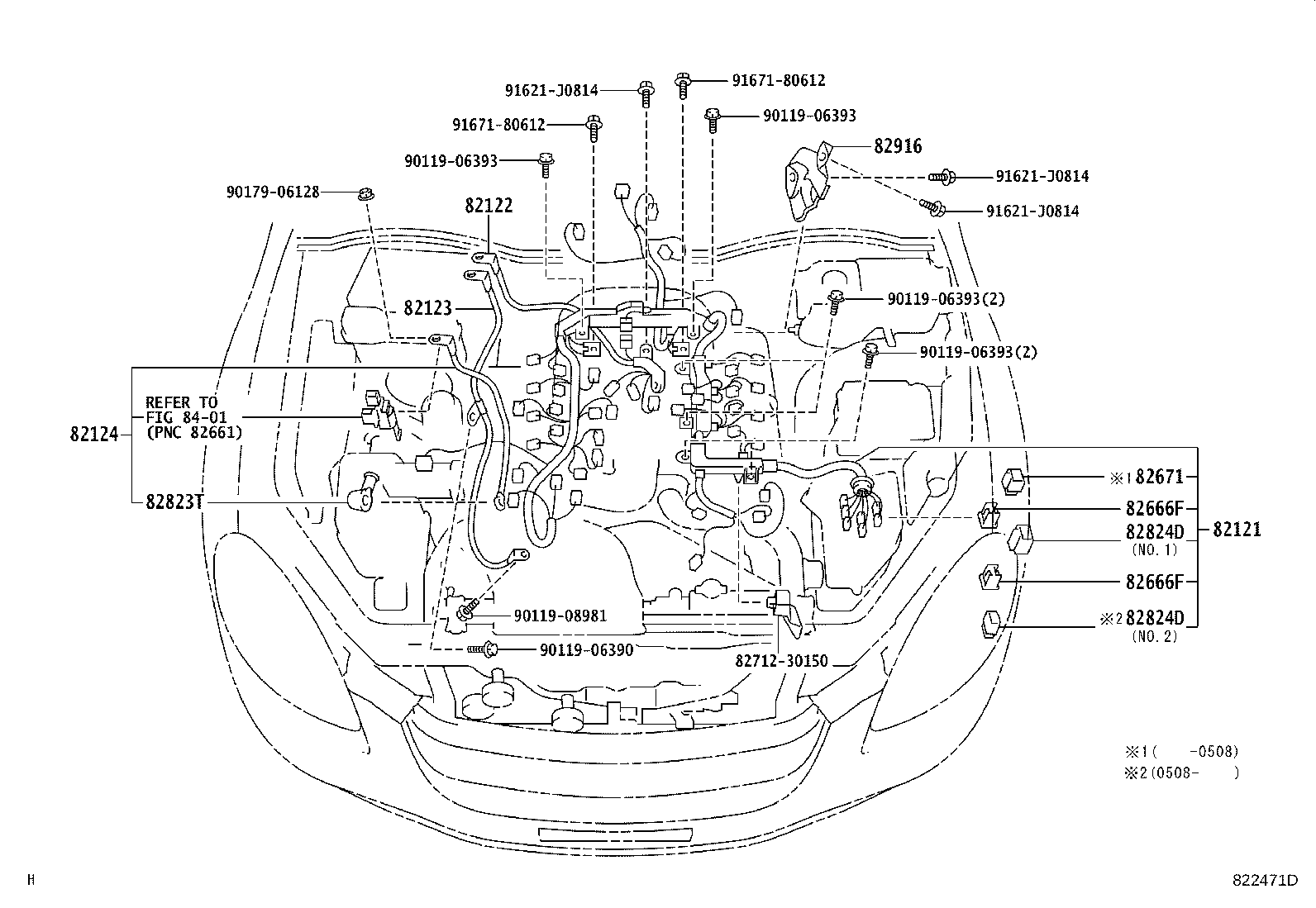

Exploded illustration 822471D 82916 — INSULATOR, WIRING HARNESS HEAT, NO.2 (2 parts) 9011906393 — not listed in this catalogue 9011906393 — not listed in this catalogue 9167180612 — not listed in this catalogue 9167180612 — not listed in this catalogue 91621J0814 — not listed in this catalogue 9017906128 — not listed in this catalogue 91621J0814 — not listed in this catalogue 91621J0814 — not listed in this catalogue 9011906393 — not listed in this catalogue 9011906393 — not listed in this catalogue 82121 — WIRE, ENGINE (3 parts) 82671 — BLOCK, JUNCTION (1 parts) 82666F — HOLDER, CONNECTOR NO.7 (2 parts) 82666F — HOLDER, CONNECTOR NO.7 (2 parts) 82824D — CONNECTOR, WIRING HARNESS (3 parts) 82824D — CONNECTOR, WIRING HARNESS (3 parts) 8271230150 — not listed in this catalogue 9011906390 — not listed in this catalogue 9011908981 — not listed in this catalogue 82823T — CAP, ALTERNATOR TERMINAL (2 parts) 82124 — WIRE, ENGINE, NO.4 (3 parts) 82122 — WIRE, ENGINE, NO.2 (2 parts) 82123 — WIRE, ENGINE, NO.3 (2 parts) 8401 — not listed in this catalogue
822471D · 11 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
82121 — Wire, Engine
82121-3A372 Wire, Engine
2001-01 → 2004-06 ended
UZZ40 5FC —
82121-3A373 Wire, Engine
2004-06 → 2005-08 ended
UZZ40 —
82121-24800 Wire, Engine
2005-08 → —
UZZ40 —
82122 — Wire, Engine, NO.2
82122-24340 Wire, Engine, NO.2
2001-01 → 2005-08 ended
UZZ40 —
82122-24341 Wire, Engine, NO.2
2005-08 → —
UZZ40 —
82123 — Wire, Engine, NO.3
82123-24040 Wire, Engine, NO.3
2001-01 → 2005-08 ended
UZZ40 —
82123-24040 Wire, Engine, NO.3
2005-08 → —
UZZ40 —
82124 — Wire, Engine, NO.4
82124-24010 Wire, Engine, NO.4
2001-01 → 2001-05 ended
UZZ40 5FC —
82124-24011 Wire, Engine, NO.4
2001-05 → 2005-08 ended
UZZ40 —
82124-24011 Wire, Engine, NO.4
2005-08 → —
UZZ40 —
82666F — Holder, Connector NO.7
82666-30670 Holder, Connector NO.7
2001-01 → 2005-08 ended
UZZ40 —
82666-30670 Holder, Connector NO.7
2005-08 → —
UZZ40 —
82671 — Block, Junction
82671-30350 Block, Junction
2001-01 → 2005-08 ended
UZZ40 —
82823T — Cap, Alternator Terminal
82823-22070 Cap, Alternator Terminal
2001-05 → 2005-08 ended
UZZ40 —
82823-22070 Cap, Alternator Terminal
2005-08 → 2010-07 ended
UZZ40 —
82824D — Connector, Wiring Harness
82824-22070 note Connector, Wiring Harness
2001-01 → 2005-08 ended
UZZ40 —
82824-22070 note Connector, Wiring Harness
2005-08 → —
UZZ40 —
82824-30220 note Connector, Wiring Harness
2005-08 → —
UZZ40 —
82916 — Insulator, Wiring Harness Heat, NO.2
82916-50020 Insulator, Wiring Harness Heat, NO.2
2001-01 → 2005-08 ended
UZZ40 —
82916-50020 Insulator, Wiring Harness Heat, NO.2
2005-08 → —
UZZ40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
