Toyota Lexus SC430
2001-01 → 2010-07 · chassis UZZ40 · catalogue 321450 · United States
Discontinued model
Data version 2011-01

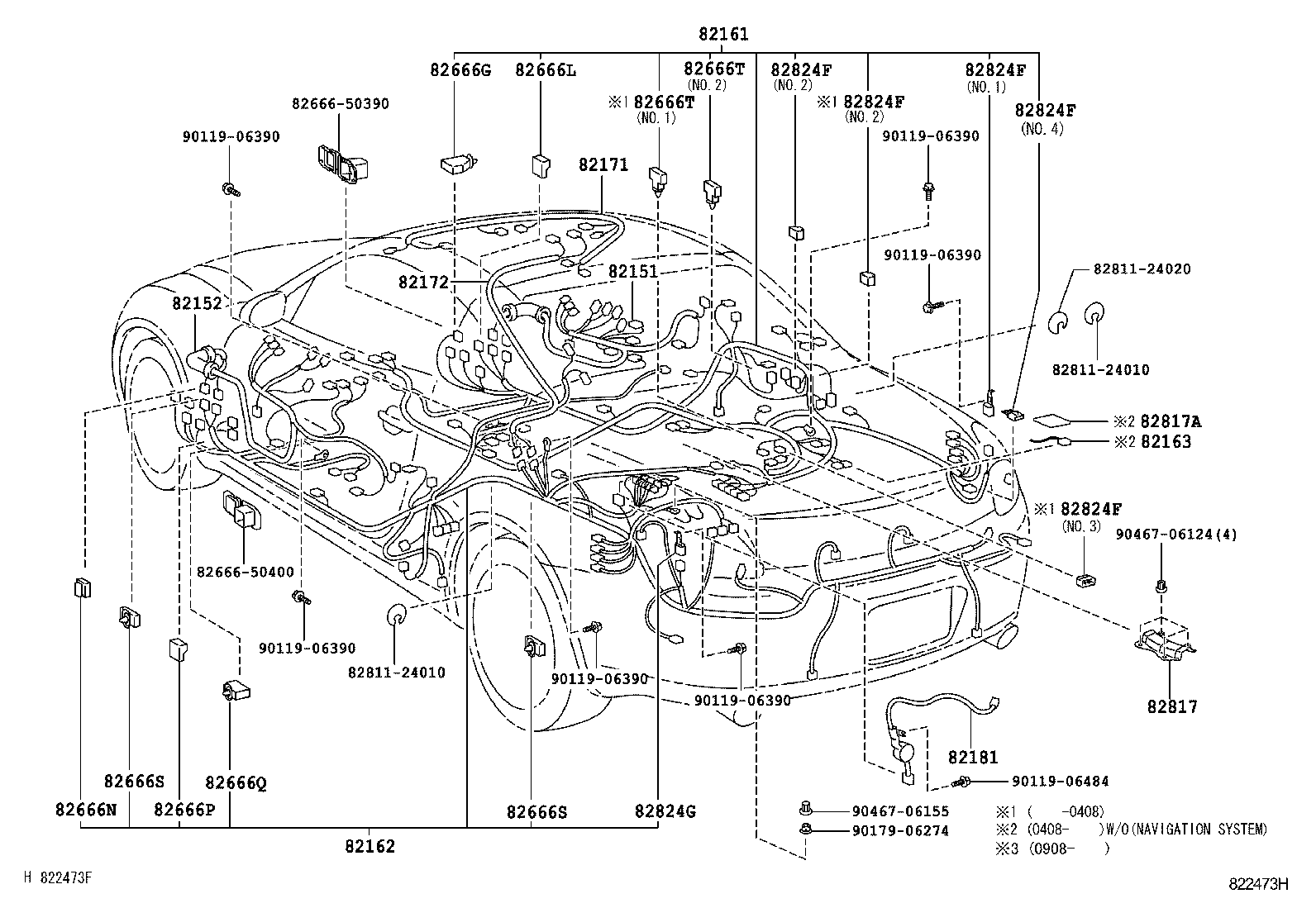

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82151 — Wire, Front Door, RH | ||||
| 82151-24310 |
Wire, Front Door, RH
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82151-24310 |
Wire, Front Door, RH
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82151-24311 |
Wire, Front Door, RH
2006-08 → 2007-07
ended
|
UZZ40 | — | |
| 82151-24312 |
Wire, Front Door, RH
2007-08 → 2008-08
ended
|
UZZ40 | — | |
| 82151-24313 |
Wire, Front Door, RH
2008-08 → 2009-08
ended
|
UZZ40 | — | |
| 82151-24314 |
Wire, Front Door, RH
2009-08 → —
|
UZZ40 | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82152-24210 |
Wire, Front Door, LH
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82152-24210 |
Wire, Front Door, LH
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82152-24211 |
Wire, Front Door, LH
2006-08 → 2007-07
ended
|
UZZ40 | — | |
| 82152-24212 |
Wire, Front Door, LH
2007-08 → 2008-08
ended
|
UZZ40 | — | |
| 82152-24213 |
Wire, Front Door, LH
2008-08 → 2009-08
ended
|
UZZ40 | — | |
| 82152-24214 |
Wire, Front Door, LH
2009-08 → —
|
UZZ40 | — | |
| 82161 — Wire, Floor | ||||
| 82161-24590 |
Wire, Floor
2001-01 → 2002-08
ended
|
UZZ40 5FC | — | |
| 82161-24591 |
Wire, Floor
2002-08 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82161-24600 note |
Wire, Floor
2001-01 → 2001-04
ended
|
UZZ40 5FC | — | |
| 82161-24601 note |
Wire, Floor
2001-04 → 2002-08
ended
|
UZZ40 5FC | — | |
| 82161-24602 note |
Wire, Floor
2002-08 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82161-24603 |
Wire, Floor
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82161-24610 note |
Wire, Floor
2001-01 → 2001-11
ended
|
UZZ40 5FC | — | |
| 82161-24604 |
Wire, Floor
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82161-24605 note |
Wire, Floor
2006-08 → 2007-07
ended
|
UZZ40 | — | |
| 82161-24606 note |
Wire, Floor
2007-08 → 2008-08
ended
|
UZZ40 | — | |
| 82161-24607 note |
Wire, Floor
2008-08 → 2009-08
ended
|
UZZ40 | — | |
| 82161-24608 note |
Wire, Floor
2009-08 → —
|
UZZ40 | — | |
| 82161-24690 |
Wire, Floor
2006-08 → 2007-07
ended
|
UZZ40 | — | |
| 82161-24691 |
Wire, Floor
2007-08 → 2008-08
ended
|
UZZ40 | — | |
| 82161-24692 |
Wire, Floor
2008-08 → 2009-08
ended
|
UZZ40 | — | |
| 82161-24693 note |
Wire, Floor
2009-08 → —
|
UZZ40 | — | |
| 82161-24740 |
Wire, Floor
2009-08 → —
|
UZZ40 | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-24180 |
Wire, Floor, NO.2
2001-01 → 2002-08
ended
|
UZZ40 5FC | — | |
| 82162-24181 |
Wire, Floor, NO.2
2002-08 → 2005-08
ended
|
UZZ40 | — | |
| 82162-24182 |
Wire, Floor, NO.2
2005-08 → 2006-08
ended
|
UZZ40 | — | |
| 82162-24183 |
Wire, Floor, NO.2
2006-08 → 2007-07
ended
|
UZZ40 | — | |
| 82162-24184 |
Wire, Floor, NO.2
2007-08 → 2008-08
ended
|
UZZ40 | — | |
| 82162-24185 |
Wire, Floor, NO.2
2008-08 → 2009-08
ended
|
UZZ40 | — | |
| 82162-24186 |
Wire, Floor, NO.2
2009-08 → —
|
UZZ40 | — | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-24280 |
Wire, Floor, NO.3
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82163-24280 |
Wire, Floor, NO.3
2005-08 → —
|
UZZ40 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-24190 |
Wire, Roof, NO.1
2001-01 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82171-24191 |
Wire, Roof, NO.1
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82171-24191 |
Wire, Roof, NO.1
2005-08 → —
|
UZZ40 | — | |
| 82172 — Wire, Roof, NO.2 | ||||
| 82172-24100 |
Wire, Roof, NO.2
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82172-24100 |
Wire, Roof, NO.2
2005-08 → —
|
UZZ40 | — | |
| 82181 — Wire, Luggage Room, NO.1 | ||||
| 82181-24050 |
Wire, Luggage Room, NO.1
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82181-24050 |
Wire, Luggage Room, NO.1
2005-08 → —
|
UZZ40 | — | |
| 82666G — Holder, Connector NO.8 | ||||
| 82666-26080 |
Holder, Connector NO.8
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-26080 |
Holder, Connector NO.8
2005-08 → —
|
UZZ40 | — | |
| 82666L — Holder, Connector NO.9 | ||||
| 82666-42020 |
Holder, Connector NO.9
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-42020 |
Holder, Connector NO.9
2005-08 → —
|
UZZ40 | — | |
| 82666N — Holder, Connector NO.10 | ||||
| 82666-21040 |
Holder, Connector NO.10
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-21040 |
Holder, Connector NO.10
2005-08 → —
|
UZZ40 | — | |
| 82666P — Holder, Connector NO.11 | ||||
| 82666-26080 |
Holder, Connector NO.11
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-26080 |
Holder, Connector NO.11
2005-08 → —
|
UZZ40 | — | |
| 82666Q — Holder, Connector NO.12 | ||||
| 82666-42020 |
Holder, Connector NO.12
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-42020 |
Holder, Connector NO.12
2005-08 → —
|
UZZ40 | — | |
| 82666S — Holder, Connector NO.13 | ||||
| 82666-60030 |
Holder, Connector NO.13
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82666-60030 |
Holder, Connector NO.13
2005-08 → —
|
UZZ40 | — | |
| 82666T — Holder, Connector NO.14 | ||||
| 82666-20270 note |
Holder, Connector NO.14
2001-04 → 2005-08
ended
|
UZZ40 | — | |
| 82666-20270 note |
Holder, Connector NO.14
2001-01 → 2001-04
ended
|
UZZ40 5FC | — | |
| 82666-60030 note |
Holder, Connector NO.14
2001-04 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82666-20270 note |
Holder, Connector NO.14
2005-08 → —
|
UZZ40 | — | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 58168-24010 |
Protector, Wiring Harness, NO.1
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 58168-24010 |
Protector, Wiring Harness, NO.1
2005-08 → 2008-03
ended
|
UZZ40 | — | |
| 58168-24011 |
Protector, Wiring Harness, NO.1
2008-04 → —
|
UZZ40 | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-24760 |
Protector, Wiring Harness, NO.2
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82817-24760 |
Protector, Wiring Harness, NO.2
2005-08 → —
|
UZZ40 | — | |
| 82824F — Connector, Wiring Harness | ||||
| 82824-16040 note |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-22070 note |
Connector, Wiring Harness
2004-08 → 2005-08
ended
|
UZZ40 | — | |
| 82824-22080 note |
Connector, Wiring Harness
2001-01 → 2004-08
ended
|
UZZ40 5FC | — | |
| 90980-11911 note |
Connector, Wiring Harness
2002-08 → 2004-08
ended
|
UZZ40 5FC | — | |
| 82824-16040 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-22070 note |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
| 82824-30130 note |
Connector, Wiring Harness
2009-08 → —
|
UZZ40 | — | |
| 82824G — Connector, Wiring Harness | ||||
| 82824-16040 |
Connector, Wiring Harness
2001-01 → 2005-08
ended
|
UZZ40 | — | |
| 82824-16040 |
Connector, Wiring Harness
2005-08 → —
|
UZZ40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
